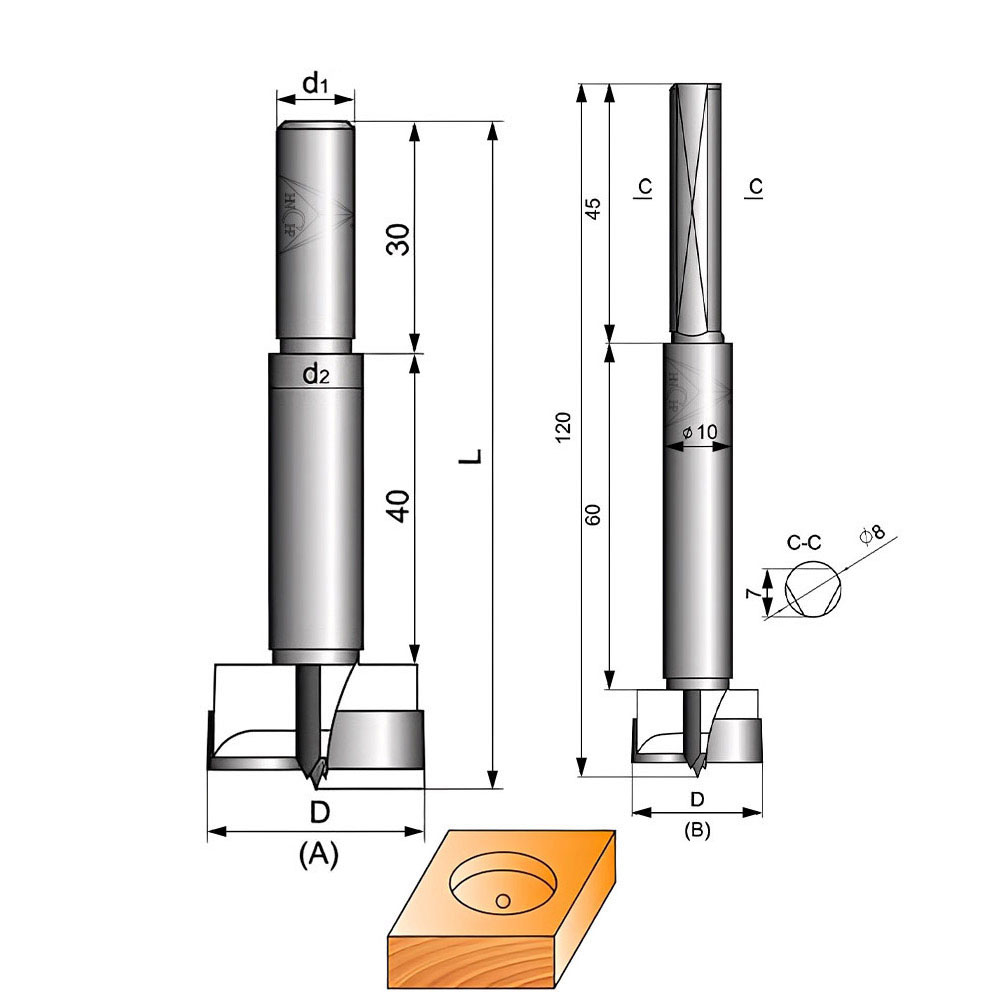

Profile Drawing

CNC Machine

Drill Press

Hand Held Drill

CHP17190 - Carbide Tipped Forstner Bit (Industrial Grade)

Product Overview

Conquer High Precision Tools manufactures high-performance wood boring and drilling bits engineered for precision, durability, and consistent hole-making performance.

Each bit features a hardened steel body for enhanced strength and stability, combined with premium ultra-fine grain carbide cutting edges for long-lasting sharpness and reliable drilling efficiency. Designed for clean entry, stable cutting, and accurate hole dimensions across a wide range of woodworking and industrial applications.

CHP17190 - Carbide Tipped Forstner Bit (Industrial Grade) is a precision drill bit designed for stable performance, durability, and consistent results in professional drilling and boring applications.

Suitable Materials

Wood and Wood-Based Materials: Solid wood, softwood, hardwood, plywood, MDF, HDF, particleboard, melamine boards, laminated panels, veneer

Engineered and Laminated Surfaces: HPL (High-Pressure Laminate), CPL (Continuous Pressure Laminate), compact laminate, phenolic resin boards

Abrasive and Composite Materials: Fiber-reinforced composite materials, abrasive panels, artificial stone, solid surface materials, composite or synthetic panels

Plastics and Non-Metallics: Acrylic, PVC, polycarbonate (PC), PETG, ABS, composite panels, artificial stone, solid surface materials

Non-Ferrous Metals: Aluminum, brass, copper, bronze

Get a Quote

Technical Specifications

CHP17190 - Carbide Tipped Forstner Bit (Industrial Grade)

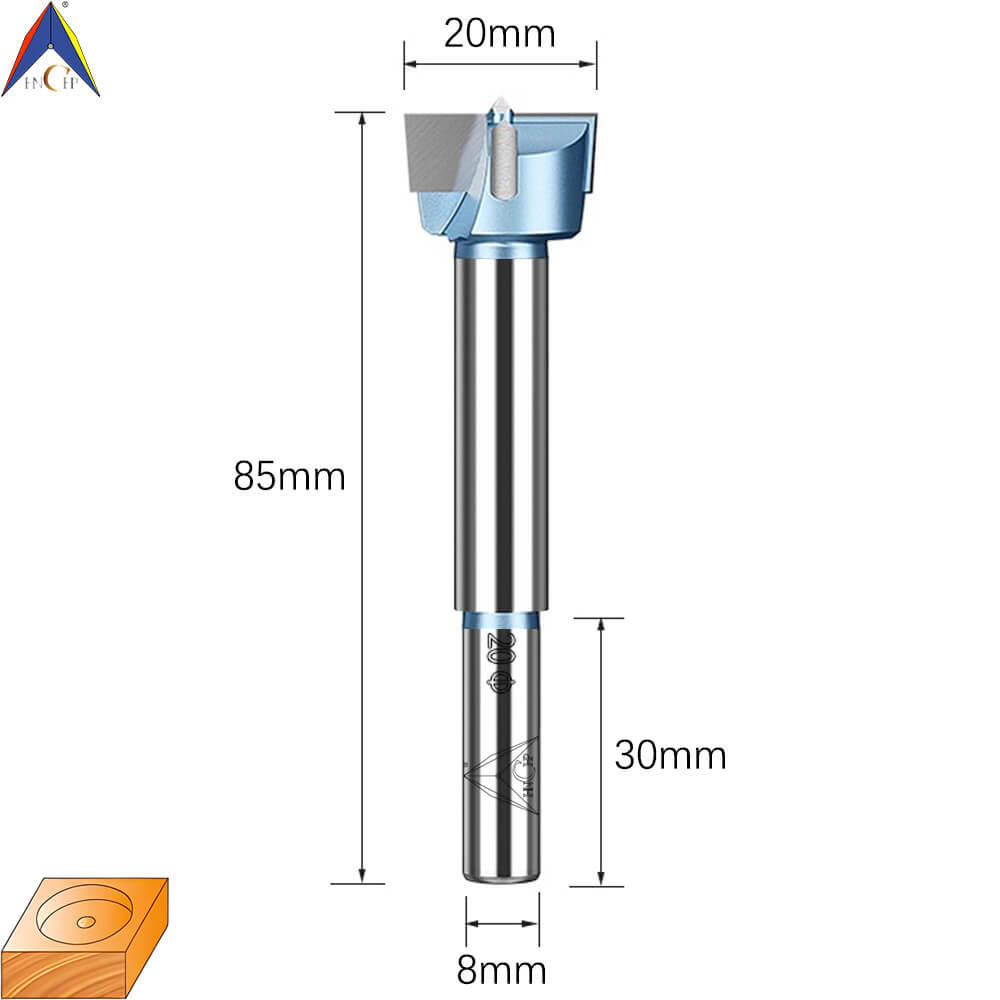

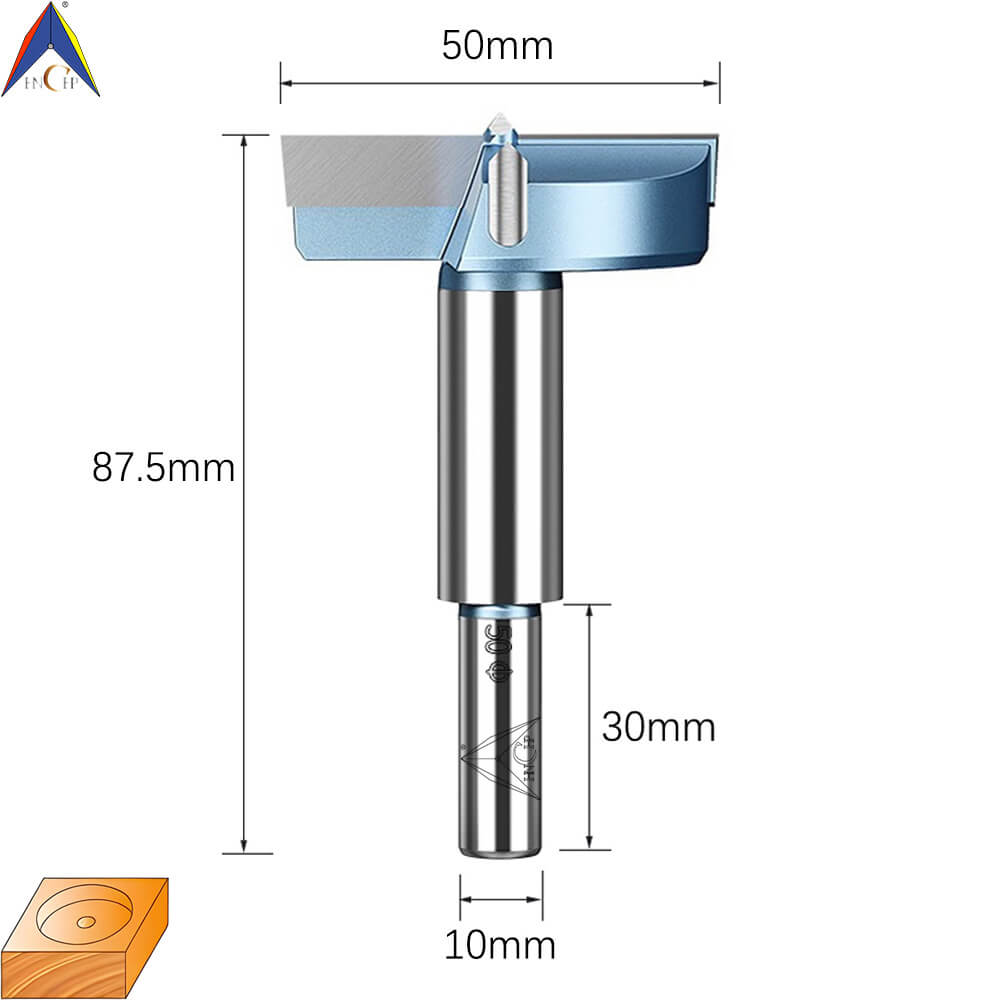

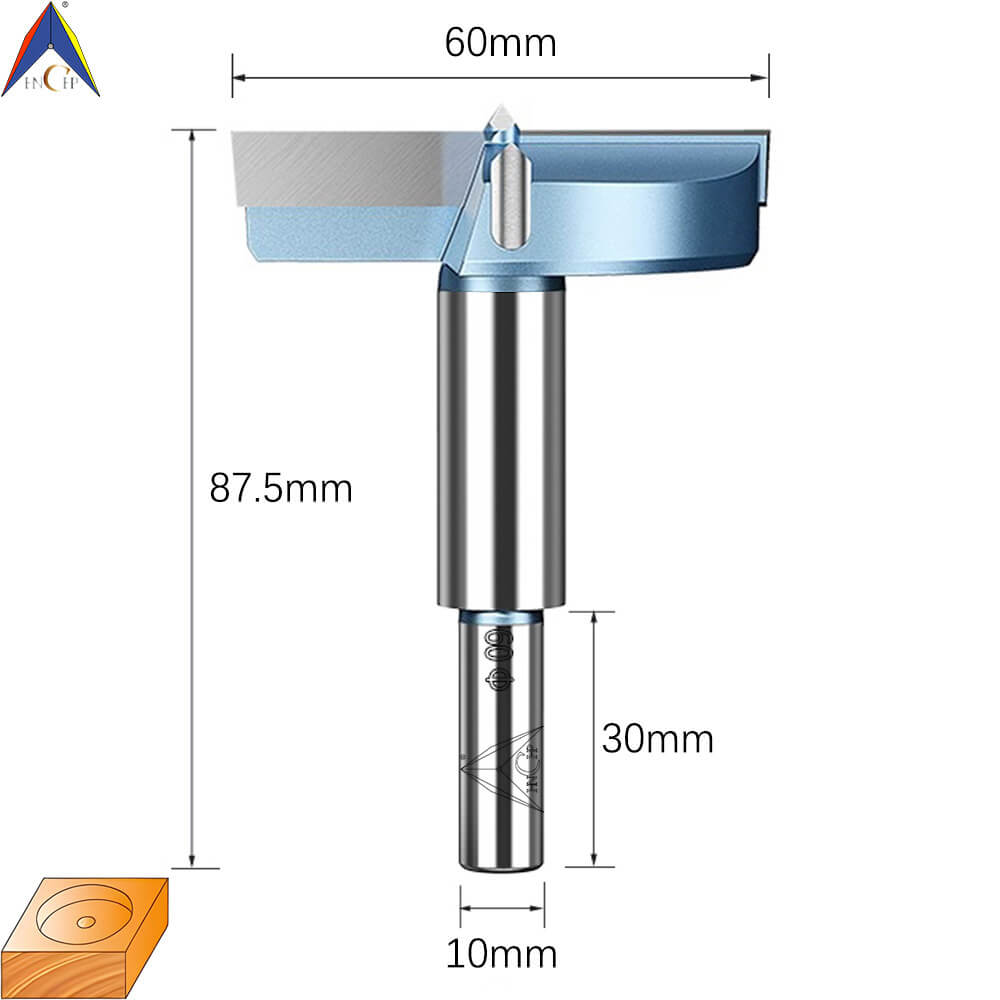

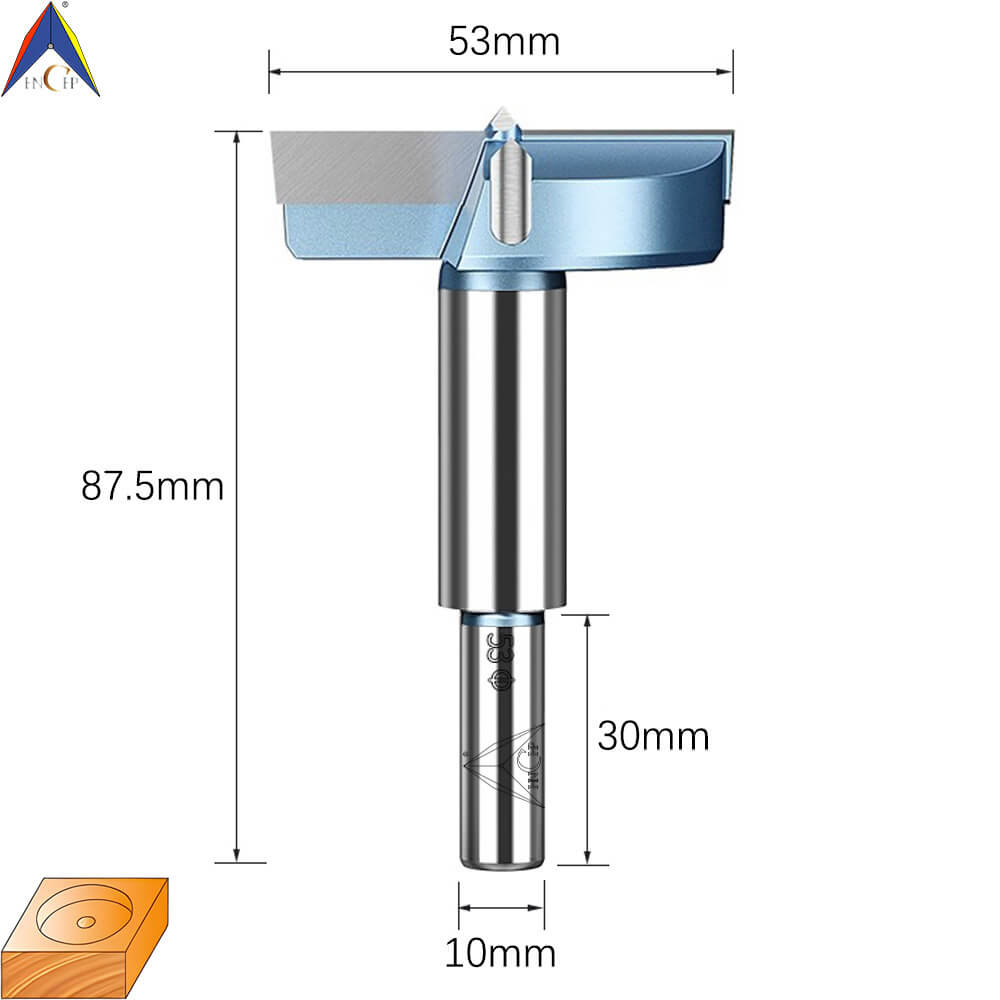

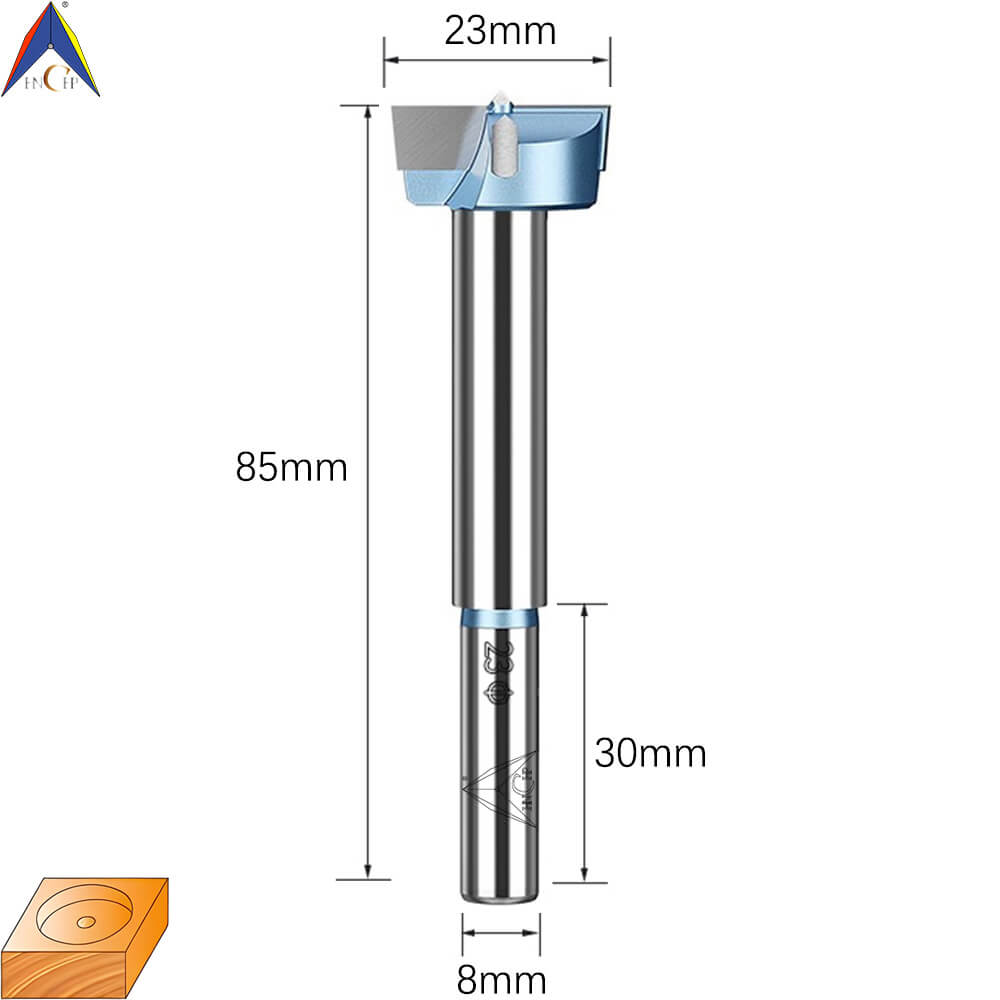

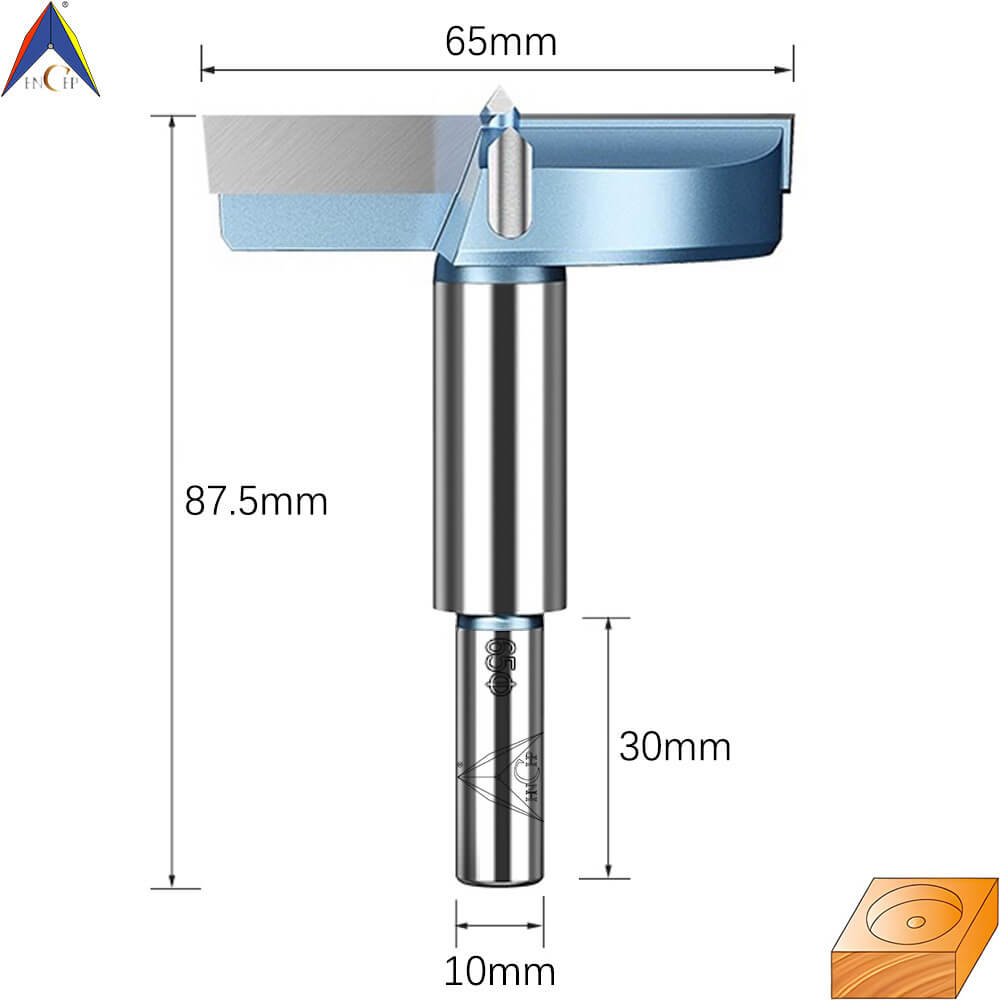

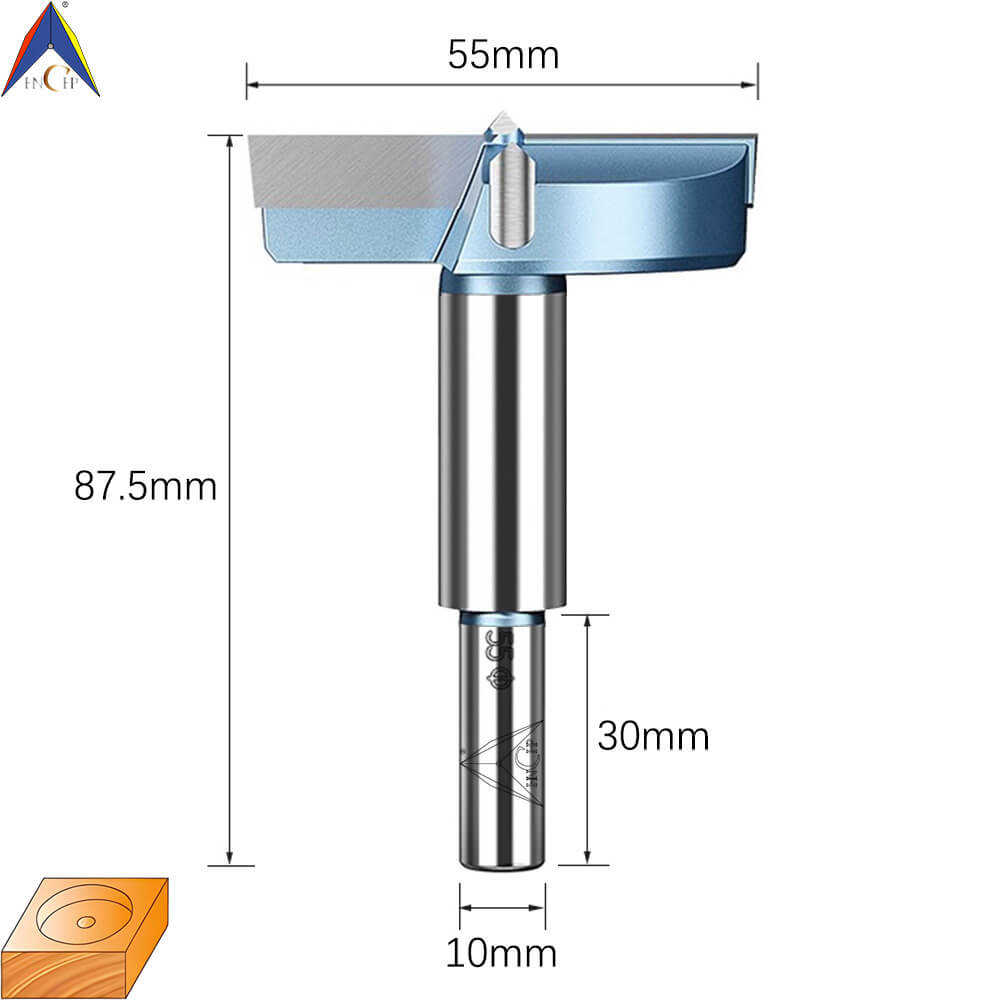

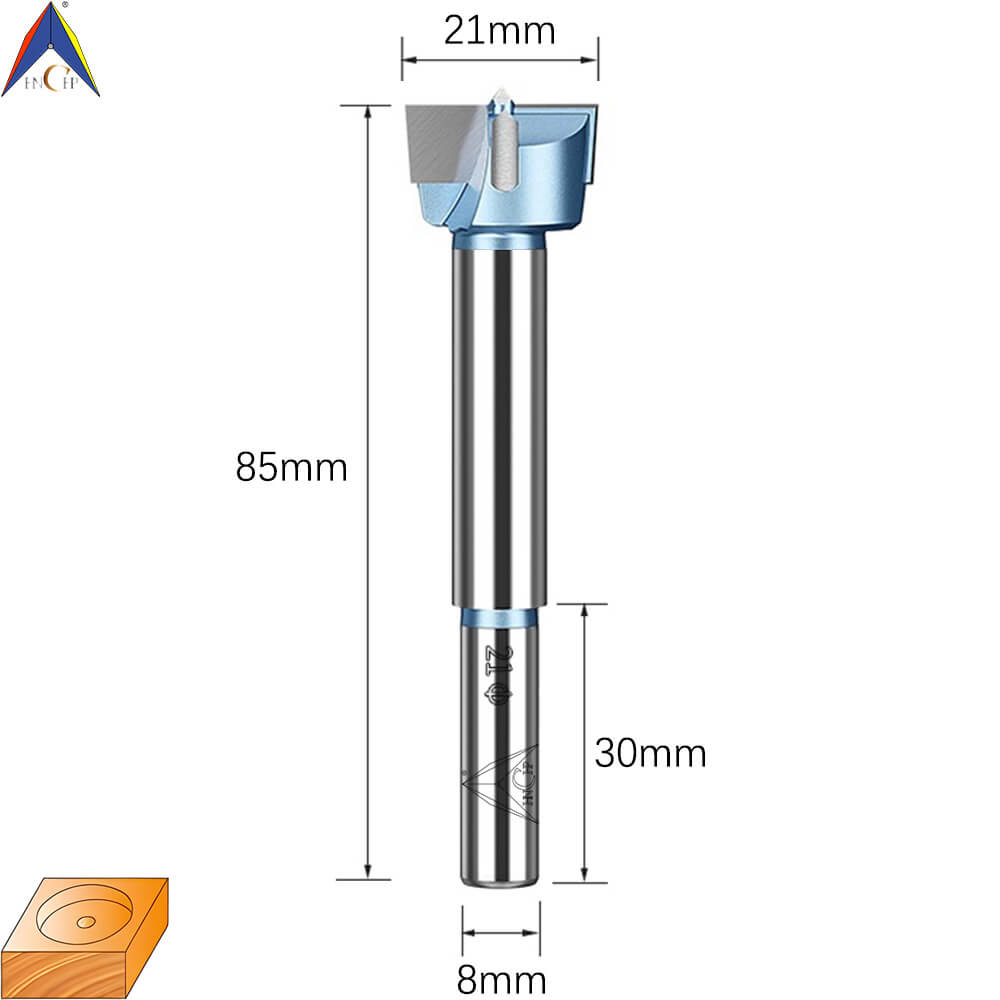

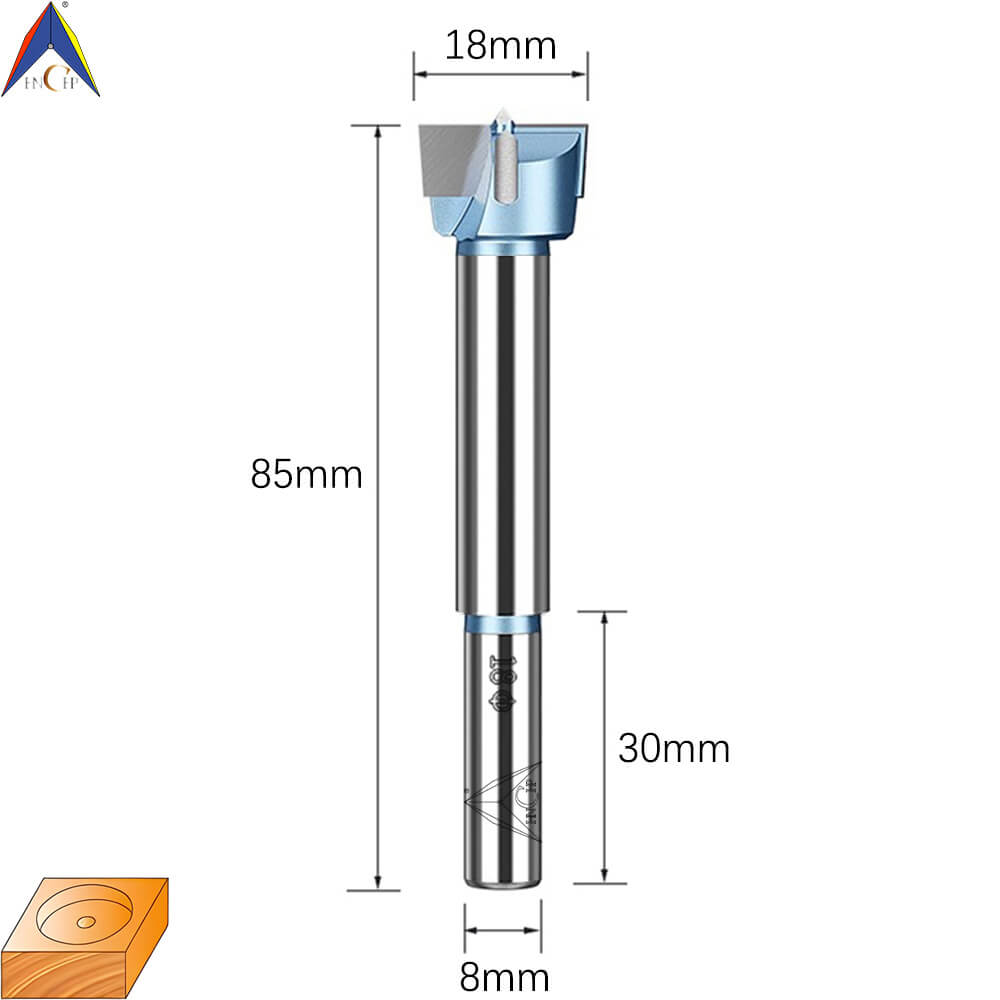

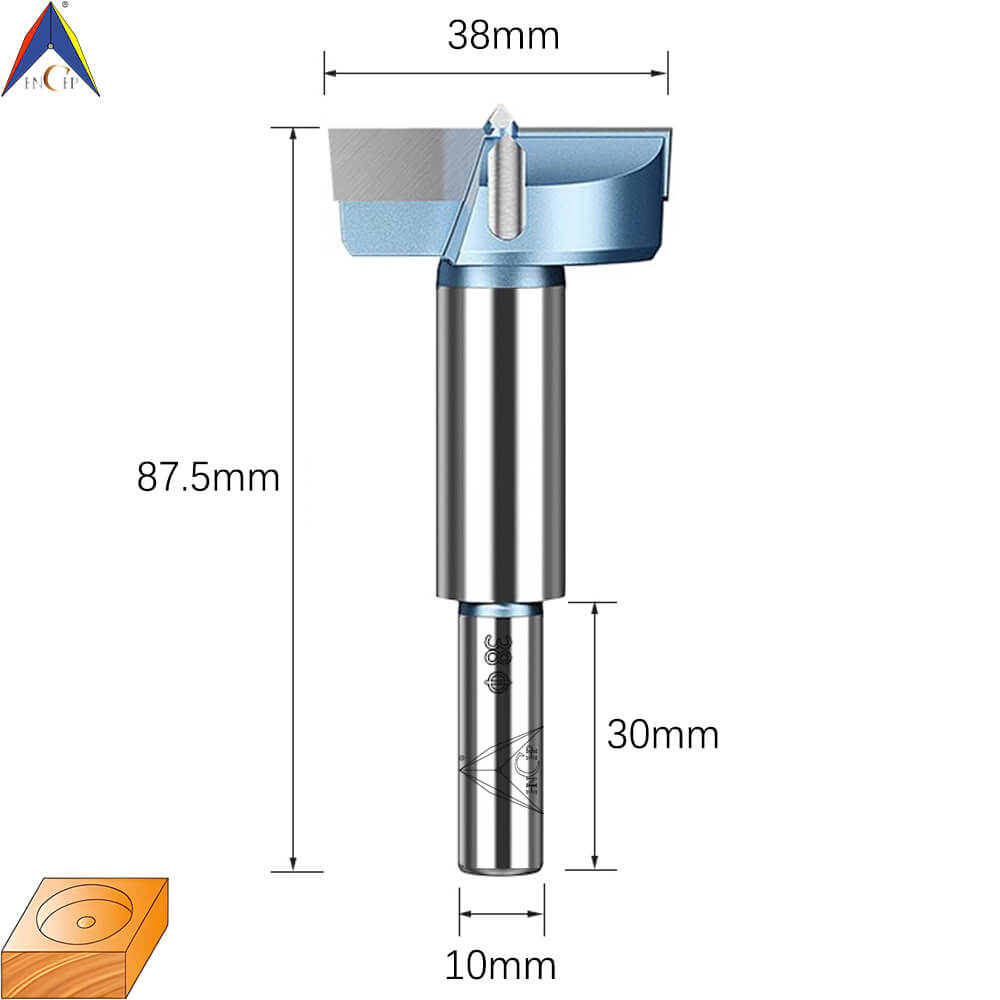

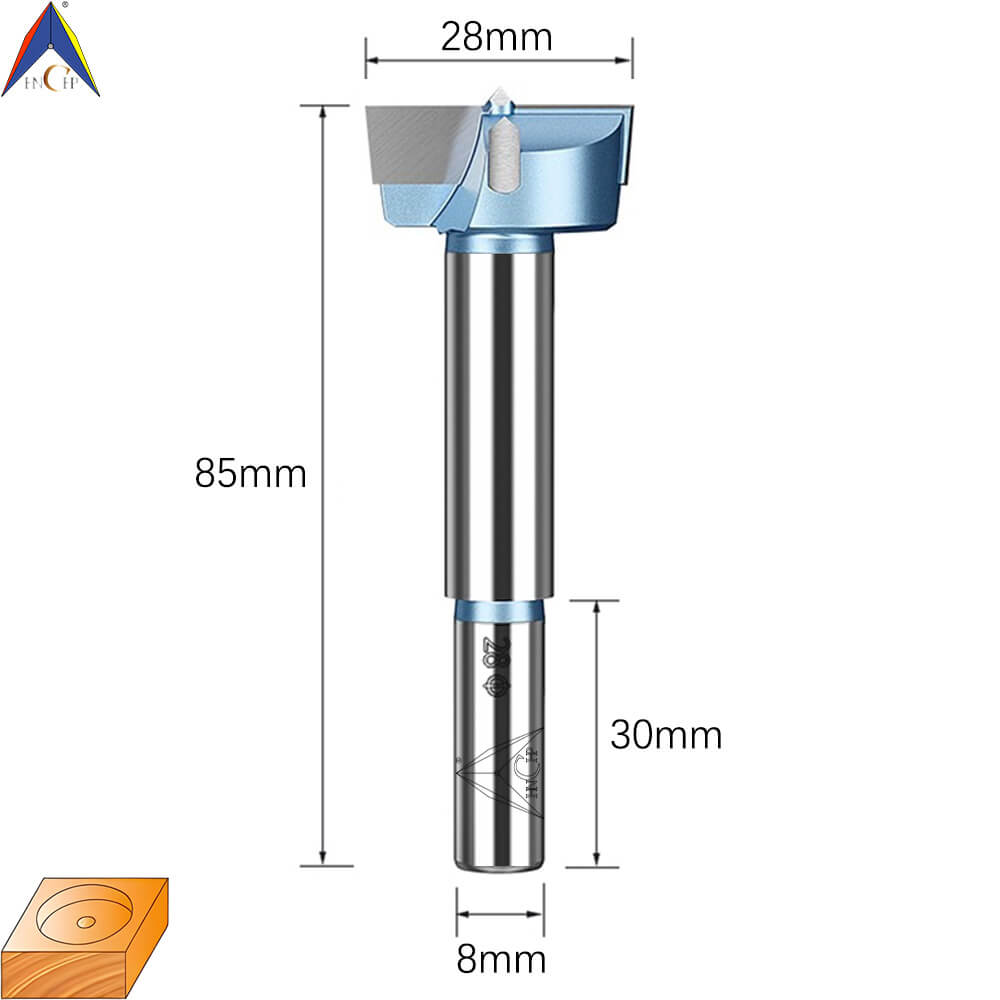

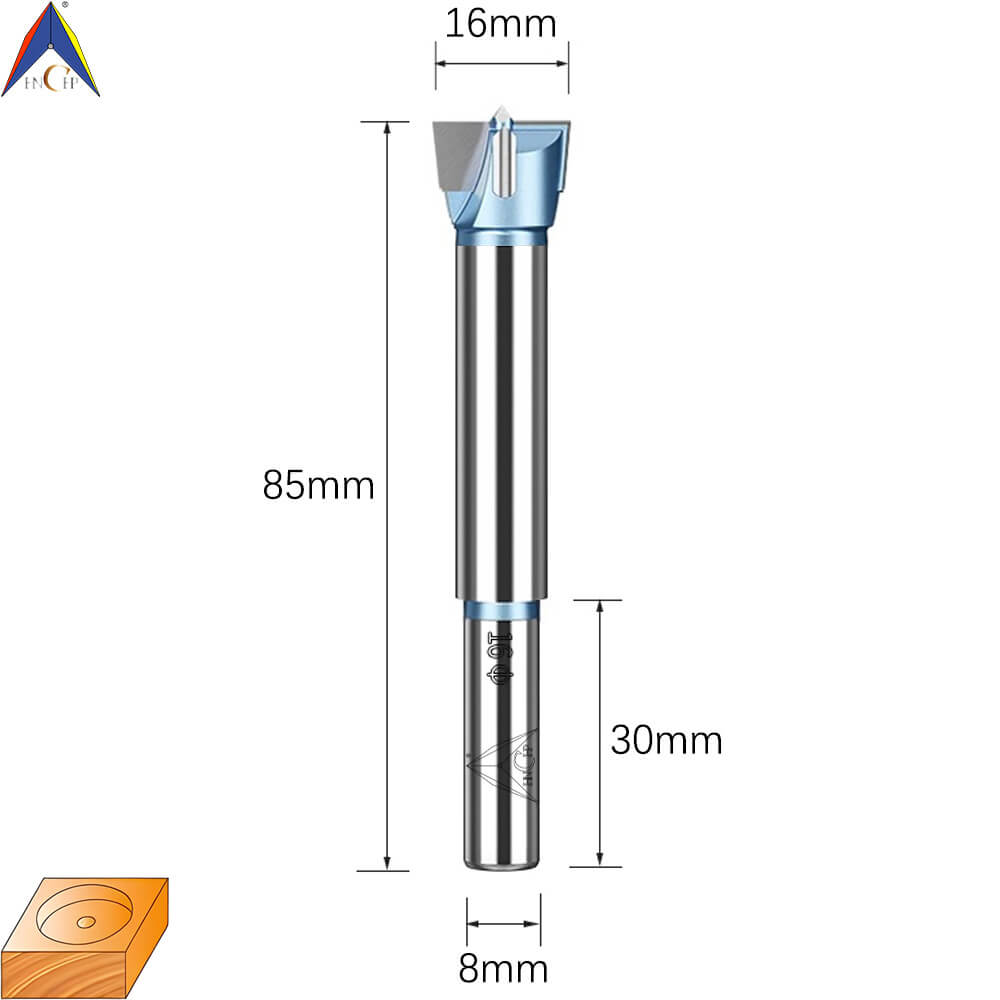

Part No.	Z	D	d1	d2	L

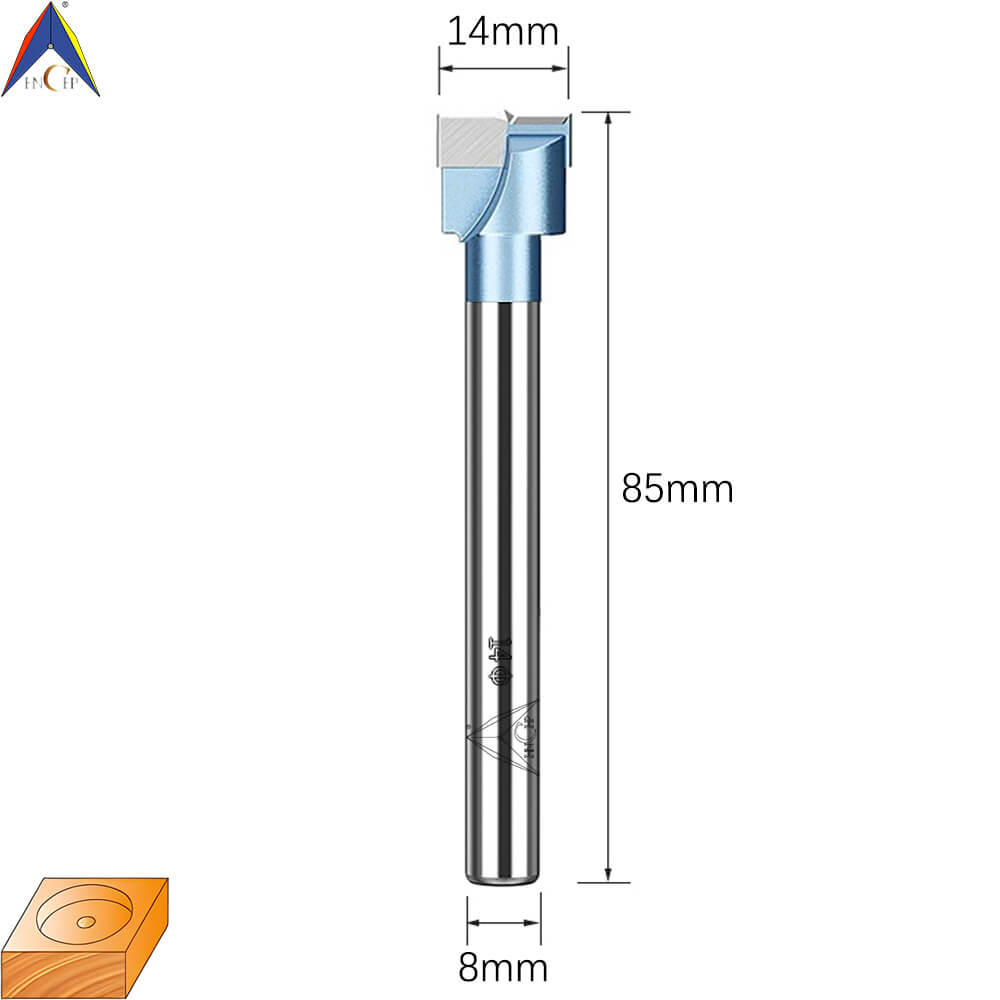

CHP171901014	2	14.00	8.00	10.00	85.00
CHP171901015	2	15.00	8.00	10.00	85.00
CHP171901016	2	16.00	8.00	10.00	85.00
CHP171901018	2	18.00	8.00	10.00	85.00

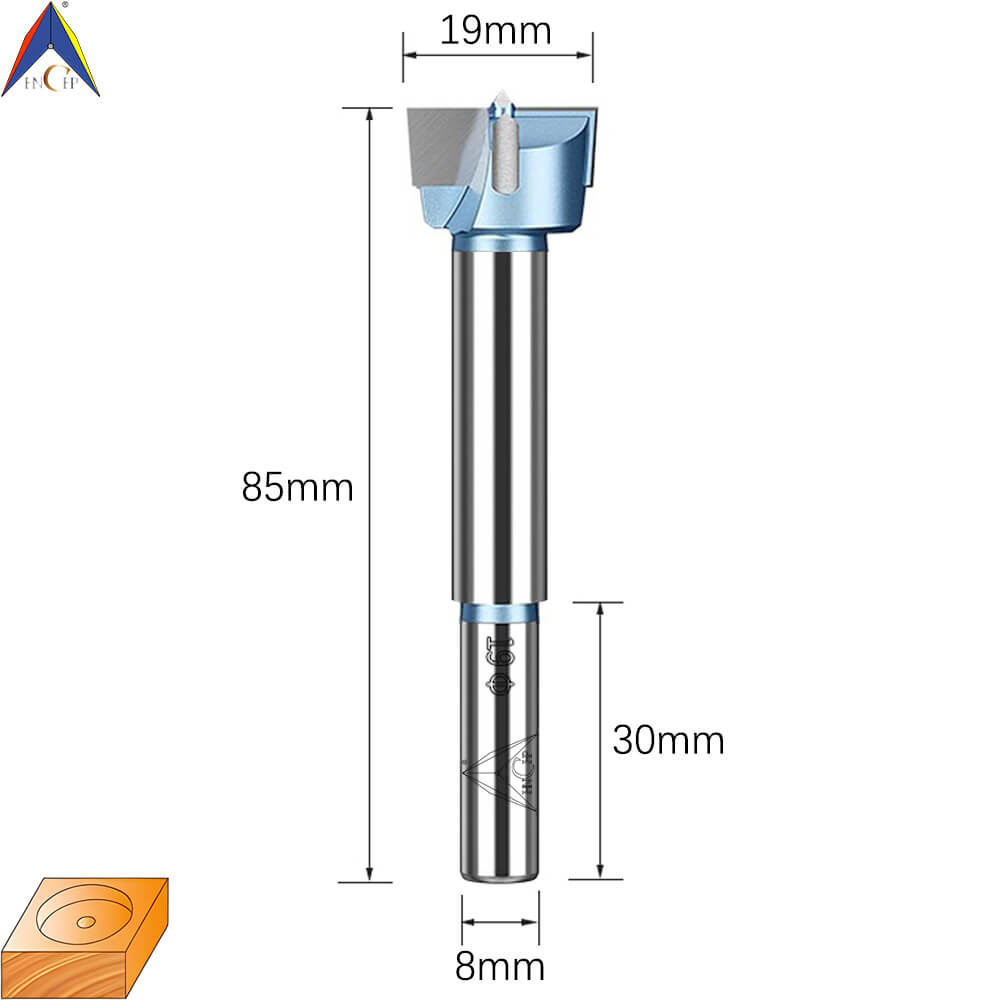

CHP171901019	2	19.00	8.00	10.00	85.00
CHP171901020	2	20.00	8.00	10.00	85.00

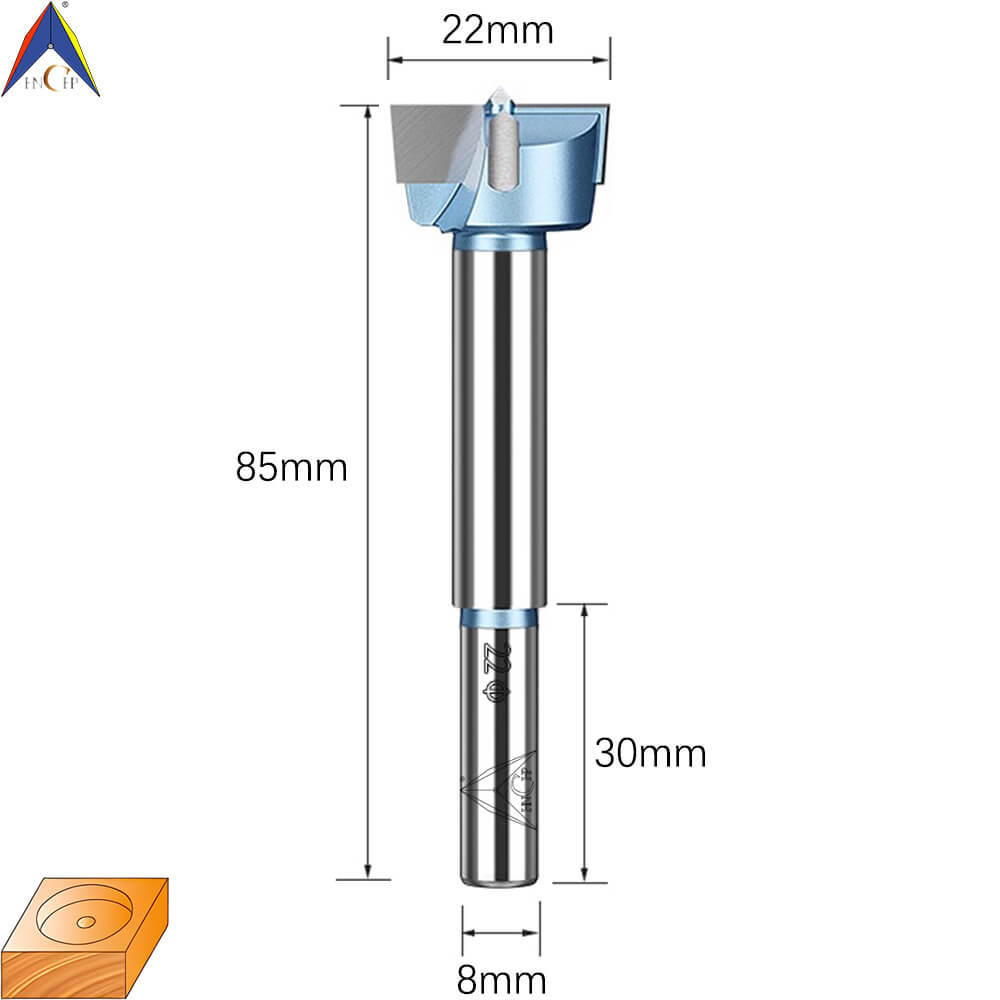

CHP171901022	2	22.00	8.00	10.00	85.00
CHP171901023	2	23.00	8.00	10.00	85.00
CHP171901024	2	24.00	8.00	10.00	85.00
CHP171901025	2	25.00	10.00	12.00	85.00
CHP171901026	2	26.00	10.00	12.00	85.00
CHP171901027	2	27.00	10.00	12.00	85.00
CHP171901028	2	28.00	10.00	12.00	85.00
CHP171901029	2	29.00	10.00	12.00	85.00

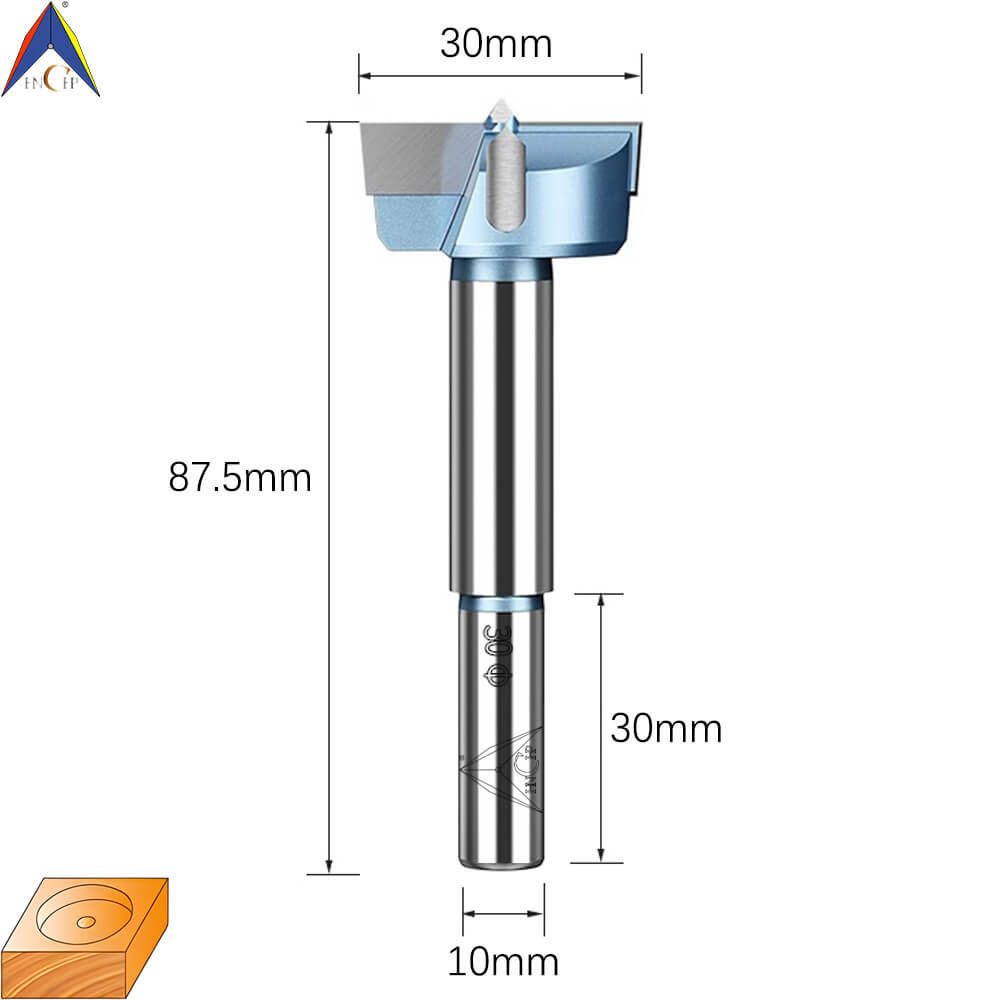

CHP171902030	2	30.00	10.00	12.00	87.50

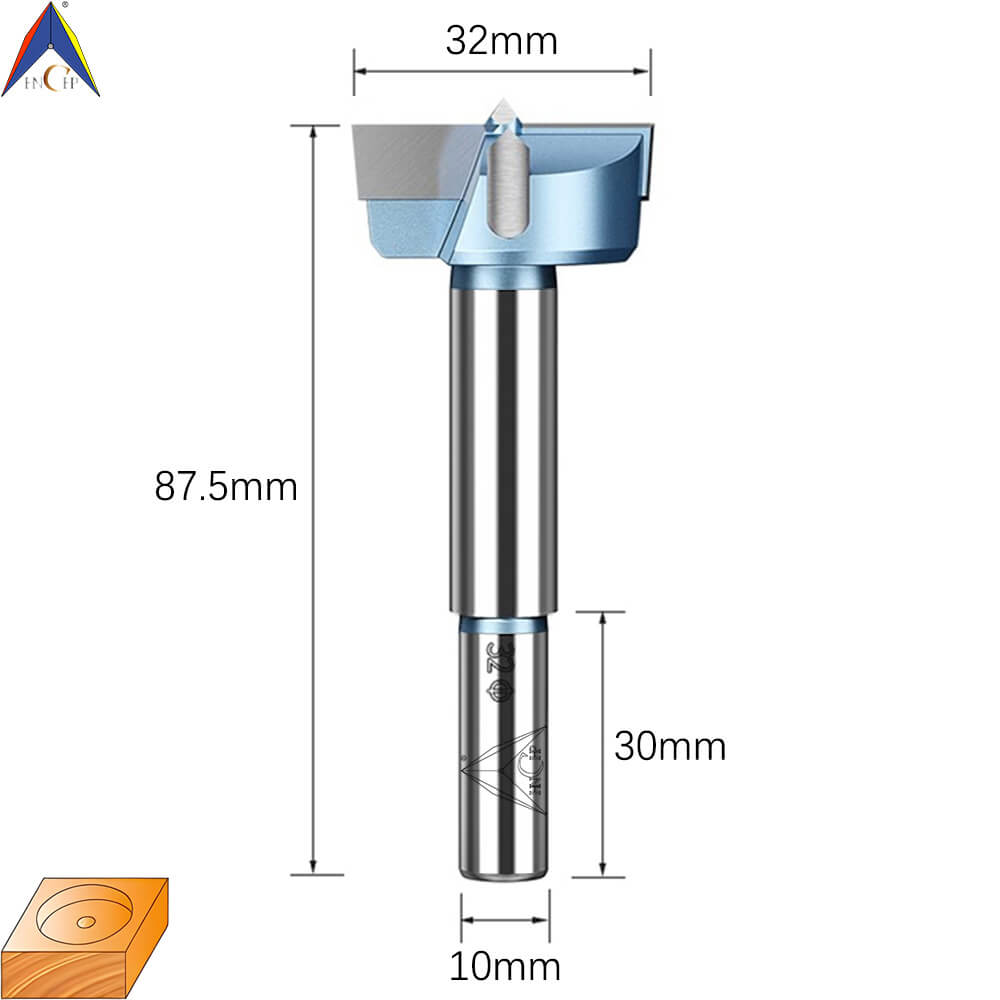

CHP171902032	2	32.00	10.00	12.00	87.50
CHP171902034	2	34.00	10.00	12.00	87.50

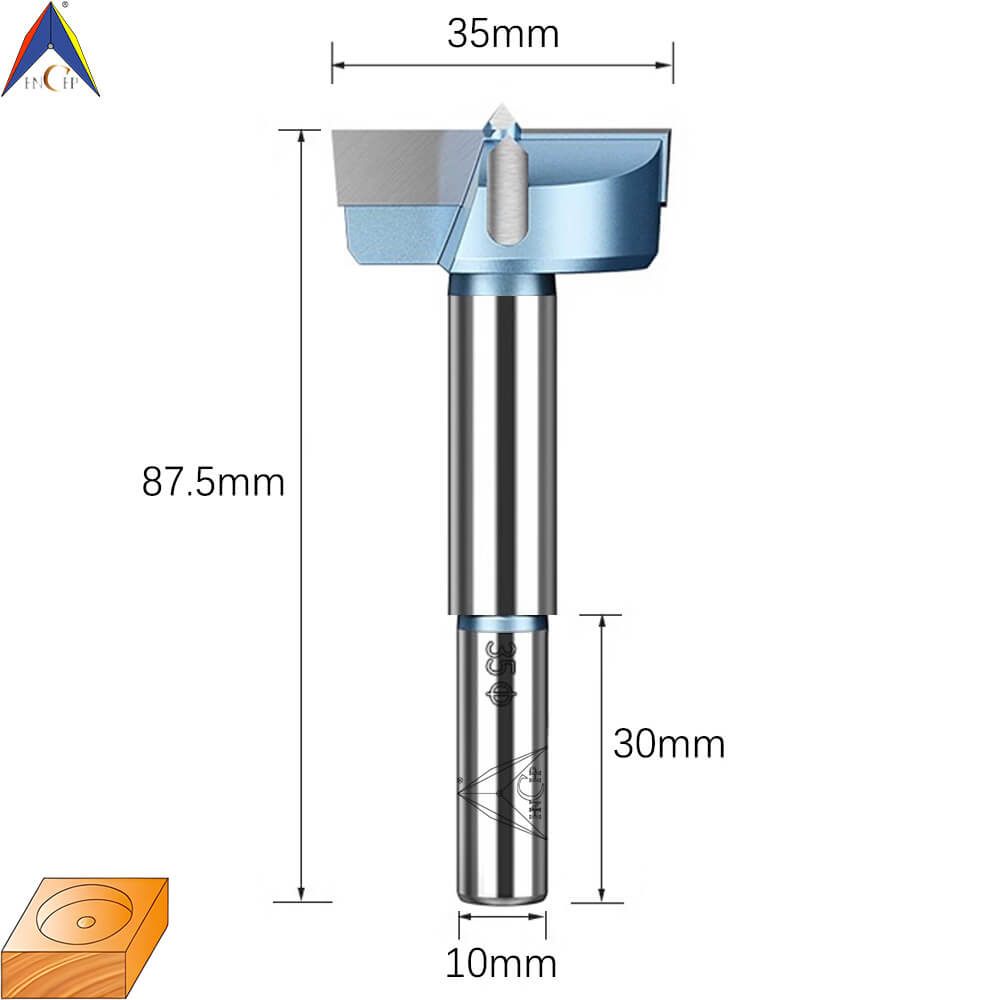

CHP171902035	2	35.00	10.00	12.00	87.50

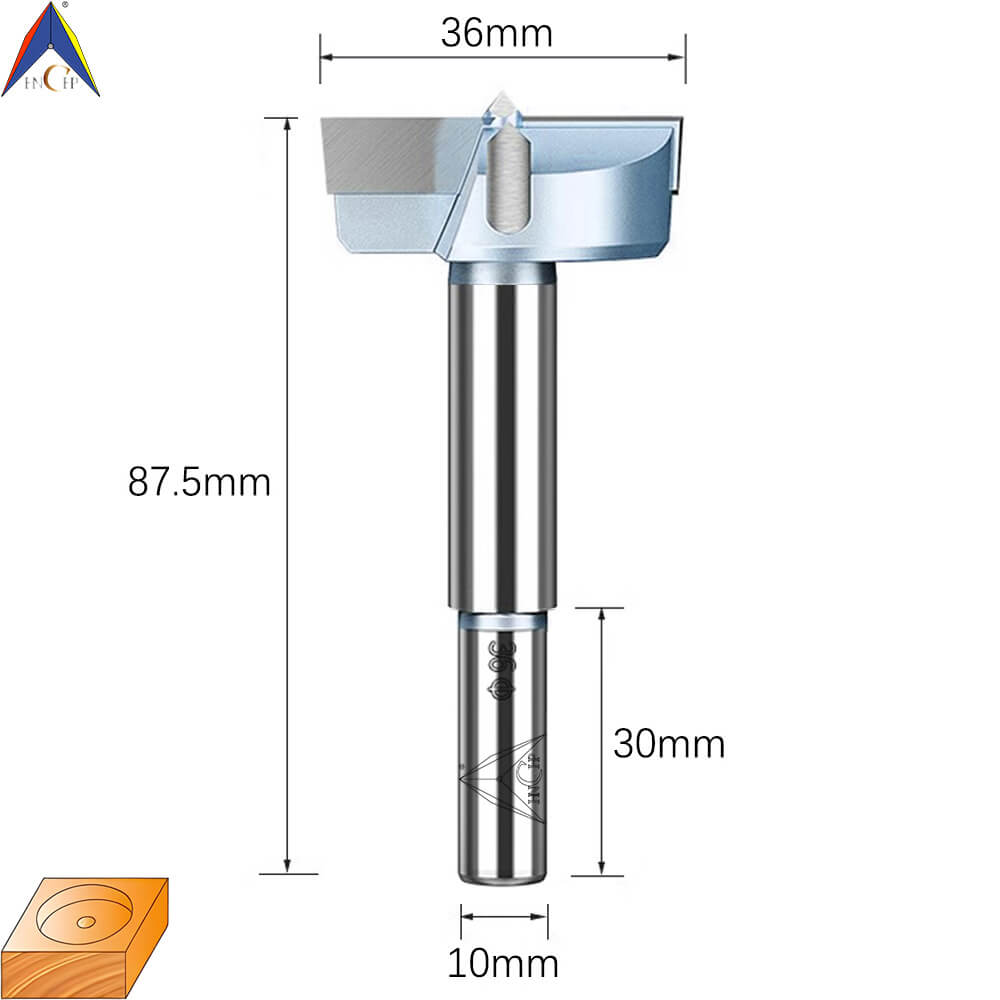

CHP171902036	2	36.00	10.00	12.00	87.50
CHP171902038	2	38.00	10.00	15.00	87.50

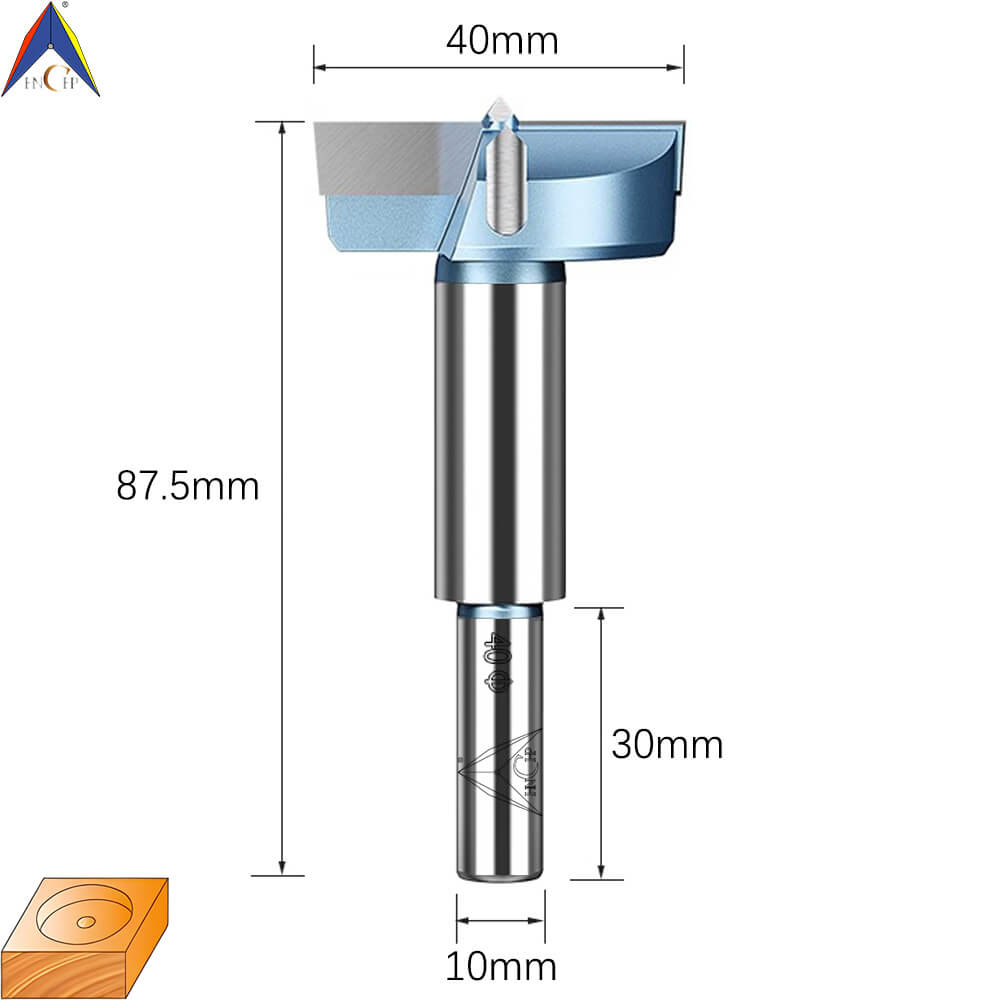

CHP171902040	2	40.00	10.00	15.00	87.50

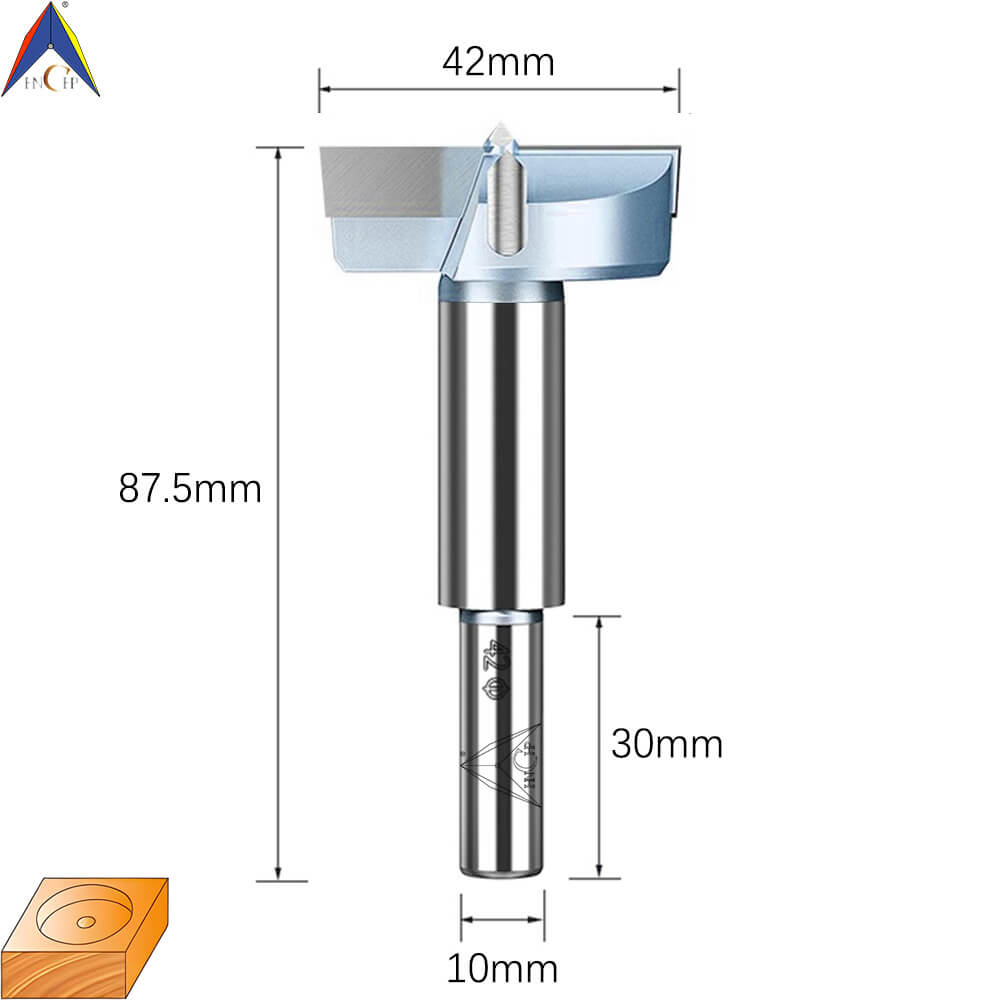

CHP171902042	2	42.00	10.00	15.00	87.50
CHP171902043	2	43.00	10.00	15.00	87.50
CHP171902044	2	44.00	10.00	15.00	87.50

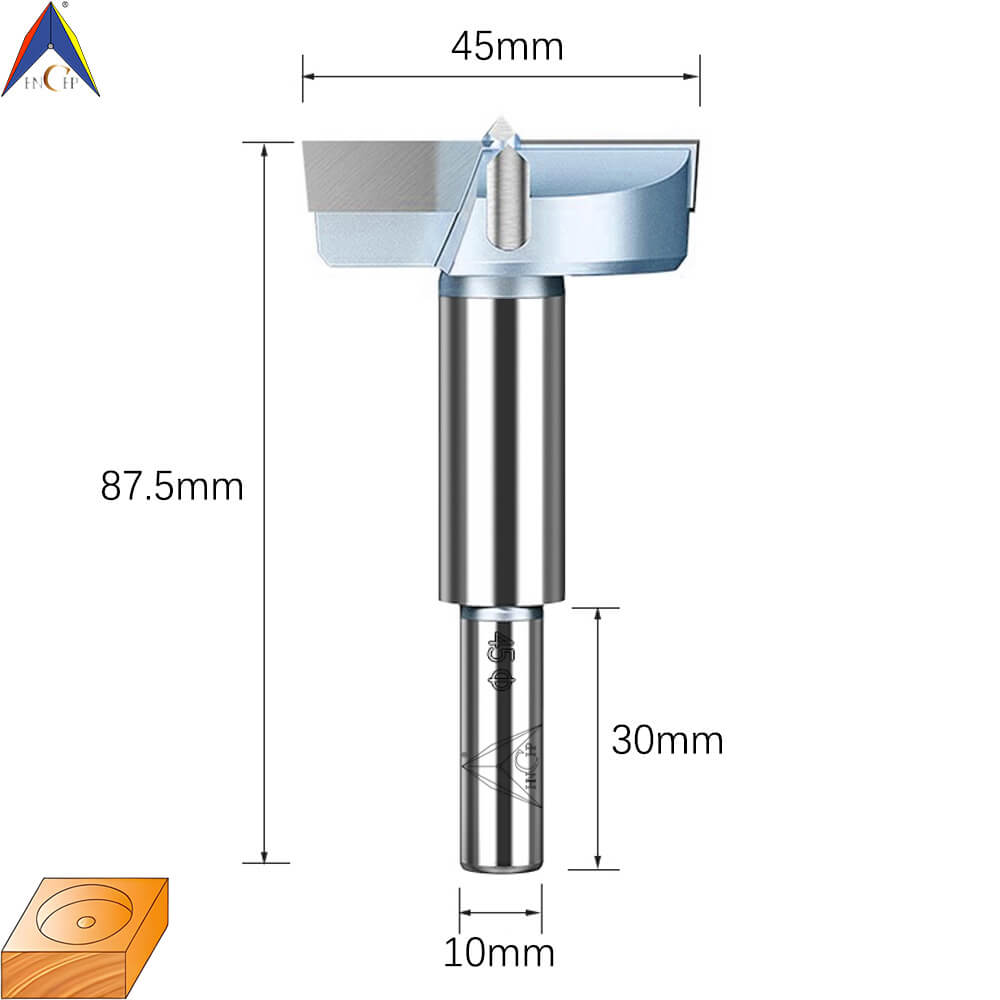

CHP171902045	2	45.00	10.00	15.00	87.50
CHP171902046	2	46.00	10.00	15.00	87.50
CHP171902048	2	48.00	10.00	15.00	87.50
CHP171902050	2	50.00	10.00	15.00	87.50
CHP171902052	2	52.00	10.00	15.00	87.50
CHP171902053	2	53.00	10.00	15.00	87.50
CHP171902054	2	54.00	10.00	15.00	87.50
CHP171902055	2	55.00	10.00	15.00	87.50
CHP171902056	2	56.00	10.00	15.00	87.50
CHP171902058	2	58.00	10.00	15.00	87.50
CHP171902060	2	60.00	10.00	15.00	87.50
CHP171902063	2	63.00	10.00	15.00	87.50
CHP171902065	2	65.00	10.00	15.00	87.50

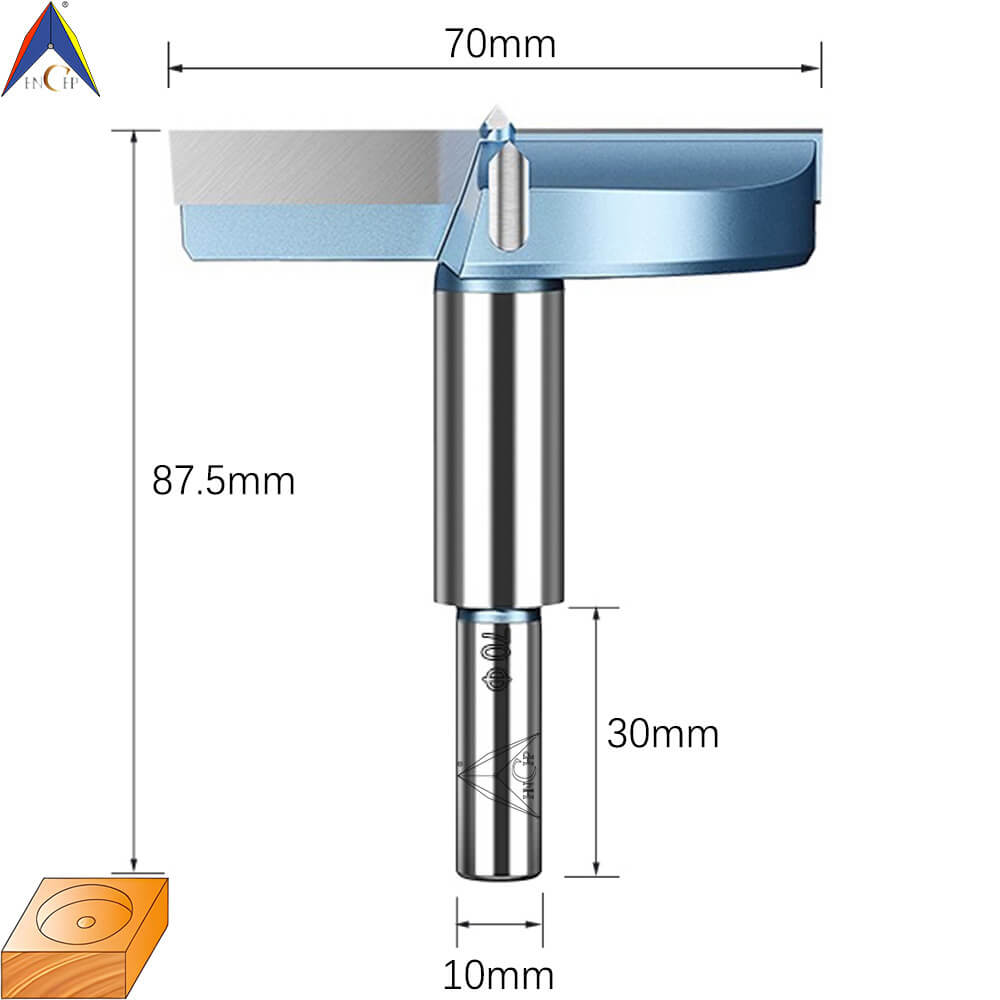

CHP171902070	2	70.00	10.00	15.00	87.50
CHP171902075	2	75.00	10.00	15.00	87.50

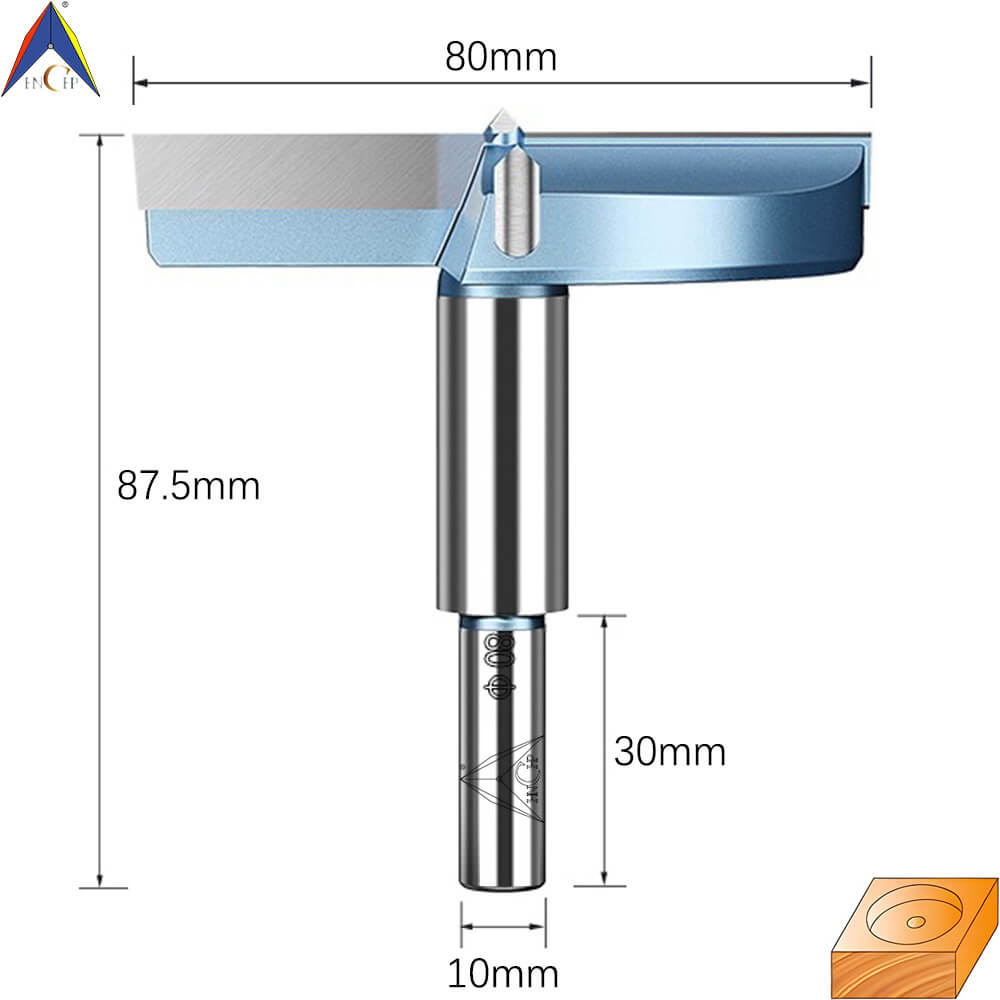

CHP171902080	2	80.00	10.00	15.00	87.50
Type B: Used for Bits of D14-D30, with Lengthened Shank.

Note: Beyond standard listed specs, all sizes, geometries, and profiles are fully customizable to meet specific project requirements. Contact us to discuss your custom specifications.

Applications and Industries

Woodworking and Furniture Manufacturing

Furniture Production

Cabinet Making and Joinery

Solid Wood and Engineered Wood Drilling
Cabinet Installation and Hardware Applications

Cabinet Assembly Work

Hinge Boring and Cup Hole Drilling

Door and Furniture Hardware Installation

Precision Hole Alignment Tasks
Industrial Panel Processing and CNC Production

CNC Drilling Operations

Mass Production of Furniture Components

Engineered Panel Processing

Automated Hole-Making Applications
Signage, Decoration and General Fabrication

Sign Making and Lettering

Decorative Panel Processing

Plastic and Composite Material Drilling

Light Industrial Fabrication Work

CHP17190 - Carbide Tipped Forstner Bit (Industrial Grade): Suitable for precision drilling, boring, and hole-making operations across woodworking, plastics, composite materials, and selected non-ferrous metal applications.

Key Features and Construction

Cutting Performance: Ultra-fine grain carbide tips provide sharp cutting edges and stable drilling performance
Structural Strength: Heat-treated steel body ensures durability, rigidity, and long service life
Precision Geometry: Accurate grinding process ensures smooth entry and clean hole formation
Operational Stability: Balanced design reduces vibration and improves drilling accuracy
Bonding Technology: High-strength brazing ensures secure carbide tip retention and thermal stability
Shank Precision: Precision-ground shanks (round or hex) ensure stable clamping and concentric rotation
Customization Capability: Custom diameters, lengths, and geometries available for specific applications

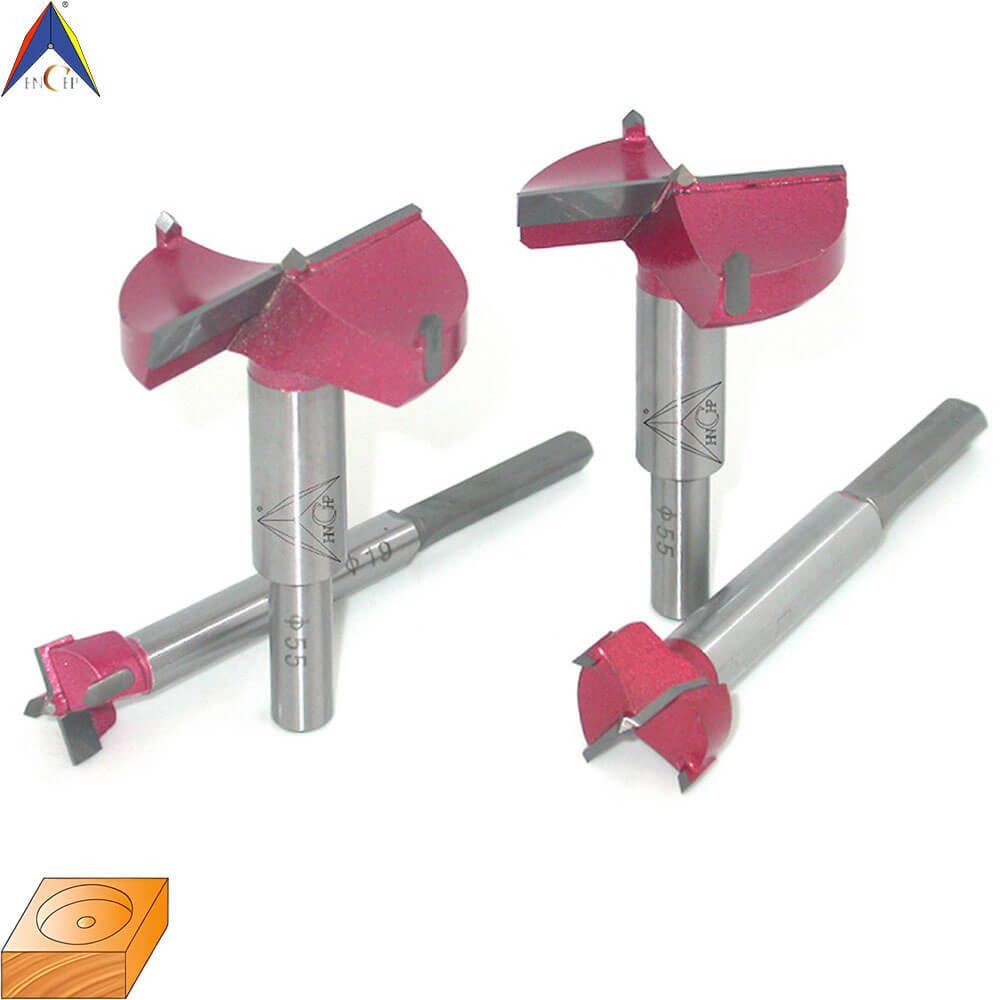

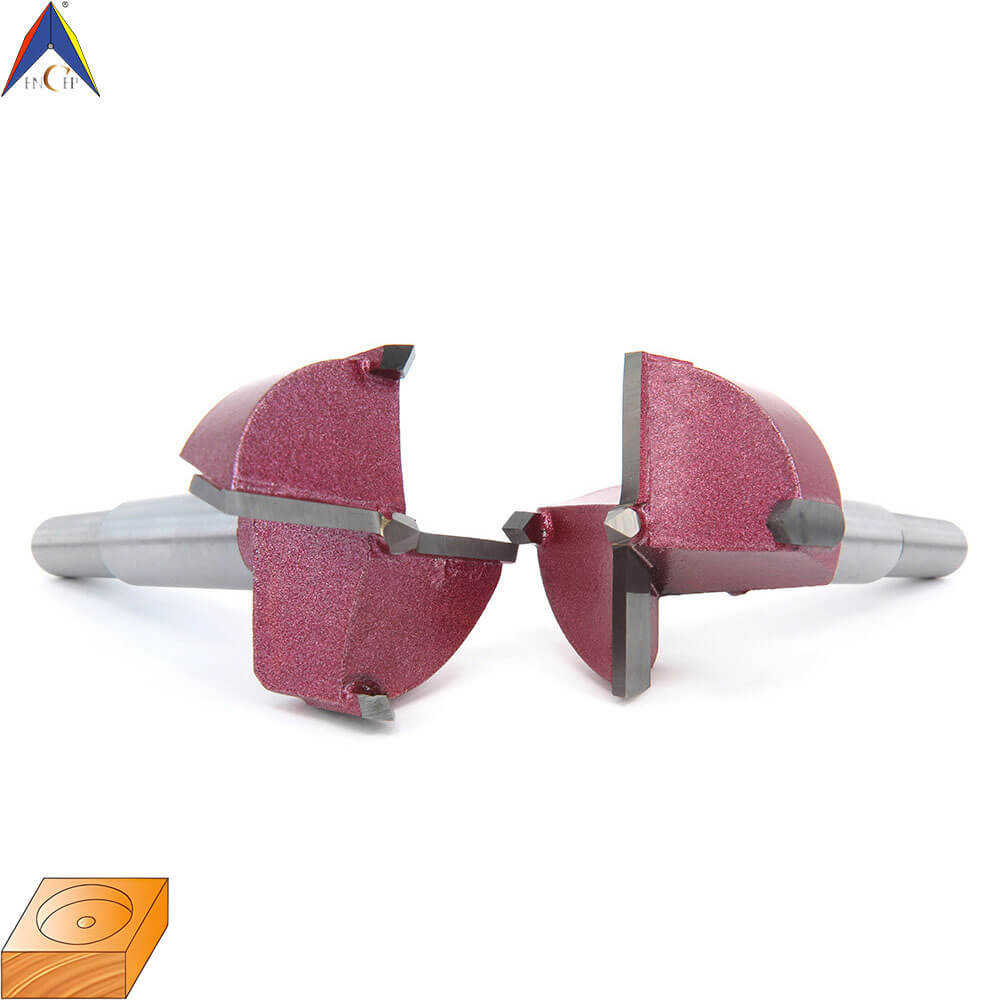

Surface Finish Options: Tool bodies can be color-coated (e.g., red, white, black, cherry) or sandblasted for improved durability and professional appearance
Packaging Options: Products are supplied in wooden boxes, plastic cases, or reinforced cartons according to order requirements

Machine Compatibility

Engineered for Use on the Following Machines (Depending on Bit Type and Safety Rating):

CNC Routers and Automated Machining Systems: Suitable for precision drilling and production applications
Drill Press Machines and Vertical Drilling Equipment: Ideal for accurate vertical hole-making operations
Hand-Held Electric Drills (Hex Shank Models Only): Suitable for portable drilling applications
Router Tables and Fixture-Based Systems (Selected Tools): Used for controlled drilling and positioning operations
Light Industrial Workshop Equipment and Production Lines: Suitable for general drilling and batch processing applications
Note: Tool selection must follow machine compatibility, operating speed limits, and safety guidelines.

Key Advantages

High Precision Hole-Making: Ensures accurate drilling with clean entry and stable performance
Long Tool Life: Premium carbide tips provide extended durability and consistent sharpness retention
Stable Machining Performance: Optimized structure reduces vibration and improves cutting stability
Clean Cutting Results: Precision grinding reduces tear-out, chipping, and surface defects
Multiple Shank Options: Available in round and hex shank designs for different machines
Efficient Operation: Designed for smooth chip evacuation and efficient drilling performance
Flexible Customization: OEM and custom specifications available for industrial applications
Professional Protective Packaging: Standardized packaging ensures safe transportation and secure storage
Performance-to-Cost Efficiency: Extended tool life and reduced maintenance requirements provide excellent long-term machining value
CHP17190 - Carbide Tipped Forstner Bit (Industrial Grade): Engineered for stable machining performance, high precision control, and consistent drilling results in industrial applications.

Why Choose Our Wood Boring and Drilling Bits

With extensive experience in precision cutting tools, Conquer delivers reliable and high-performance solutions for modern machining applications. Our wood boring and drilling bits are designed for woodworking and industrial panel processing, combining durable materials, precision manufacturing, and stable performance. Trusted by professionals and manufacturers worldwide, they ensure accurate, efficient, and clean hole-making results across diverse production environments.
