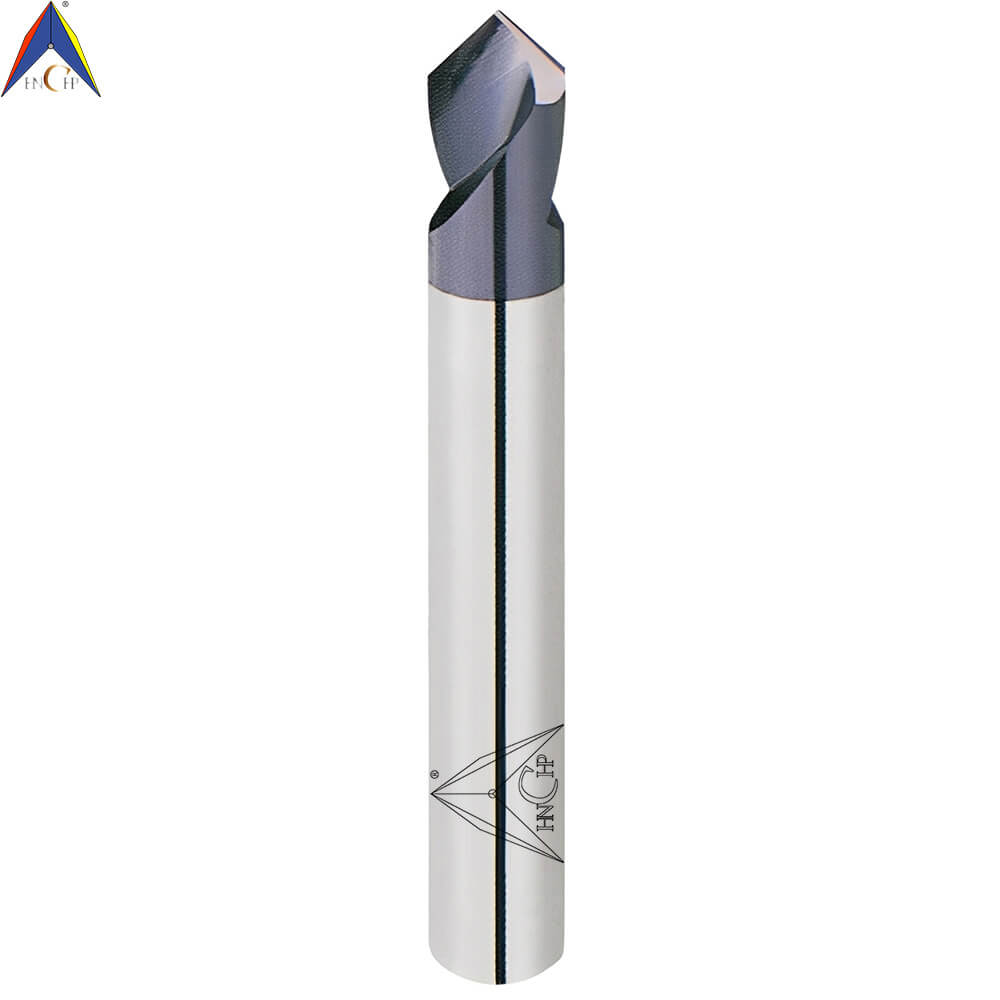

CHPM620 - 2 Flutes Solid Carbide Center Drill Bit (Short Shank)

Product Overview

Conquer High Precision Tools manufactures high-performance solid carbide drill bits engineered for precision hole making, long tool life, and consistent drilling performance in metalworking applications.

Each tool is manufactured from premium sub-micron solid carbide for exceptional rigidity, wear resistance, and machining stability. Designed for high-speed drilling, efficient chip evacuation, and accurate hole production across a wide range of ferrous and non-ferrous materials.

CHPM620 - 2 Flutes Solid Carbide Center Drill Bit (Short Shank) is a precision drilling tool designed for stable machining performance, durability, and consistent hole quality in professional CNC machining applications.

Suitable Materials

Ferrous Metals: Carbon steel, alloy steel, tool steel, stainless steel, hardened steel (depending on tool geometry and coating)

Cast Materials: Cast iron, ductile iron, grey iron, powdered metal materials

Non-Ferrous Metals: Aluminum, aluminum alloys, brass, copper, bronze

High-Performance Materials: Titanium alloys, nickel-based alloys, heat-resistant alloys (depending on drilling conditions and coating selection)

Note: Material suitability depends on drill geometry, coating configuration, cutting parameters, coolant conditions, and machine rigidity.

Get a Quote

Technical Specifications

CHPM620 - 2 Flutes Solid Carbide Center Drill Bit (Short Shank)
Part No.	Drilling Diameter	Shank Diameter	Drilling Length	Flute Number	Overall Length
CHPM6200030	3.00	3.00	6.00	2	50.00
CHPM6200040	4.00	4.00	8.00	2	50.00
CHPM6200060	6.00	6.00	12.00	2	50.00
CHPM6200080	8.00	8.00	16.00	2	60.00
CHPM6200100	10.00	10.00	20.00	2	75.00
CHPM6200120	12.00	12.00	24.00	2	75.00
CHPM6200160	16.00	16.00	30.00	2	100.00
CHPM6200200	20.00	20.00	30.00	2	100.00

Note: Beyond standard listed specs, all sizes, geometries, and profiles are fully customizable to meet specific project requirements. Contact us to discuss your custom specifications.

Applications and Industries

Metalworking and Precision Manufacturing

General Engineering Production

Precision Mechanical Components

Industrial Metal Fabrication
CNC Drilling and Hole Making

CNC Machining Operations

Precision Hole Drilling

Production Drilling Applications
Automotive and Industrial Components

Automotive Parts Manufacturing

Hydraulic and Pneumatic Components

Mechanical Component Production
Professional and Industrial Use

Industrial Production Lines

Tool and Die Manufacturing

Custom Machining Applications

CHPM620 - 2 Flutes Solid Carbide Center Drill Bit (Short Shank): Suitable for precision drilling, pilot hole production, deep hole drilling, positioning operations, and CNC machining applications across ferrous and non-ferrous metal materials.

Key Features and Construction

Cutting Performance: Premium sub-micron solid carbide provides excellent sharpness, wear resistance, and stable drilling performance
Tool Precision: Precision CNC grinding ensures accurate geometry, sharp cutting edges, and consistent hole quality
Structural Strength: Solid carbide construction delivers exceptional rigidity and vibration resistance during high-speed drilling operations
Chip Evacuation: Optimized flute geometries improve chip removal efficiency and reduce heat accumulation during continuous drilling operations
Hole Accuracy: Precision-ground point geometry improves positioning accuracy and supports excellent hole consistency
Operational Stability: Precision-balanced tool design supports smooth drilling performance and stable machining results at high spindle speeds
Edge Durability: Advanced grinding technology improves edge retention and extends tool service life in demanding machining environments
Coating Options: Available with TiN, TiCN, TiAlN, AlTiN and other advanced coatings according to material and machining requirements
Customization Capability: Custom point angles, flute designs, coolant configurations, dimensions, and coatings are available for specialized drilling requirements
Packaging Options: Products are supplied in protective plastic tubes, storage boxes, or reinforced cartons according to order requirements

Machine Compatibility

Engineered for Use on the Following Machines (Depending on Tool Type and Specification):

CNC Machining Centers: Suitable for precision drilling, production machining, and automated manufacturing applications
Drilling Machines and Machining Equipment: Ideal for general drilling, batch production, and industrial machining operations
High-Speed CNC Equipment: Suitable for high-efficiency drilling and precision hole production applications
Specialized Precision Machining Equipment: Applicable for micro drilling, coolant-through drilling, and detailed machining operations
Note: Tool selection must follow machine compatibility, spindle speed recommendations, feed rate requirements, coolant requirements, and safety guidelines.

Key Advantages

Excellent Hole Accuracy: Precision-ground geometries provide accurate positioning and consistent hole dimensions
Stable Drilling Performance: Optimized cutting geometry ensures smooth drilling action and reduced vibration
Efficient Chip Evacuation: Advanced flute designs improve chip removal and reduce heat buildup during drilling operations
Long Tool Service Life: Premium solid carbide construction ensures excellent wear resistance and extended tool life
Wide Material Compatibility: Suitable for steel, stainless steel, cast iron, aluminum, titanium alloys, and other engineering materials
Flexible Coating Solutions: Multiple coating options available for different materials and machining requirements
Cost-Efficient Machining Performance: Extended tool life and stable drilling performance help reduce overall machining cost per hole
Flexible Customization Options: Custom geometries, coatings, coolant-through designs, and dimensions available for specialized drilling applications
Professional Protective Packaging: Standardized packaging ensures safe transportation and storage
CHPM620 - 2 Flutes Solid Carbide Center Drill Bit (Short Shank): Engineered for stable drilling performance, high hole accuracy, and reliable tool life in professional metalworking environments.

Why Choose Our Solid Carbide Drill Bits

With extensive experience in precision cutting tool manufacturing, Conquer delivers reliable and high-performance solutions for modern CNC machining and industrial manufacturing applications. Our solid carbide drill bits combine premium carbide materials, precision grinding technology, and optimized drilling geometries to ensure efficient chip evacuation, excellent hole quality, and long-lasting performance. Trusted by manufacturers, workshops, and CNC professionals worldwide, they provide accurate and consistent drilling results for industrial production, engineering applications, and precision metalworking operations.
