CHPM300 - 2 (3)(4) Flutes Solid Carbide Miniature Ball Nose End Mill

Product Overview

Conquer High Precision Tools manufactures high-performance solid carbide metalworking cutting tools engineered for precision machining, long tool life, and consistent cutting performance in demanding industrial metalworking applications.

Each tool is manufactured from premium sub-micron solid carbide and precision-ground to ensure excellent rigidity, wear resistance, and machining stability. Designed for high-speed machining, efficient chip evacuation, and superior surface quality across a wide range of ferrous and non-ferrous metal materials.

CHPM300 - 2 (3)(4) Flutes Solid Carbide Miniature Ball Nose End Mill is a precision cutting tool designed for stable machining performance, durability, and consistent cutting results in professional metalworking environments.

Suitable Materials

Carbon and Alloy Steels: Mild steel, carbon steel, alloy steel, tool steel, pre-hardened steel

Stainless Steels: Austenitic stainless steel, ferritic stainless steel, martensitic stainless steel, duplex stainless steel

Cast Iron Materials: Gray cast iron, ductile iron, compacted graphite iron

Non-Ferrous Metals: Aluminum, aluminum alloys, copper, brass, bronze

Special Engineering Materials: Titanium alloys, nickel alloys, hardened materials, engineering plastics and selected composite materials (depending on tool geometry and coating configuration)

Get a Quote

Technical Specifications

CHPM300 - 2 (3)(4) Flutes Solid Carbide Miniature Ball Nose End Mill

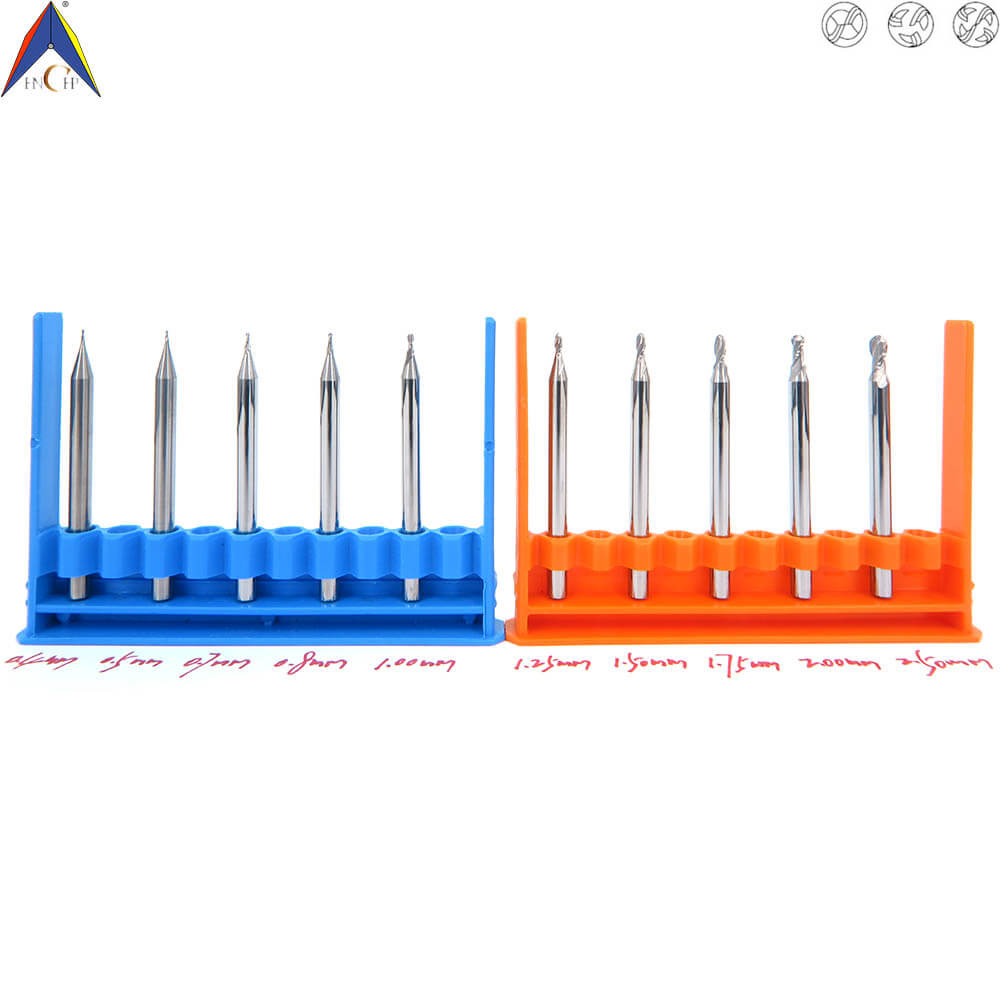

Part No.	Cutting Diameter	Shank Diameter	Cutting Length	Flute Number	Overall Length
CHPM300003	0.30	3.00	0.60	2	38.00

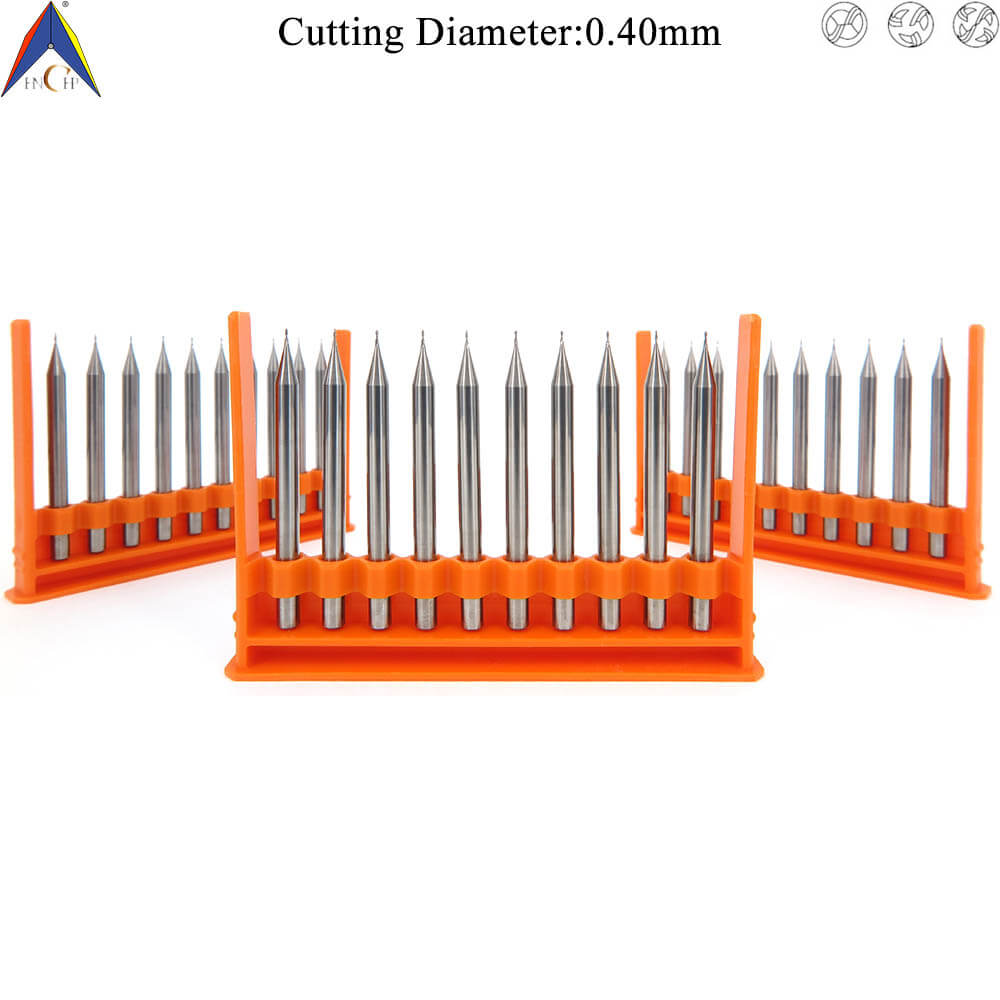

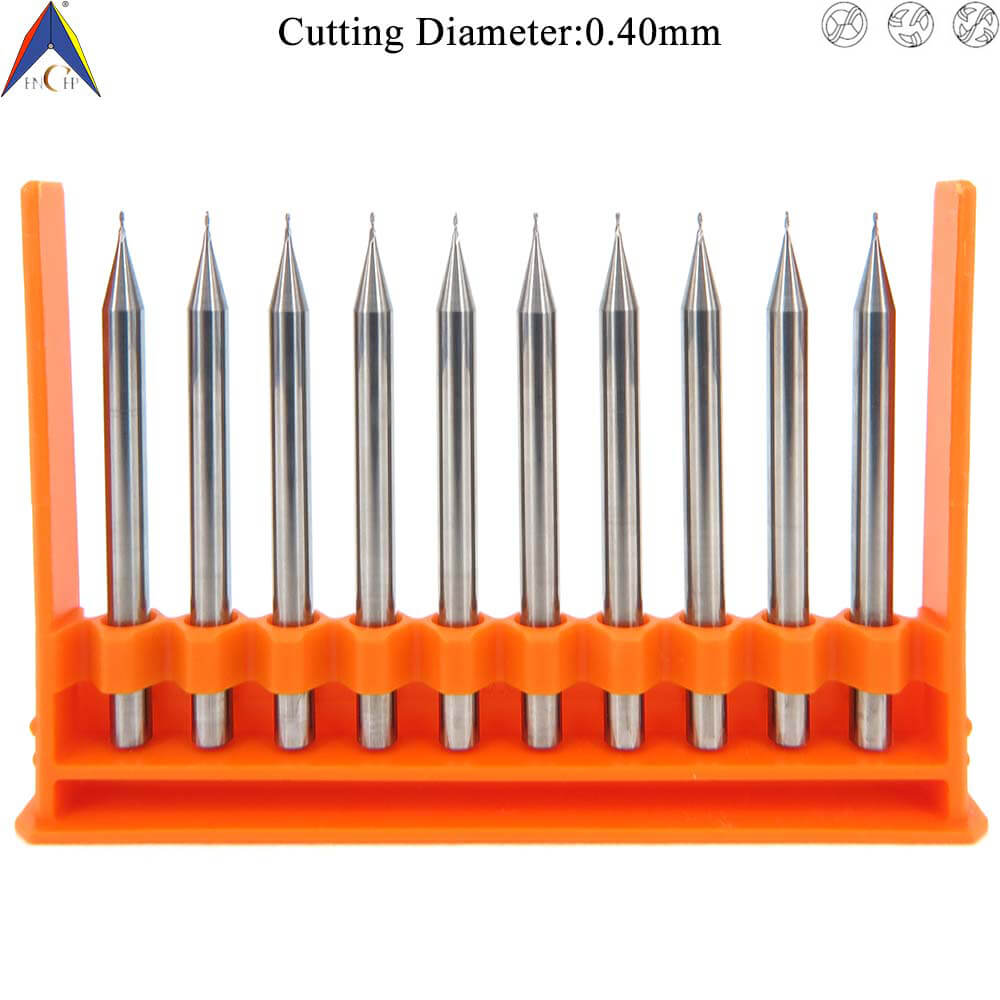

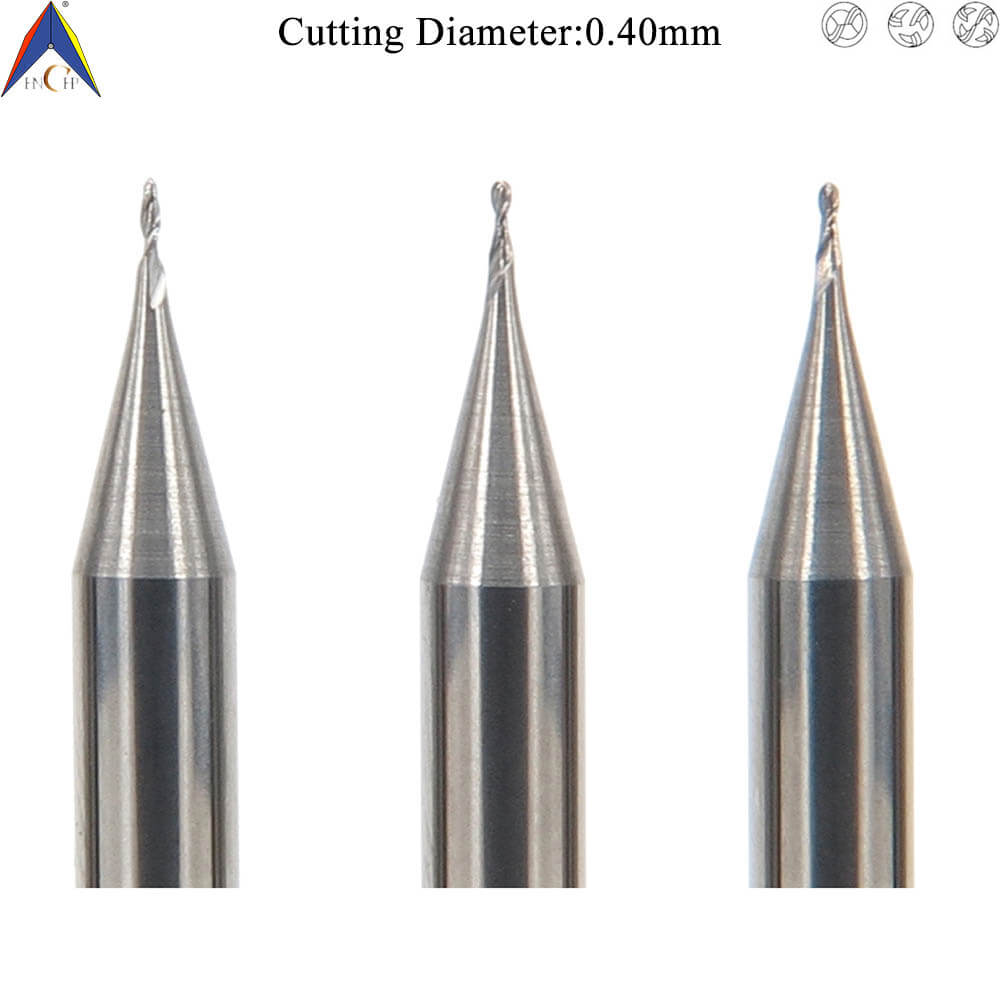

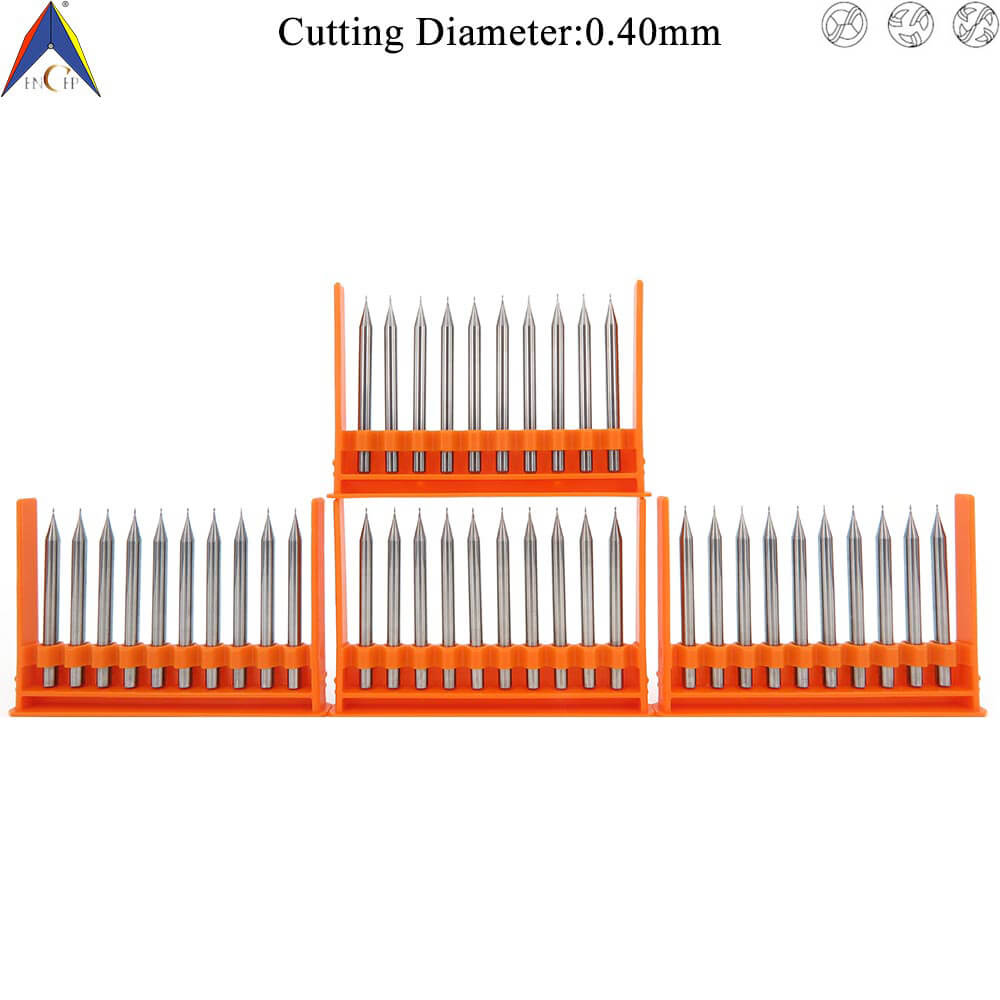

CHPM300004	0.40	3.00	0.80	2	38.00

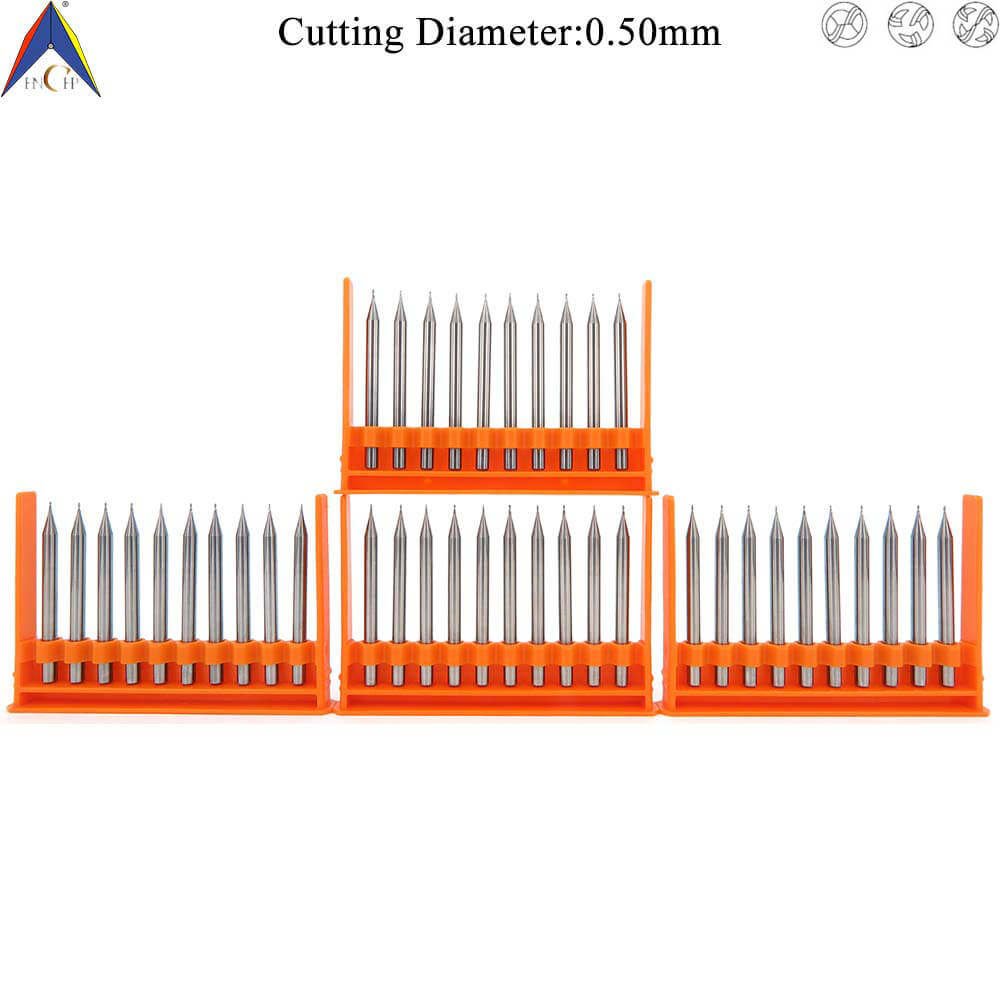

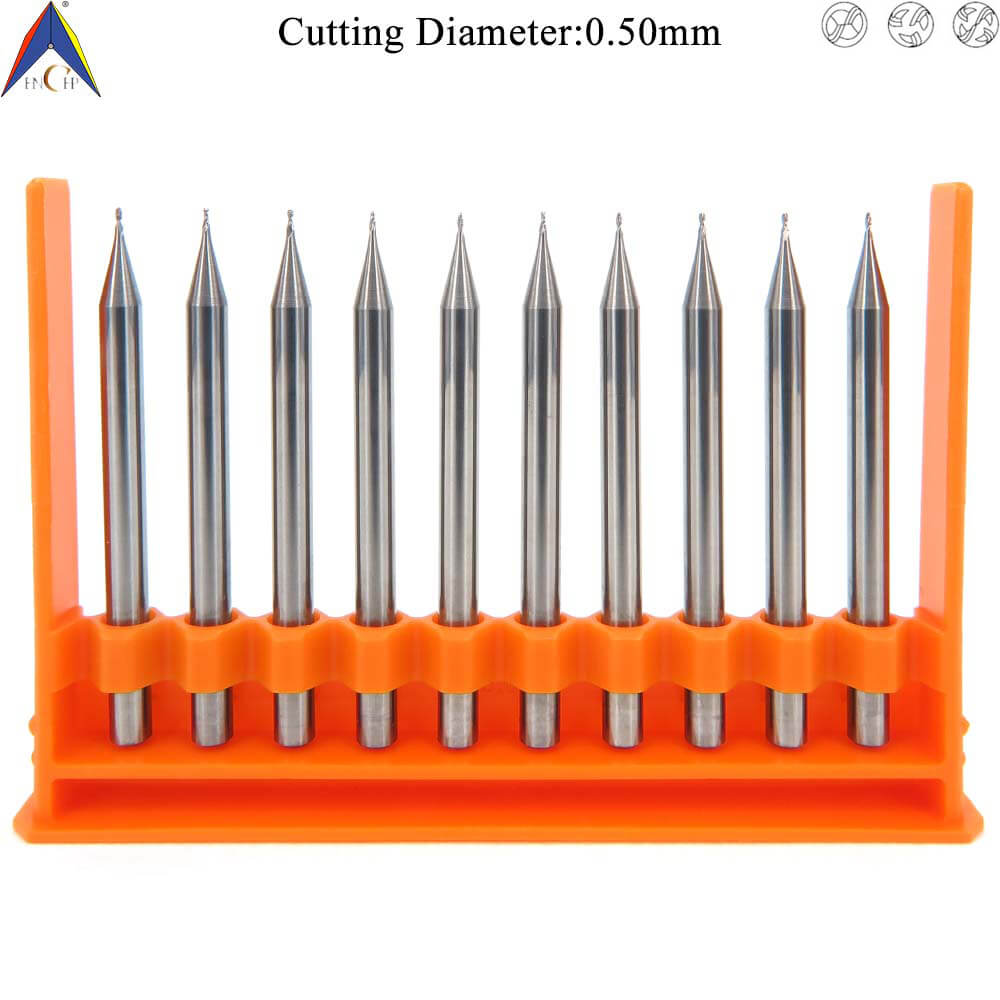

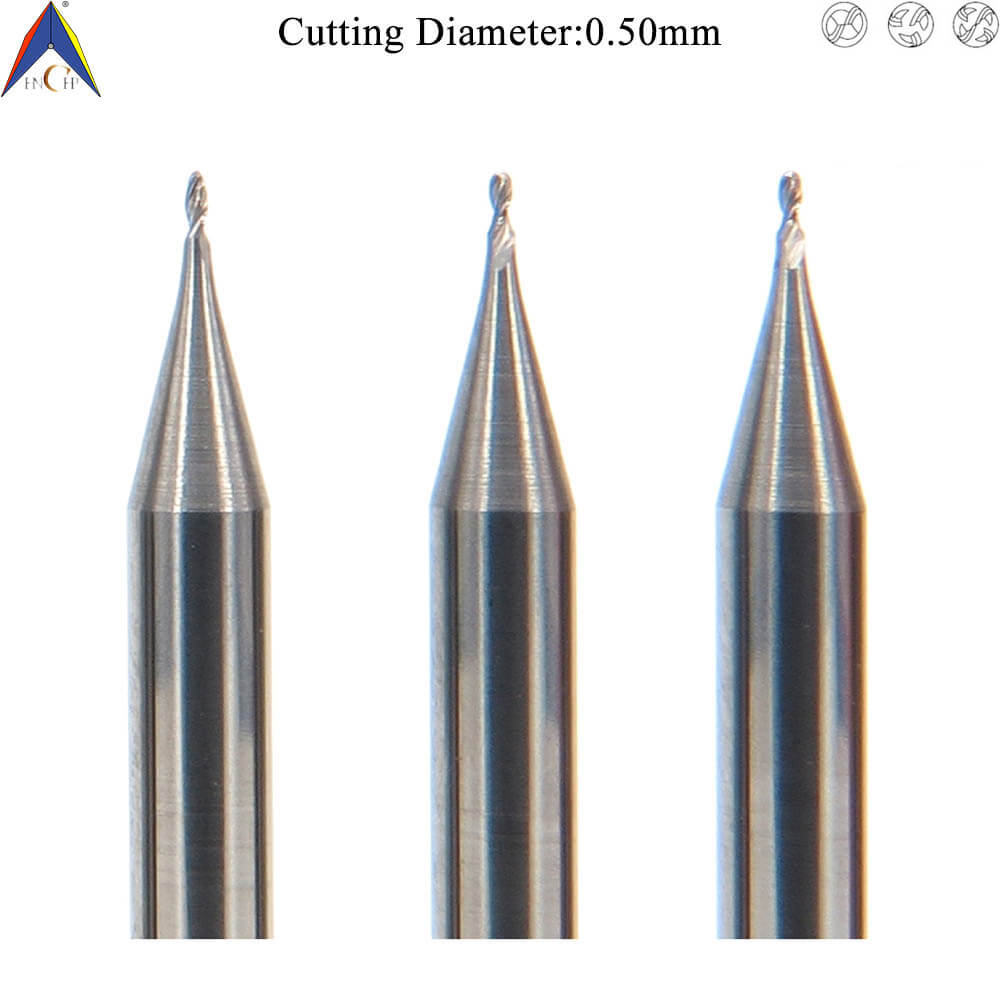

CHPM300005	0.50	3.00	1.00	2 / 3	38.00
CHPM300006	0.60	3.00	1.20	2 / 3	38.00

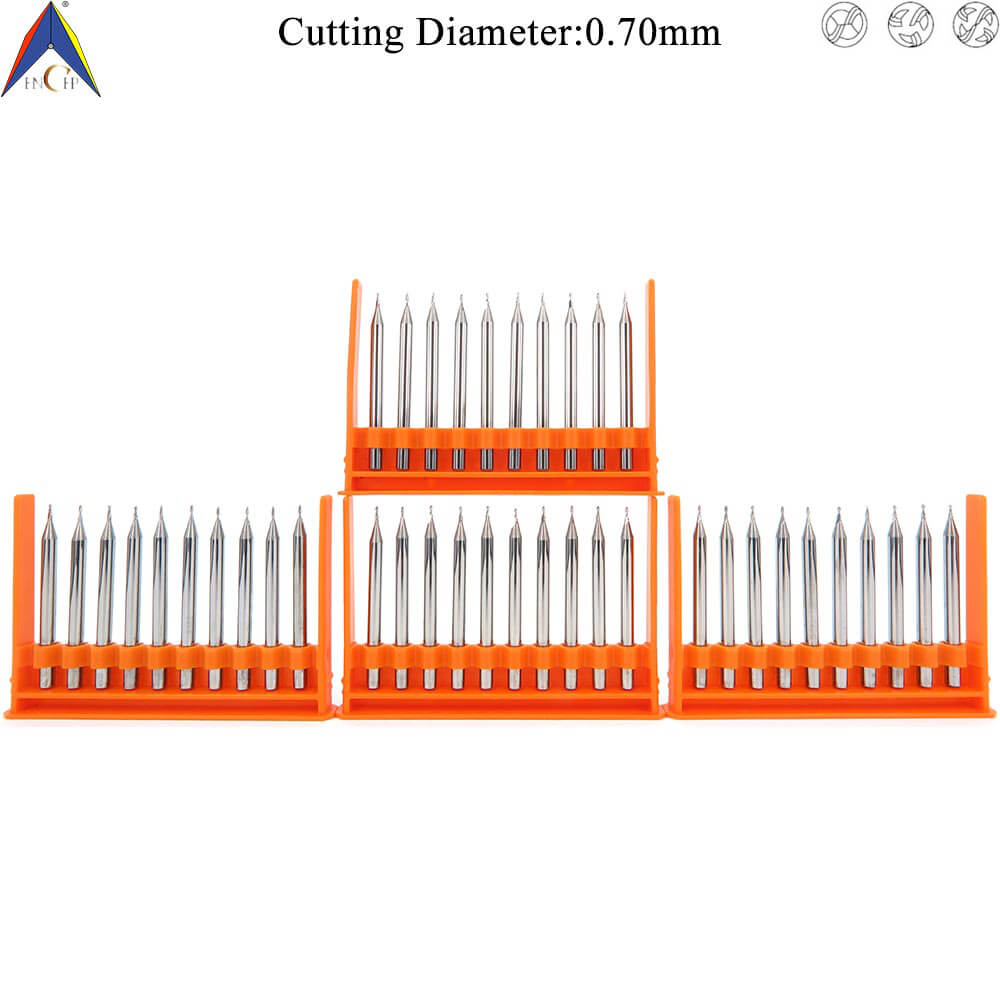

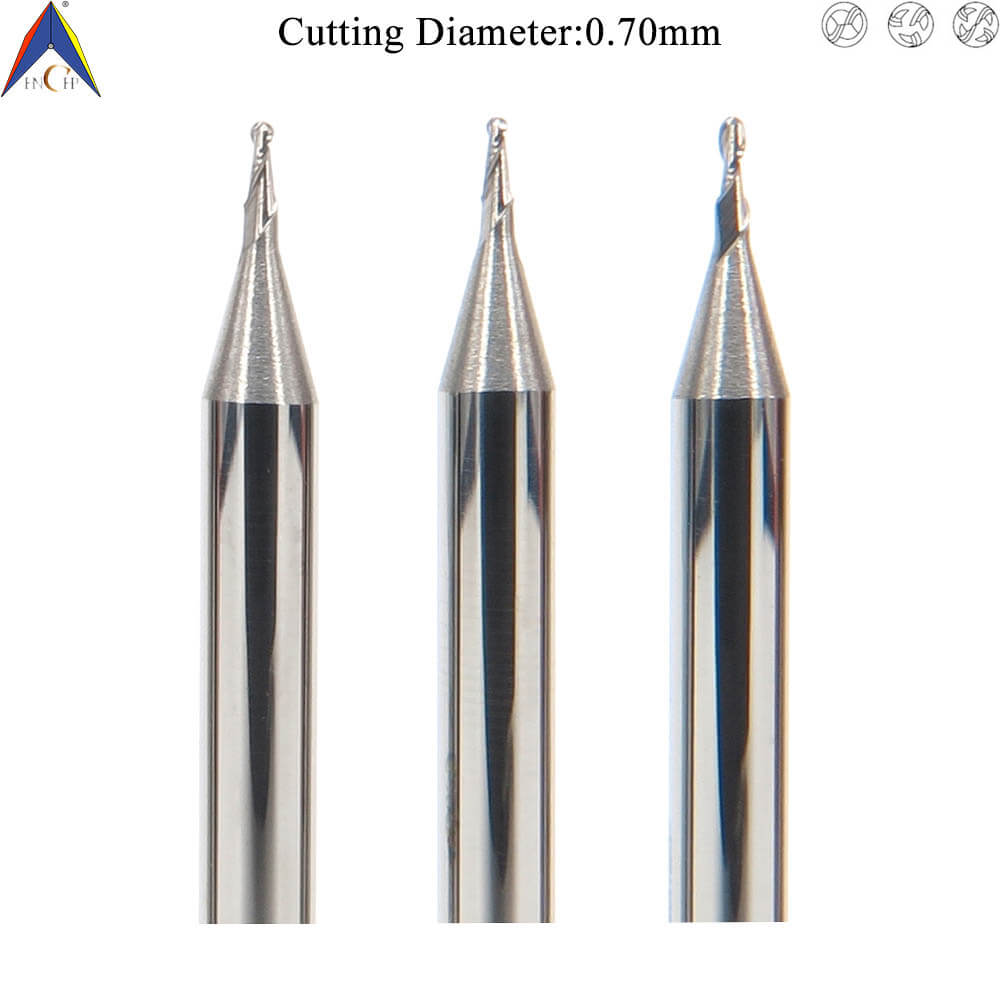

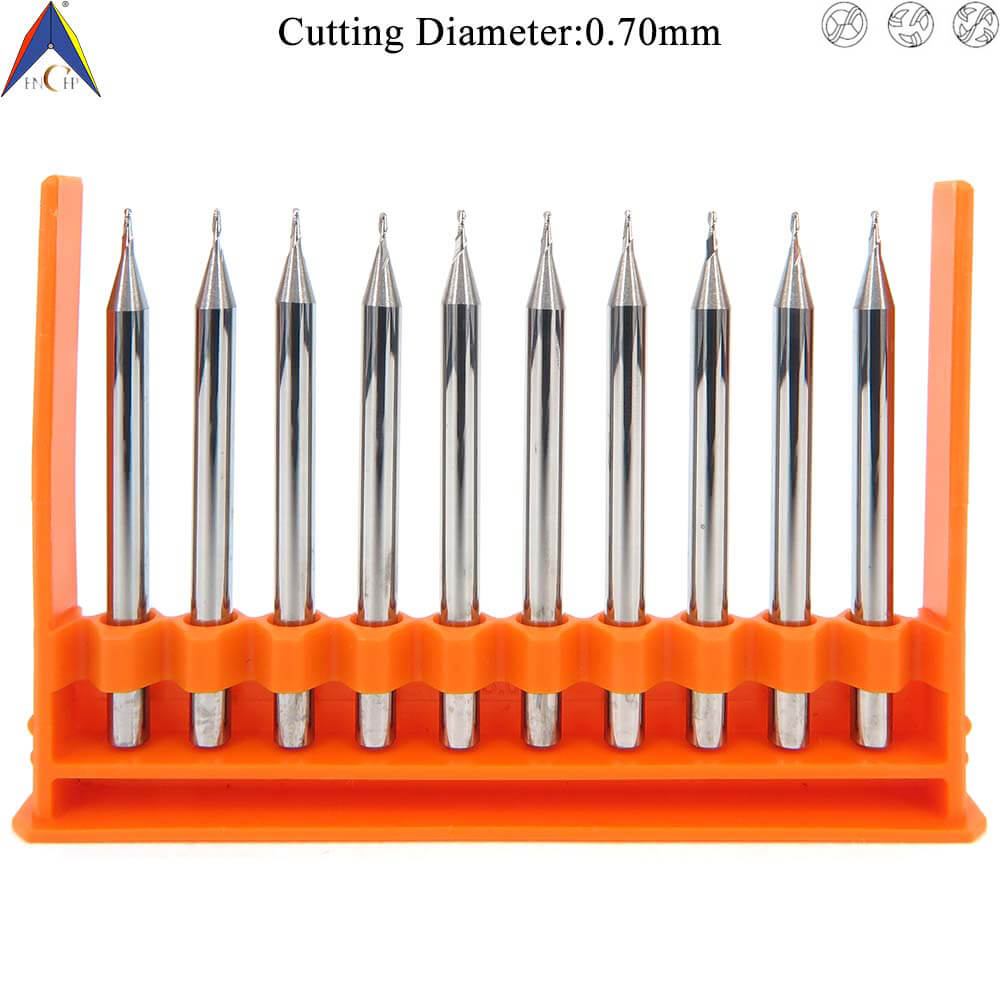

CHPM300007	0.70	3.00	1.40	2 / 3	38.00

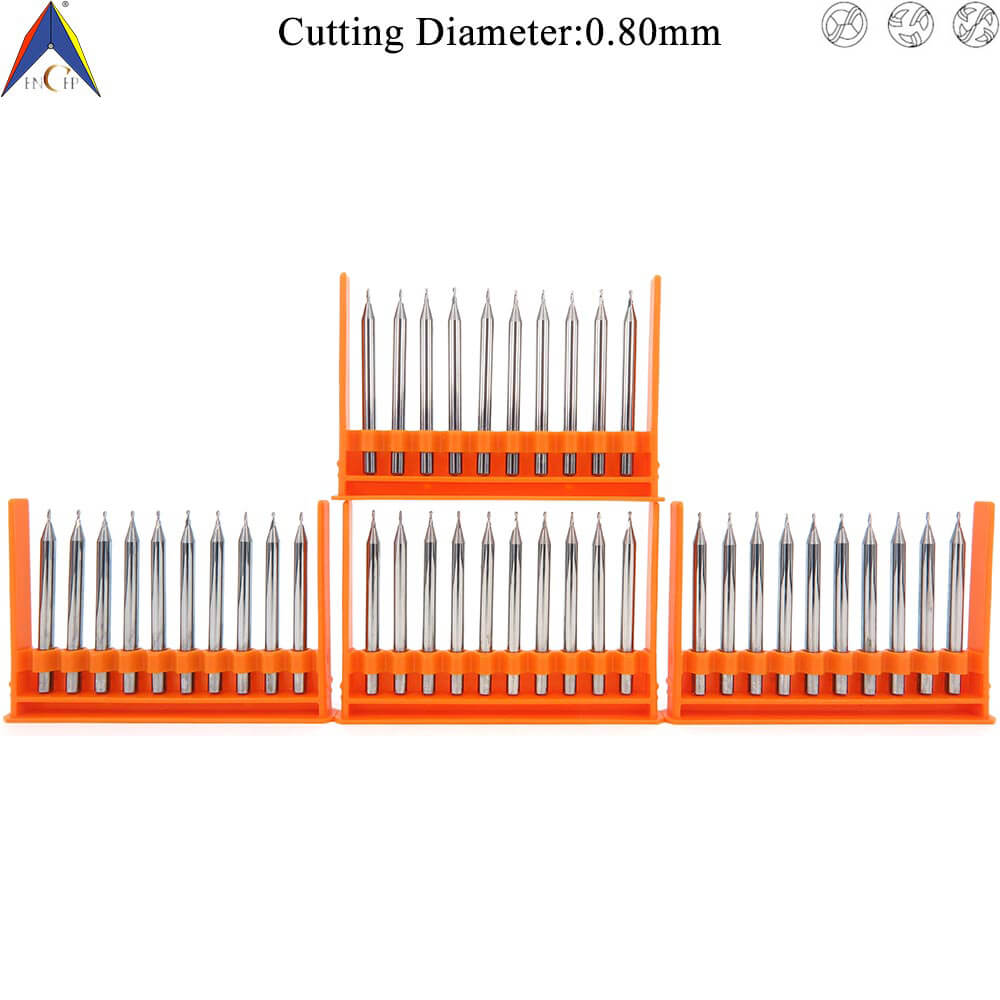

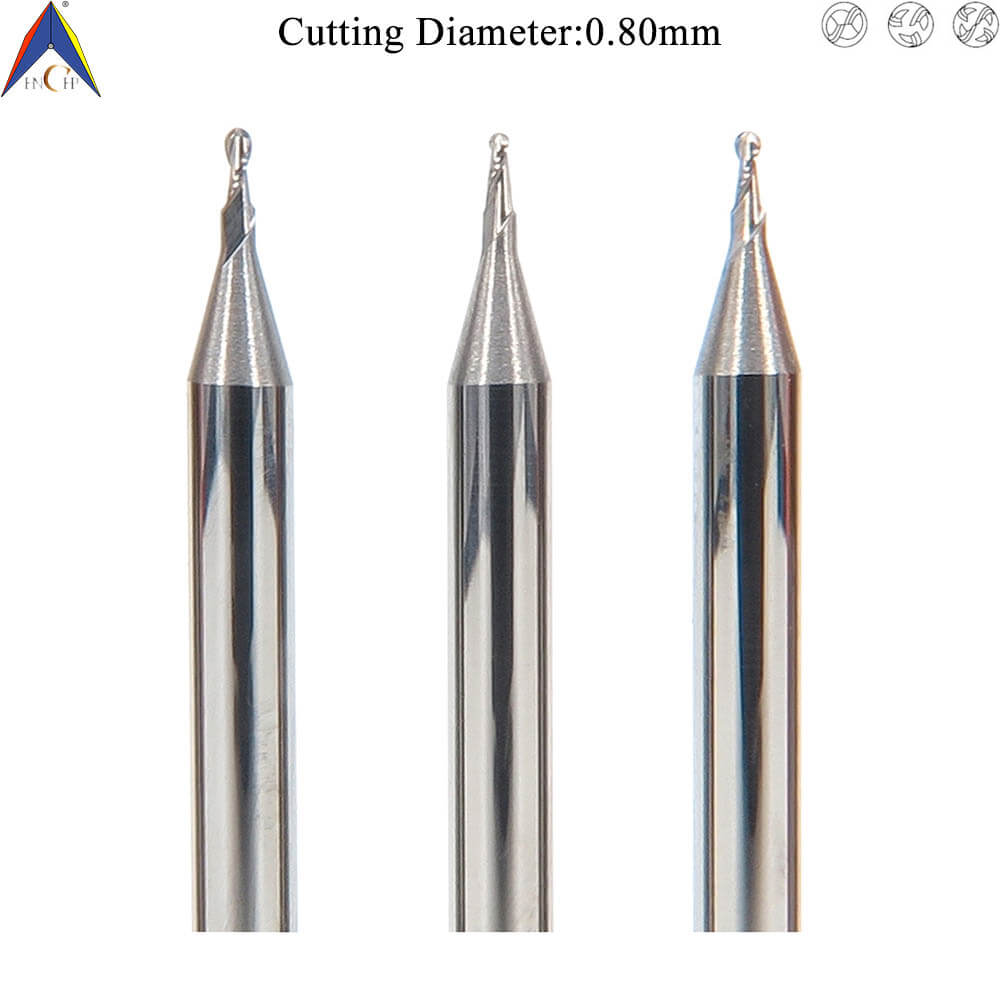

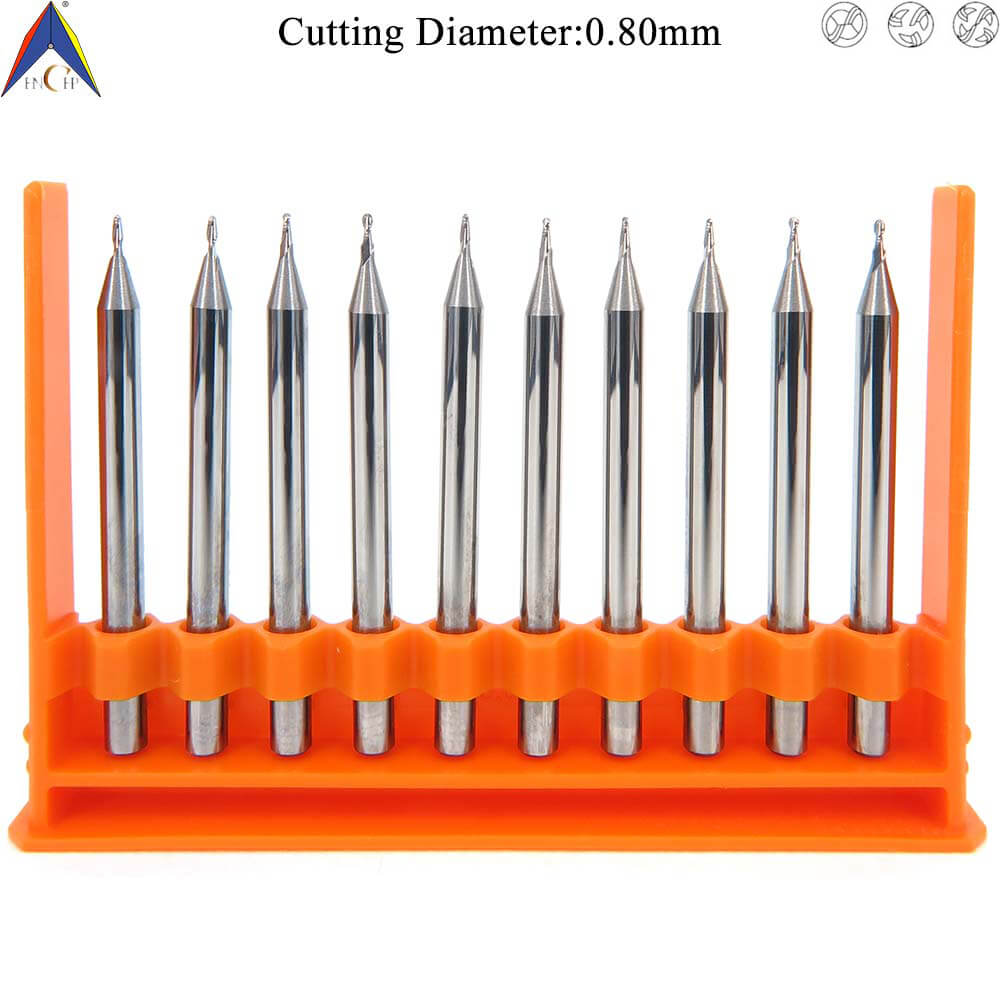

CHPM300008	0.80	3.00	1.60	2 / 3 / 4	38.00
CHPM300009	0.90	3.00	1.80	2 / 3 / 4	38.00

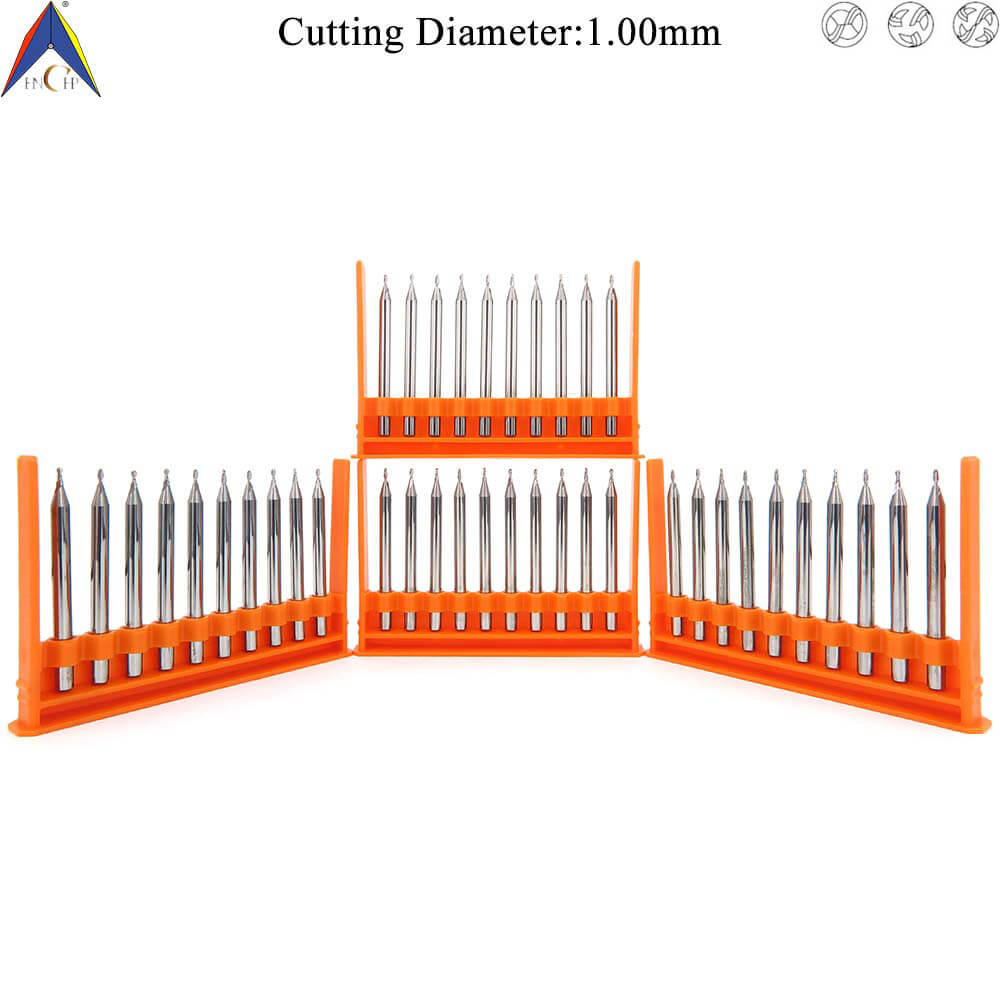

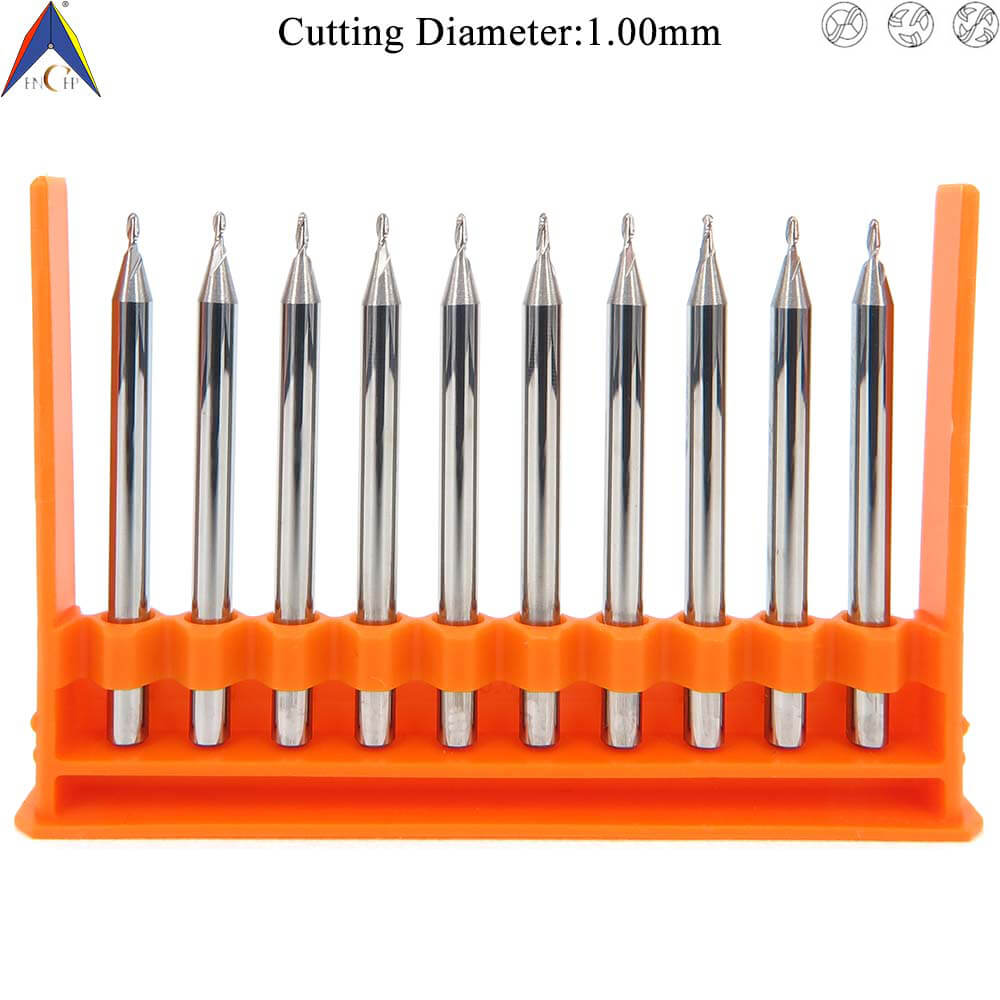

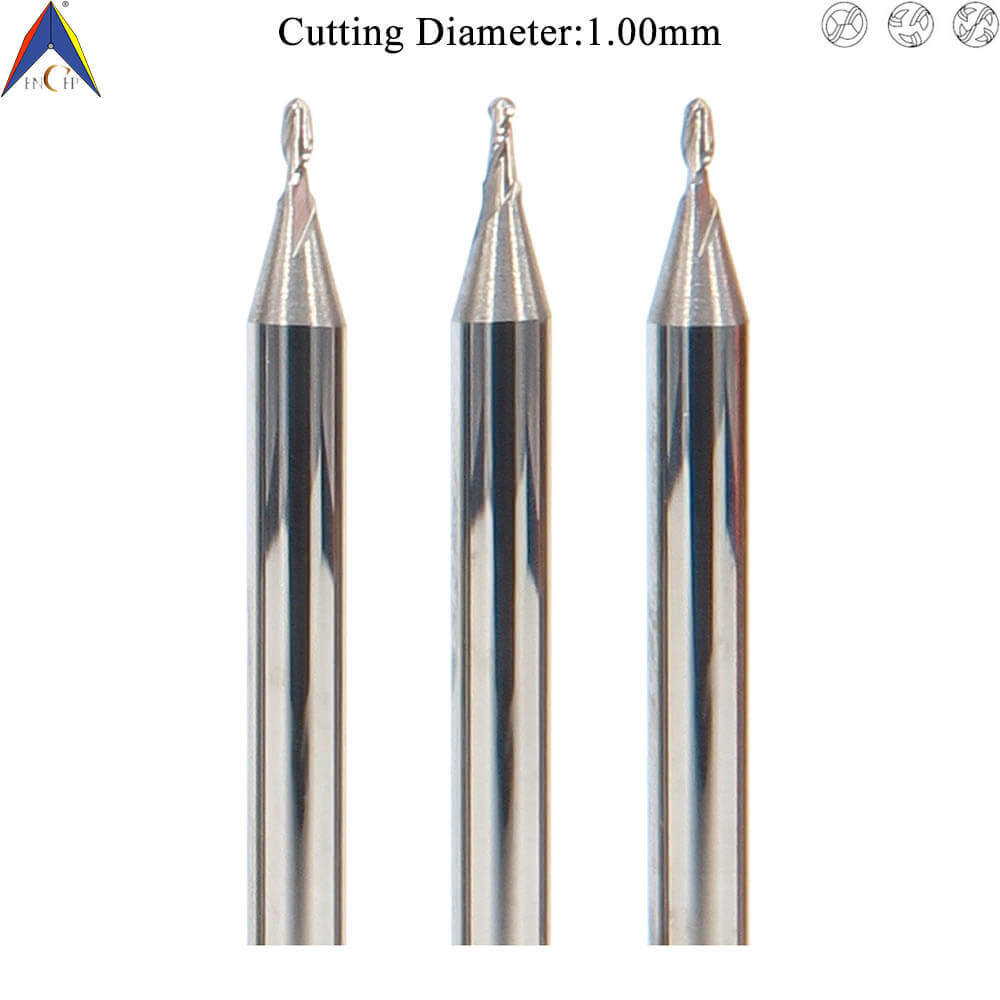

CHPM300010	1.00	3.00	2.00	2 / 3 / 4	38.00

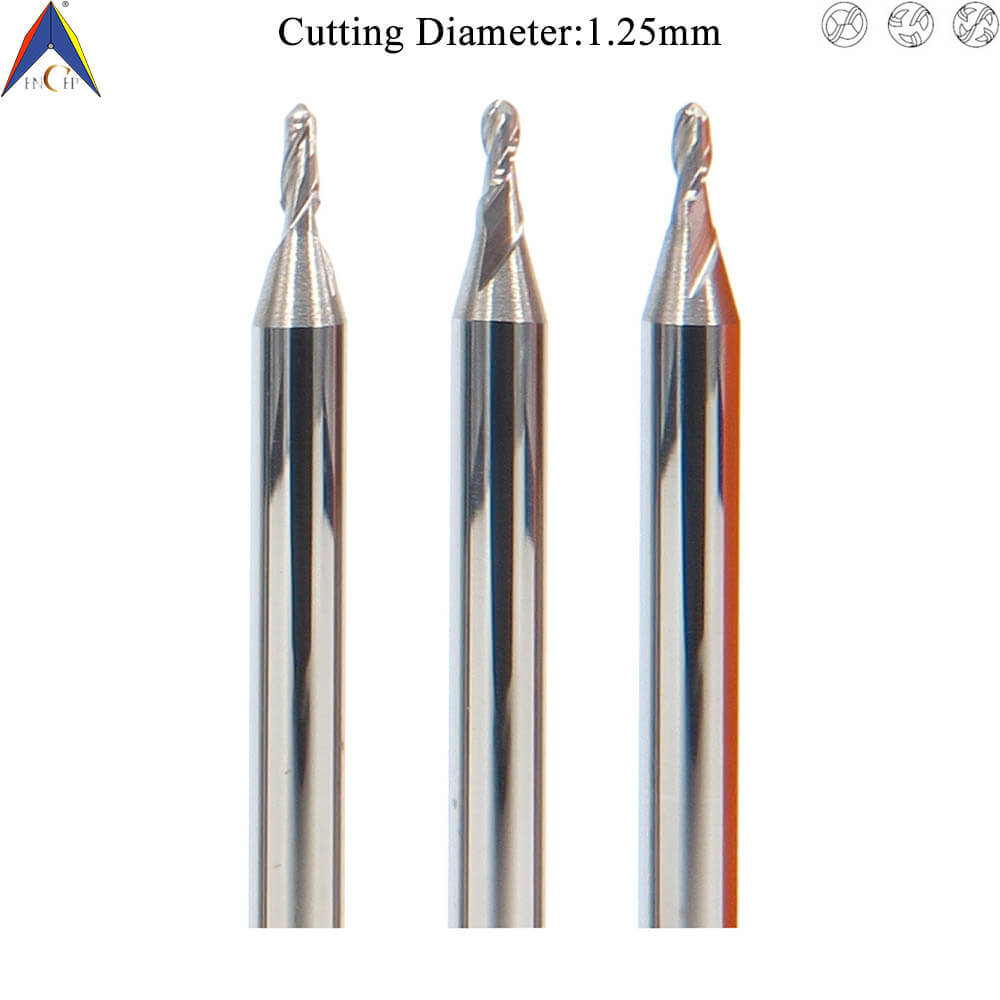

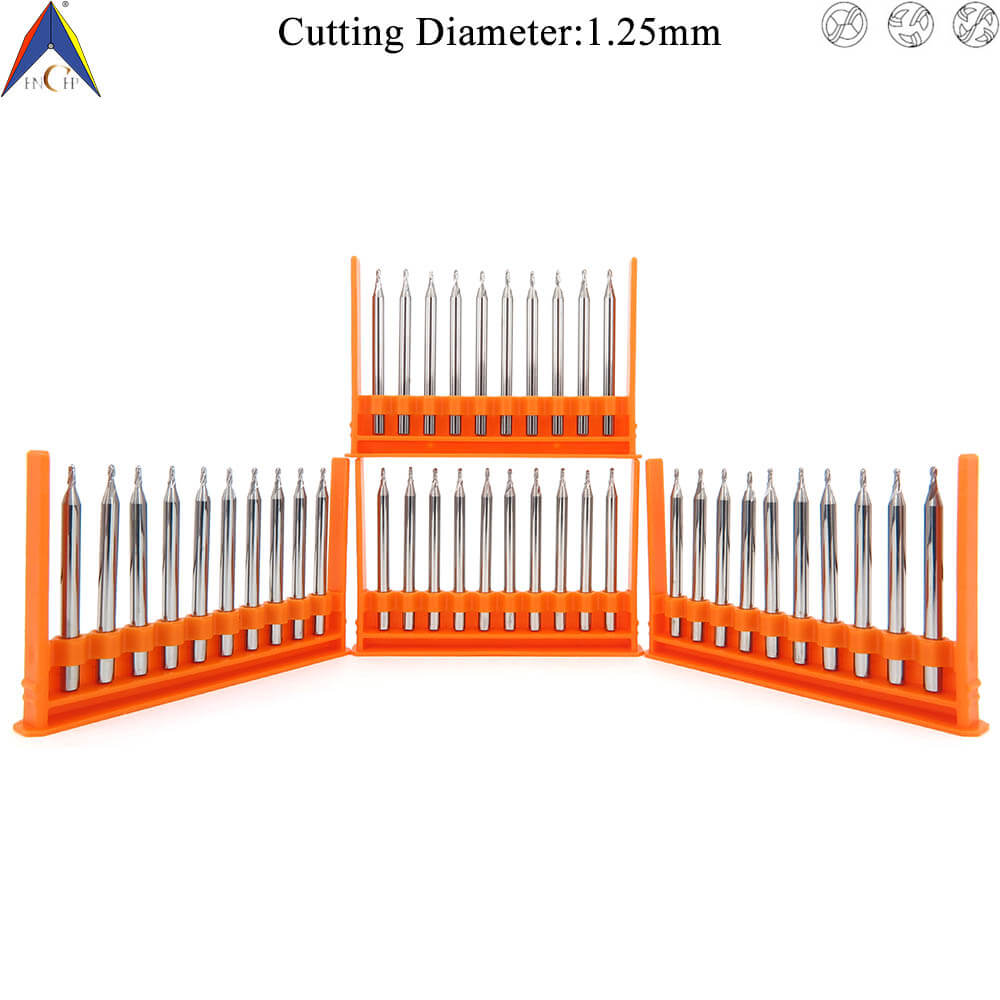

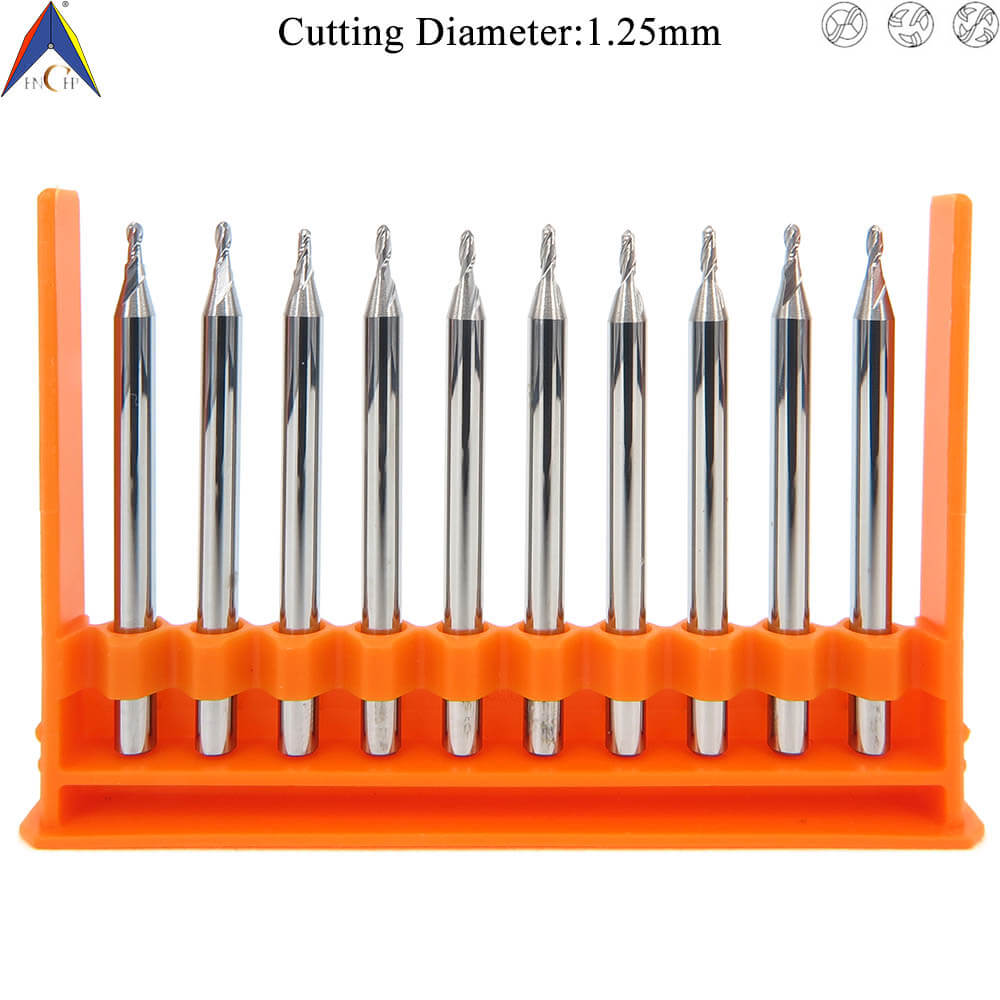

CHPM3000125	1.25	3.00	2.50	2 / 3 / 4	38.00

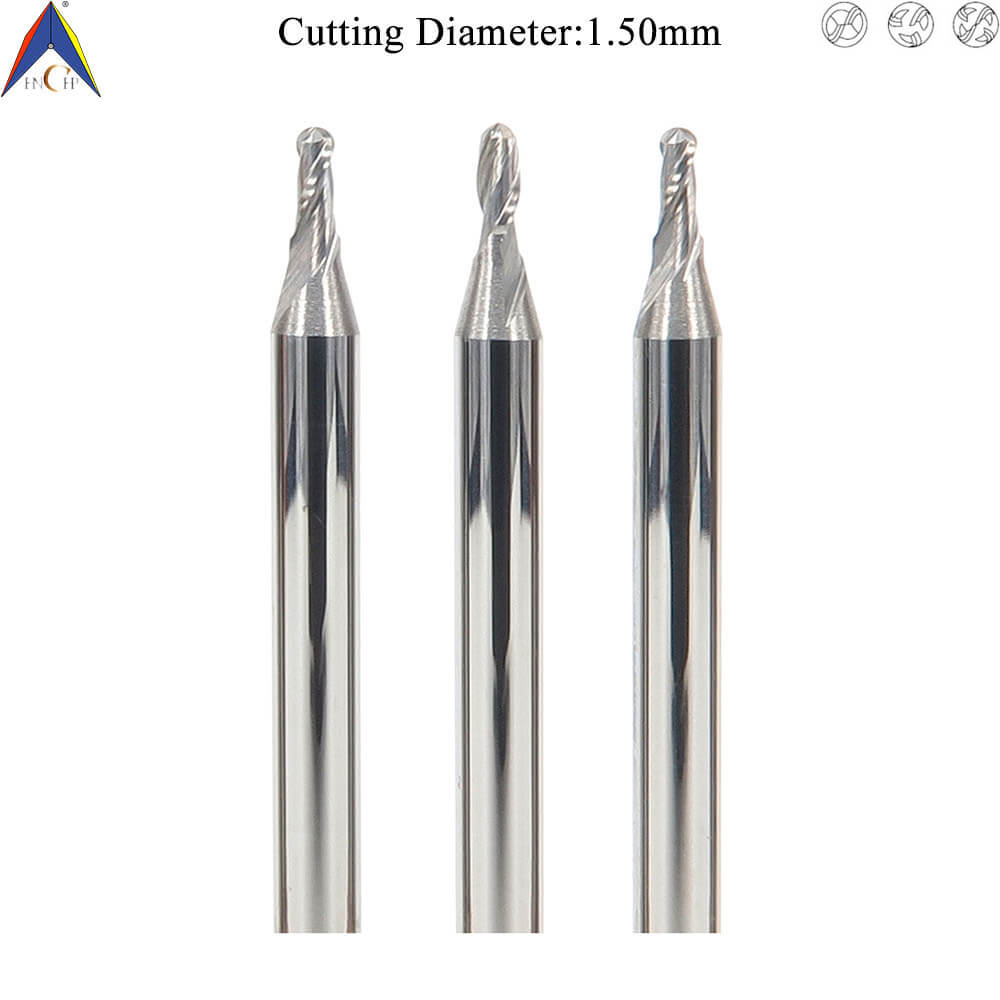

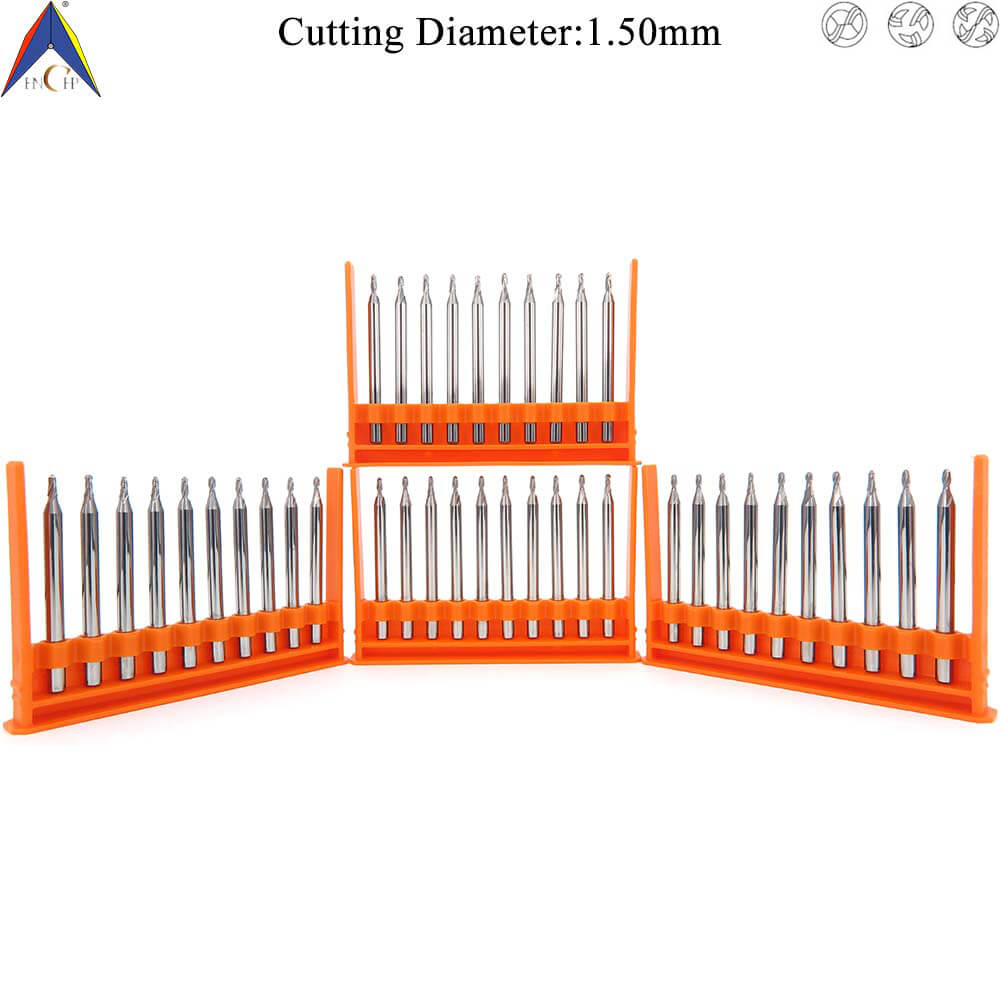

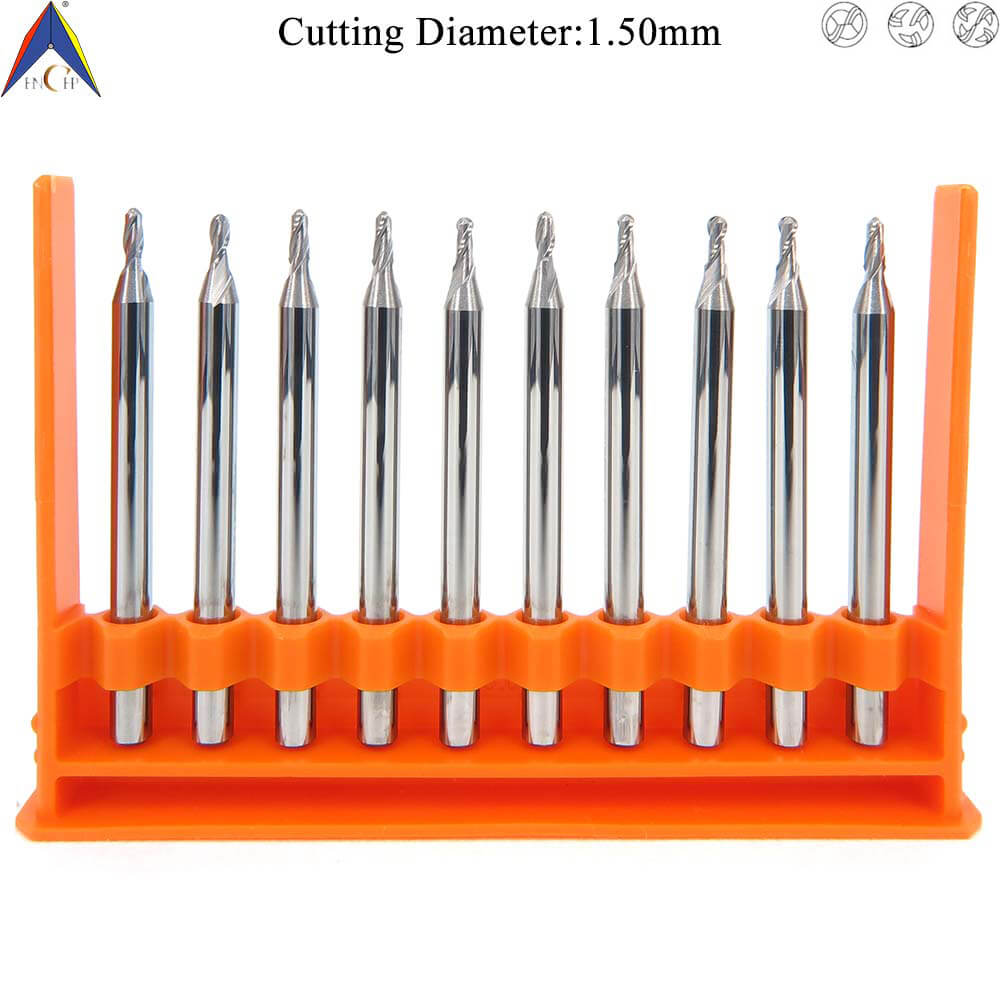

CHPM300015	1.50	3.00	3.00	2 / 3 / 4	38.00

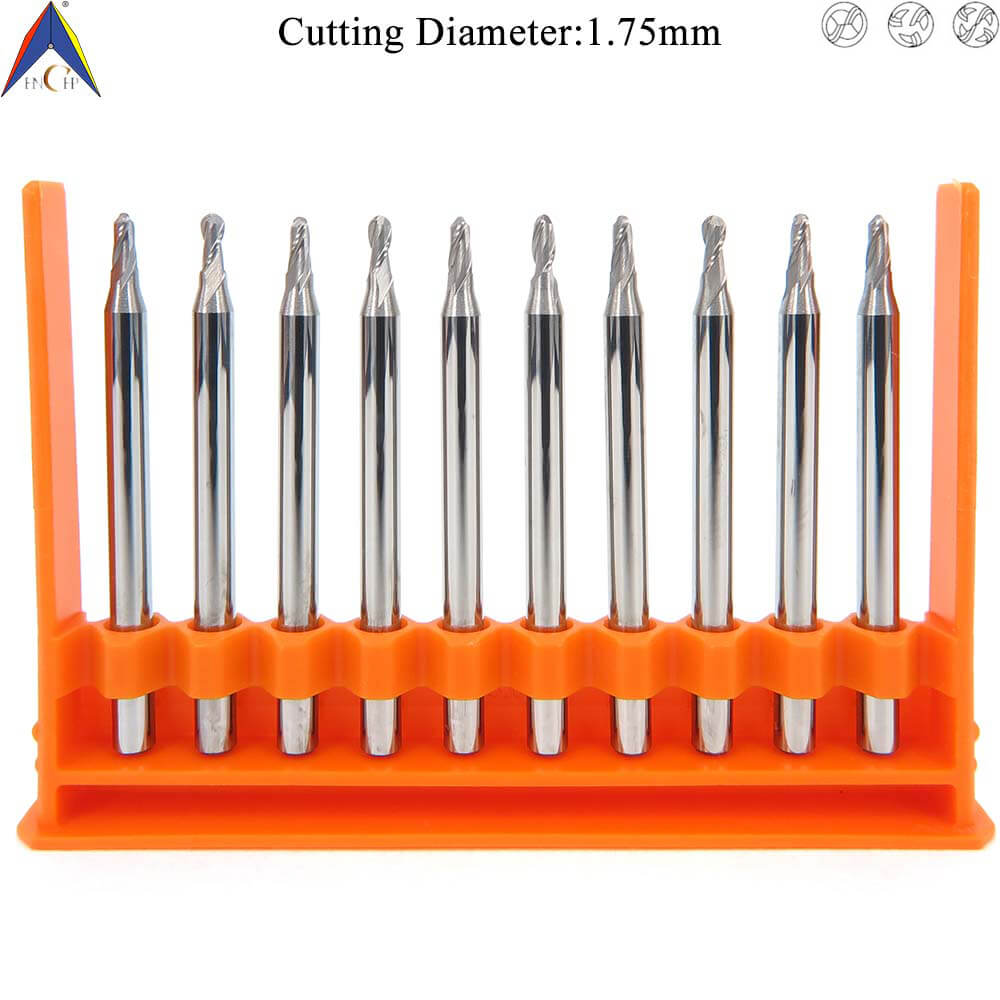

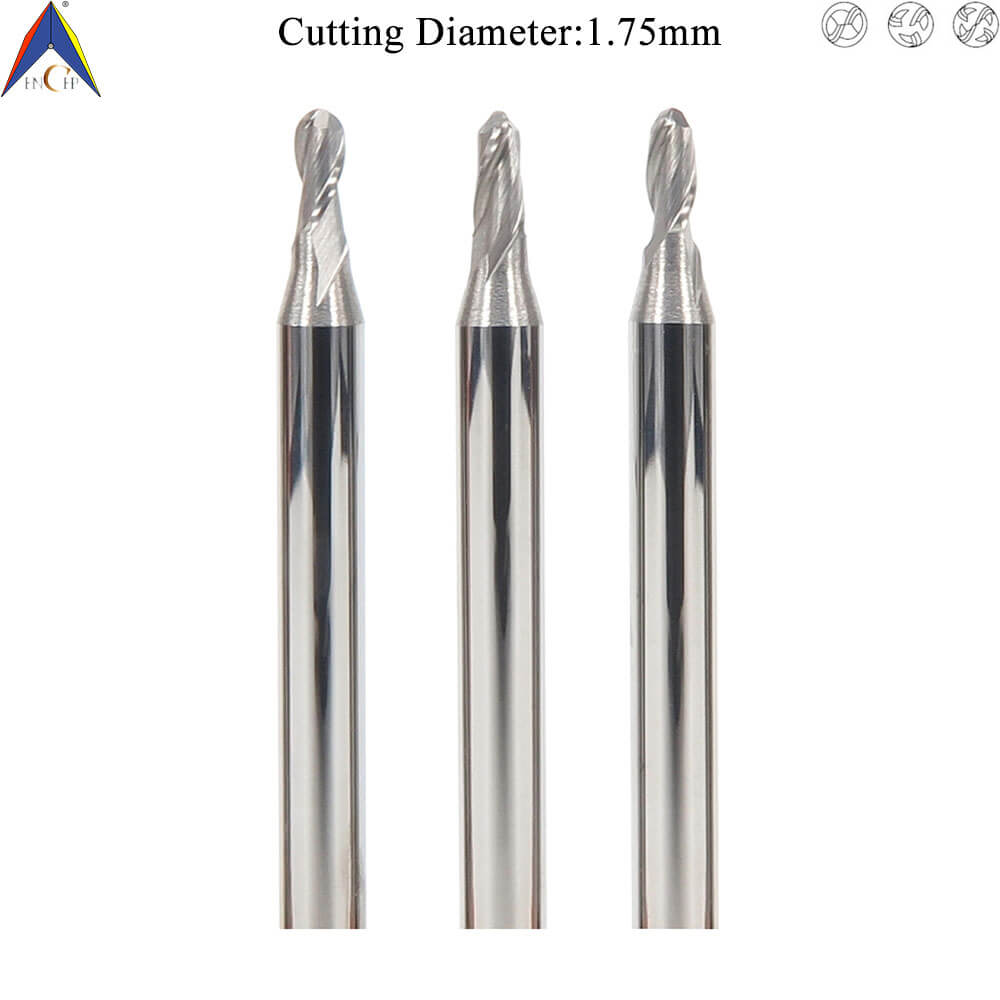

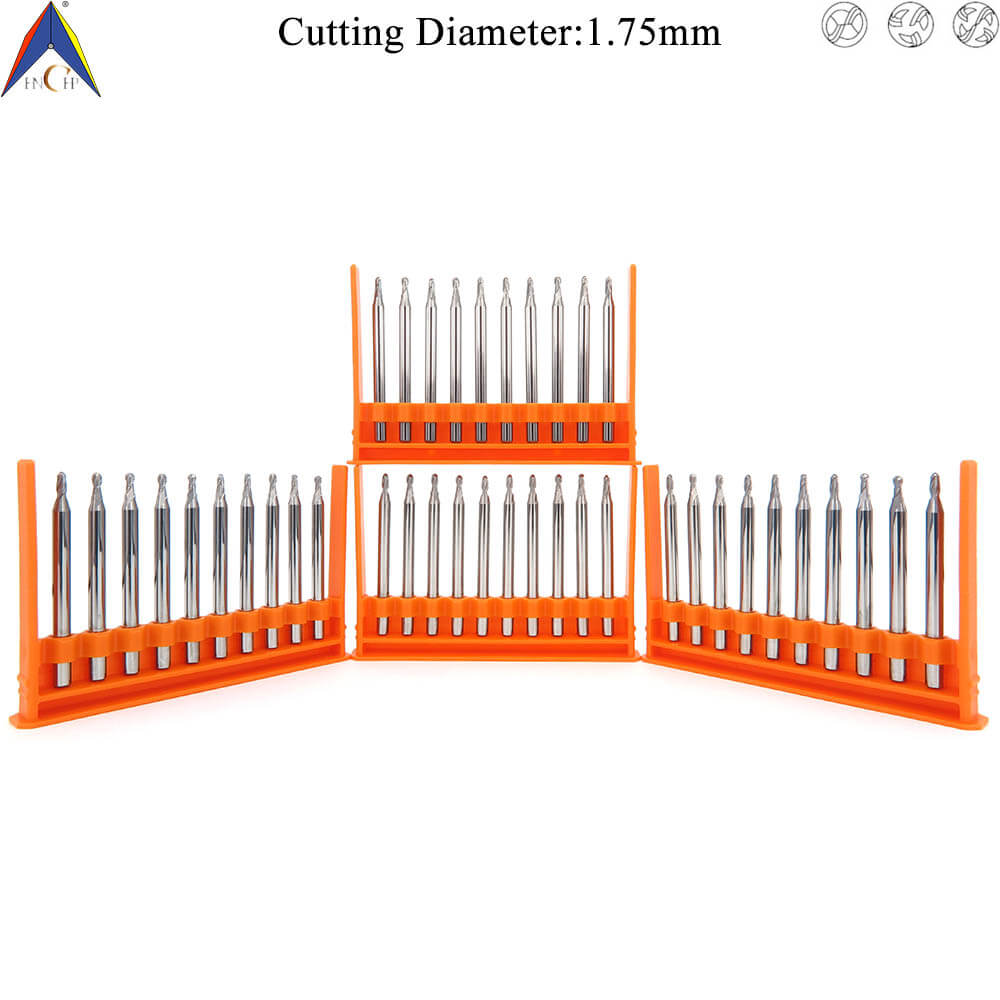

CHPM3000175	1.75	3.00	3.50	2 / 3 / 4	38.00

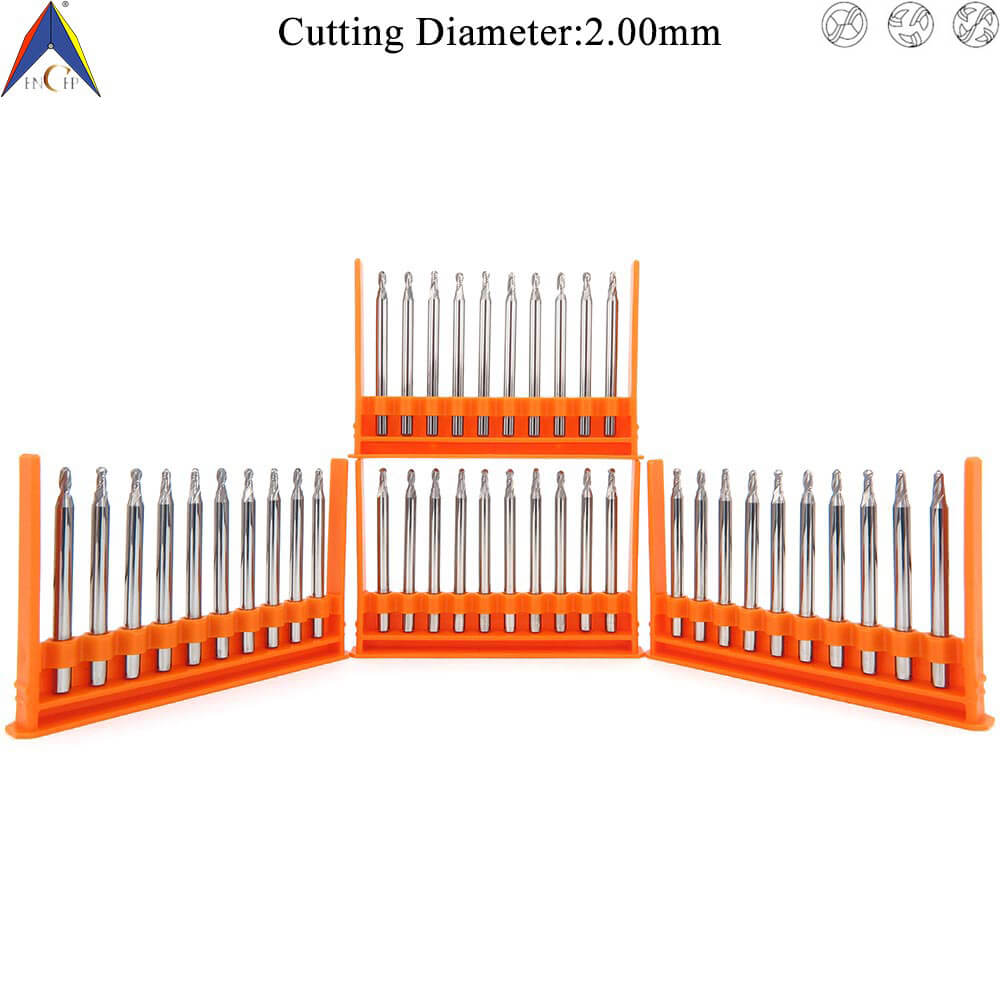

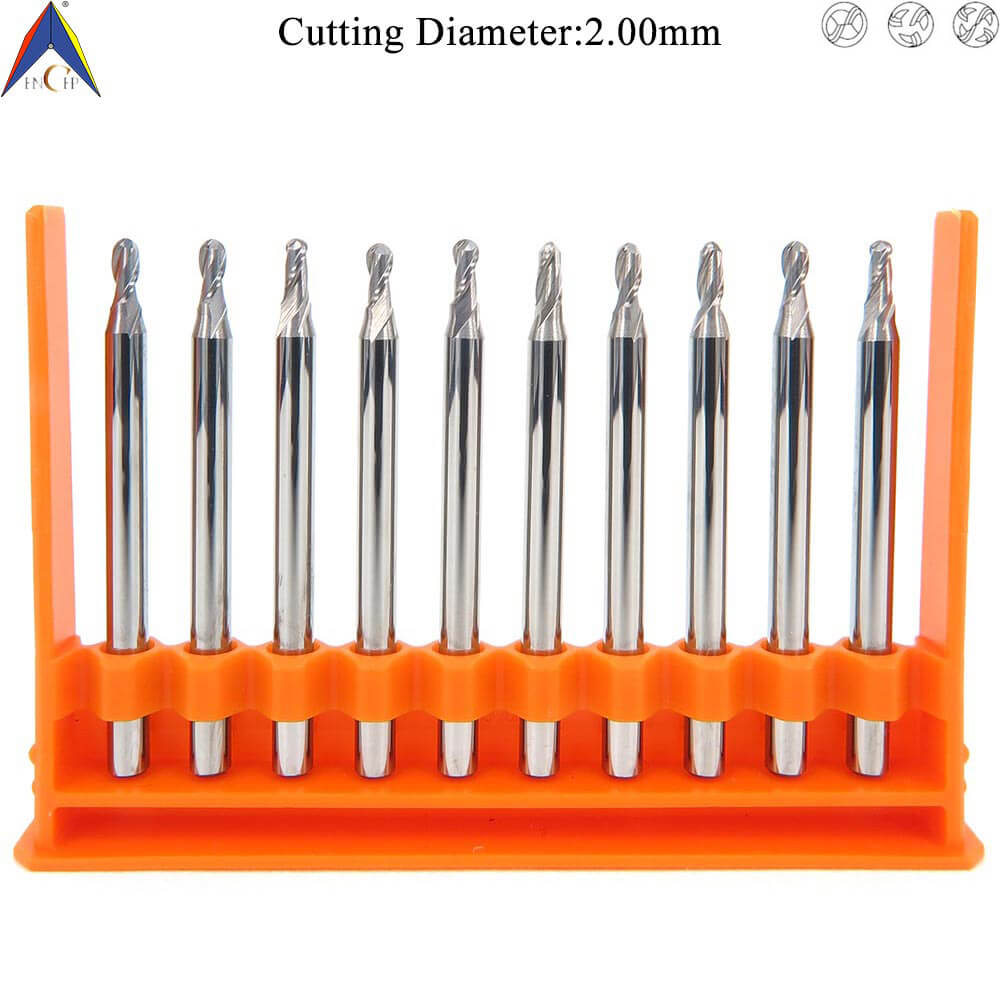

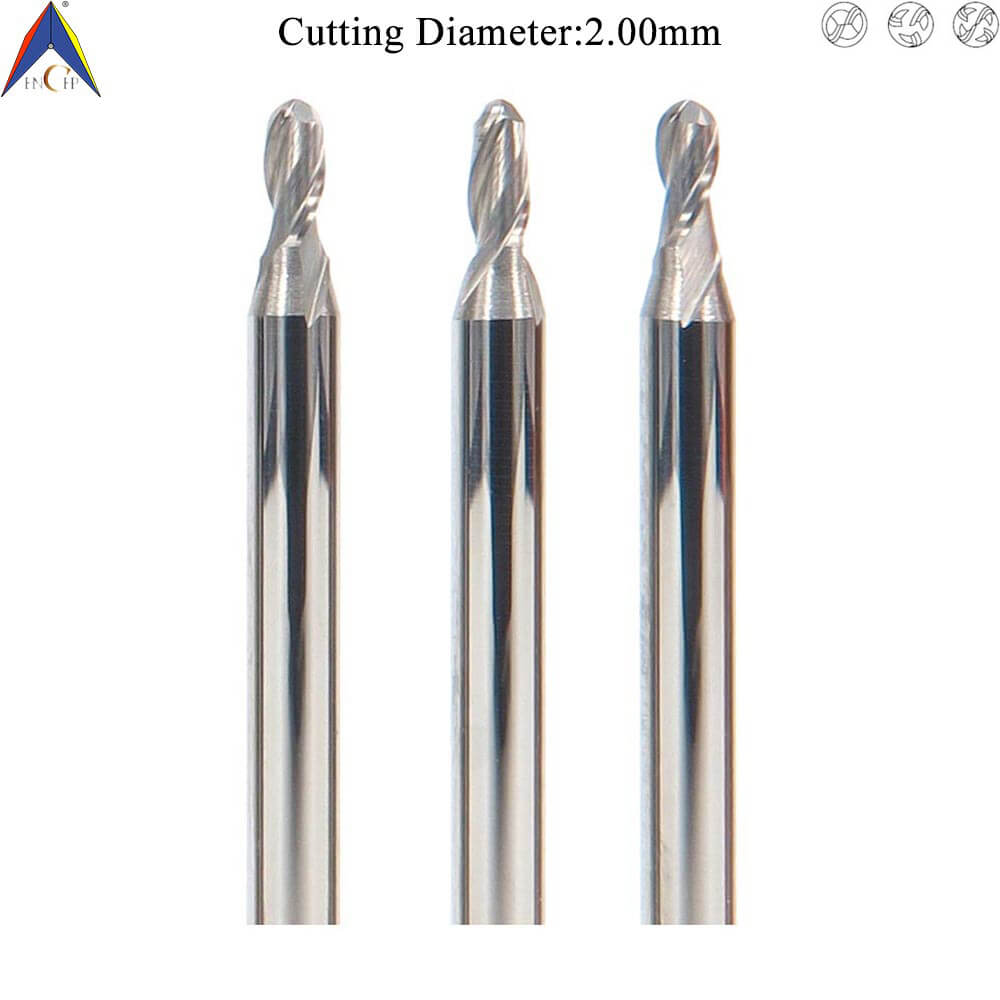

CHPM300020	2.00	3.00	4.00	2 / 3 / 4	38.00

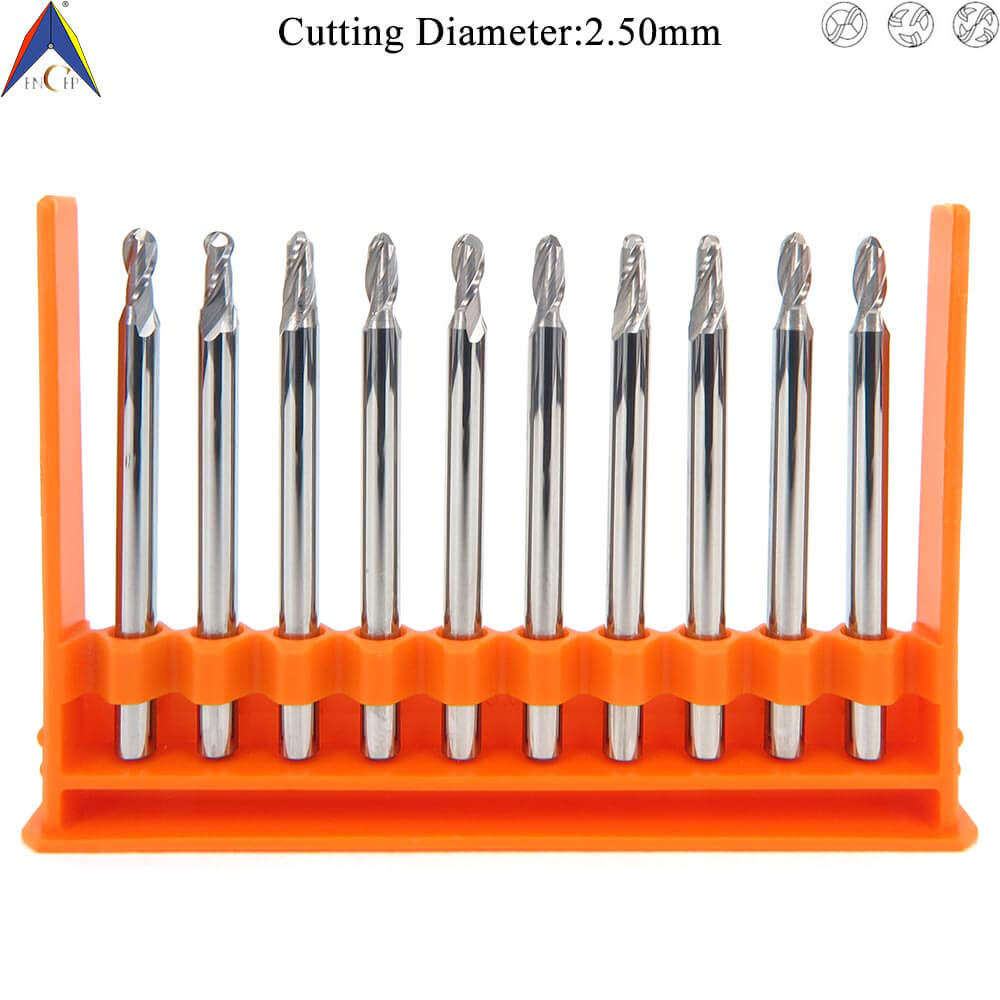

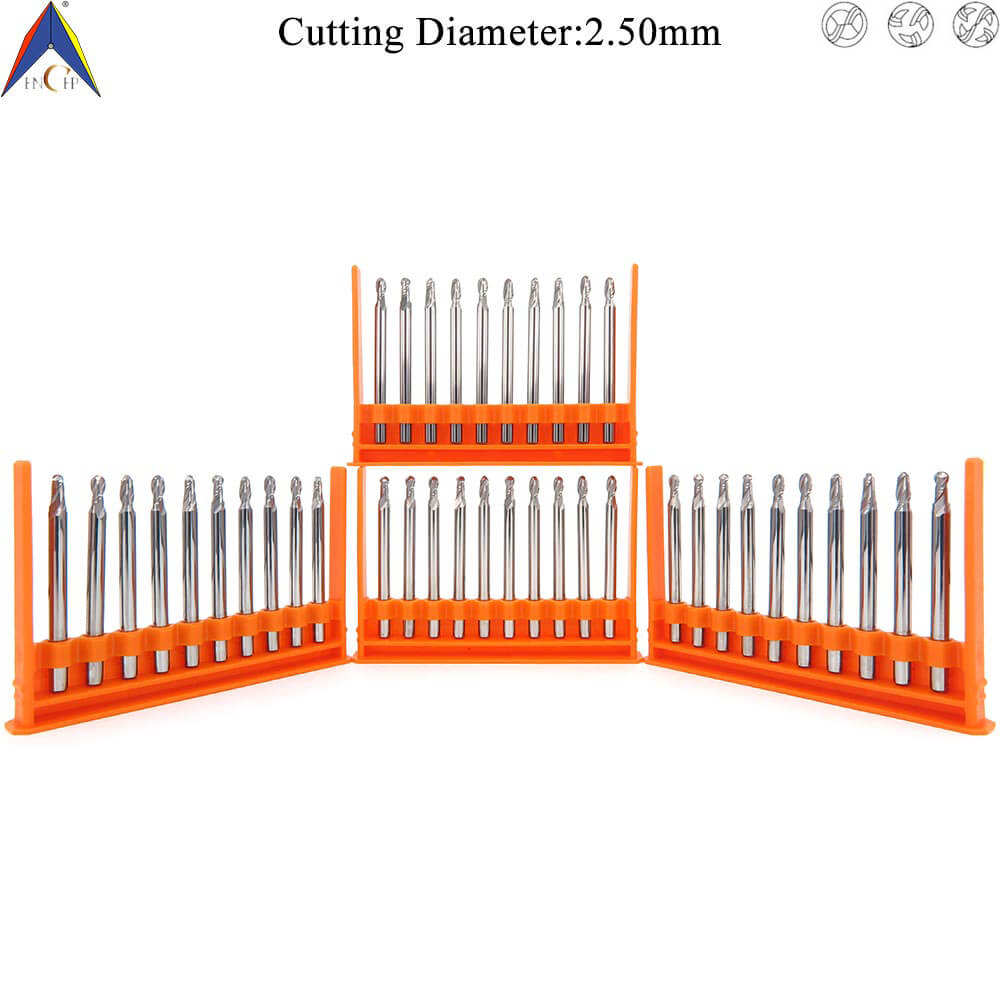

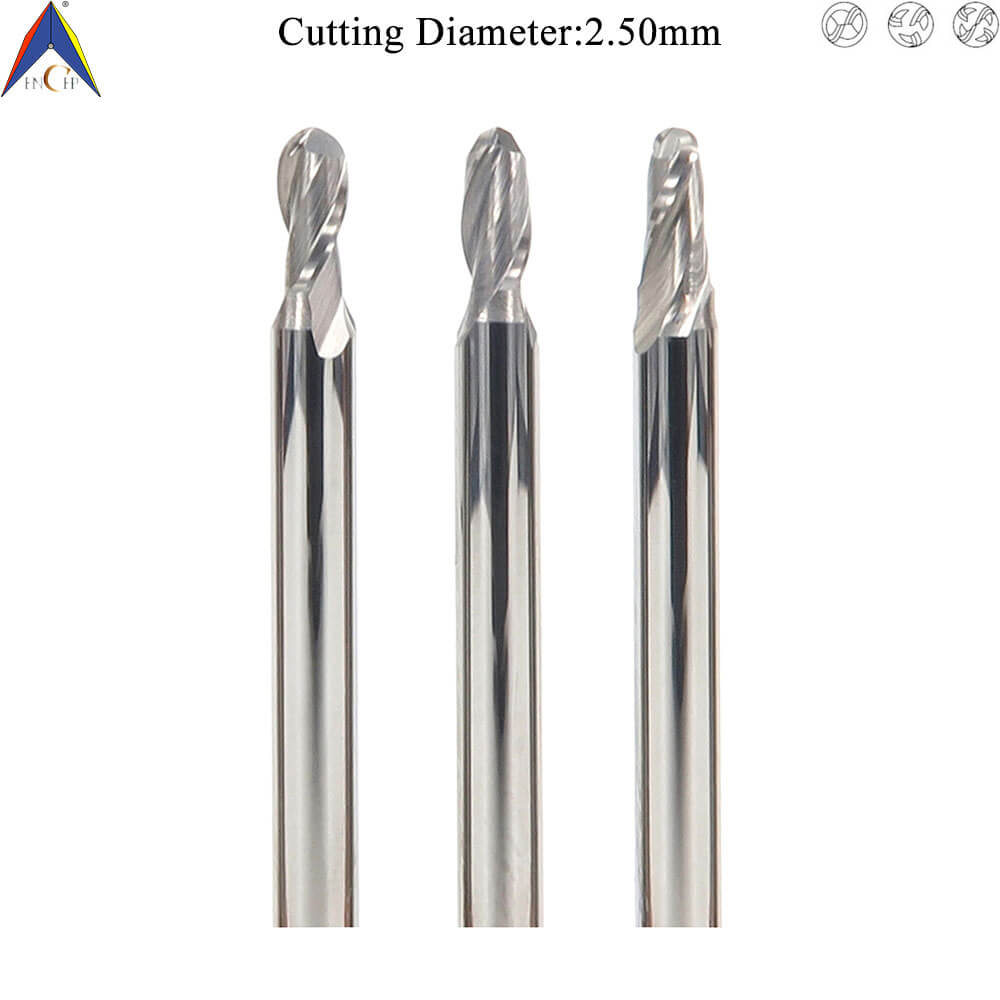

CHPM300025	2.50	3.00	5.00	2 / 3 / 4	38.00

Note: Beyond standard listed specs, all sizes, geometries, and profiles are fully customizable to meet specific project requirements. Contact us to discuss your custom specifications.

Applications and Industries

General Metalworking and Precision Machining

General Machining Operations

Precision Component Manufacturing

Mechanical Parts Production

Tool and Die Machining
CNC Milling and Industrial Production

CNC Milling Operations

High-Speed Machining Applications

Batch Production Environments

Automated Manufacturing Systems
Mold and Die Manufacturing

Mold Cavity Machining

Electrode Machining

Precision Contouring Operations

Complex Profile Machining
Aerospace, Automotive and Engineering Industries

Automotive Component Manufacturing

Aerospace Precision Machining

Industrial Equipment Production

General Engineering Applications

CHPM300 - 2 (3)(4) Flutes Solid Carbide Miniature Ball Nose End Mill: Suitable for slotting, profiling, contouring, side milling, pocket milling, finishing, and precision machining operations across a wide range of metalworking applications.

Key Features and Construction

Cutting Performance: Premium sub-micron solid carbide provides excellent sharpness, wear resistance, and stable cutting performance
Tool Precision: Precision CNC grinding ensures accurate geometry, sharp cutting edges, and consistent machining quality
Structural Strength: Solid carbide construction delivers exceptional rigidity and vibration resistance during high-speed machining
Chip Evacuation: Optimized flute geometries improve chip removal efficiency and reduce heat accumulation during continuous machining operations
Operational Stability: Precision-balanced tool design supports smooth cutting performance and stable machining results at high spindle speeds
Edge Durability: Advanced grinding technology improves edge retention and extends tool service life in demanding machining environments
Shank Precision: Precision-ground shanks ensure accurate fit, high concentricity, and stable clamping performance
Tool Coating Options: Available uncoated or with advanced coatings such as TiN, TiCN, TiAlN, AlTiN, AlCrN and other specialized coatings according to machining requirements
Customization Capability: Custom flute designs, coatings, dimensions, corner configurations, and cutting geometries are available for specialized machining requirements
Packaging Options: Products are supplied in protective plastic tubes, storage boxes, or reinforced cartons according to order requirements

Machine Compatibility

Engineered for Use on the Following Machines (Depending on Tool Type and Specification):

CNC Machining Centers: Suitable for precision milling, profiling, contouring, and production machining applications
Vertical and Horizontal Milling Machines: Ideal for general machining, precision component manufacturing, and industrial production operations
High-Speed Machining Equipment: Suitable for high-efficiency machining and precision finishing applications
Automated Production Systems: Compatible with industrial manufacturing environments and automated machining systems
Other Metalworking Equipment: Compatible with various professional machining systems where appropriate
Note: Tool selection must follow machine compatibility, spindle speed recommendations, feed rate requirements, and machining guidelines.

Key Advantages

High Wear Resistance: Premium sub-micron solid carbide construction ensures long tool life and consistent machining performance
Excellent Machining Precision: Precision-ground geometries provide accurate dimensions and repeatable machining results
Stable High-Speed Machining: Rigid solid carbide structure minimizes vibration during demanding machining operations
Efficient Chip Evacuation: Optimized flute designs improve cutting efficiency and reduce chip accumulation during machining
Superior Surface Finish: Precision-ground cutting edges help achieve smooth workpiece surfaces and reduced machining marks
Wide Material Compatibility: Suitable for steels, stainless steels, cast irons, non-ferrous metals, and selected engineering materials
Flexible Coating Solutions: Multiple coating options optimize tool performance for different materials and machining conditions
Cost-Efficient Machining Performance: Extended tool life and stable cutting performance help reduce overall machining cost per component
Flexible Customization Options: Custom geometries, coatings, and dimensions available for specialized machining requirements
Professional Protective Packaging: Standardized packaging ensures safe transportation and storage
CHPM300 - 2 (3)(4) Flutes Solid Carbide Miniature Ball Nose End Mill: Engineered for stable machining performance, high precision, and reliable tool life in professional metalworking environments.

Why Choose Our Solid Carbide Cutting Tools

With extensive experience in precision cutting tool manufacturing, Conquer delivers reliable and high-performance solutions for modern metalworking and industrial machining applications. Our solid carbide metalworking cutting tools combine premium carbide materials, precision grinding technology, advanced coating options, and optimized cutting geometries to ensure efficient machining, excellent surface quality, and long-lasting performance. Trusted by manufacturers, machine shops, and CNC professionals worldwide, they provide accurate and consistent machining results for industrial production, precision engineering, mold manufacturing, and advanced metalworking applications.
