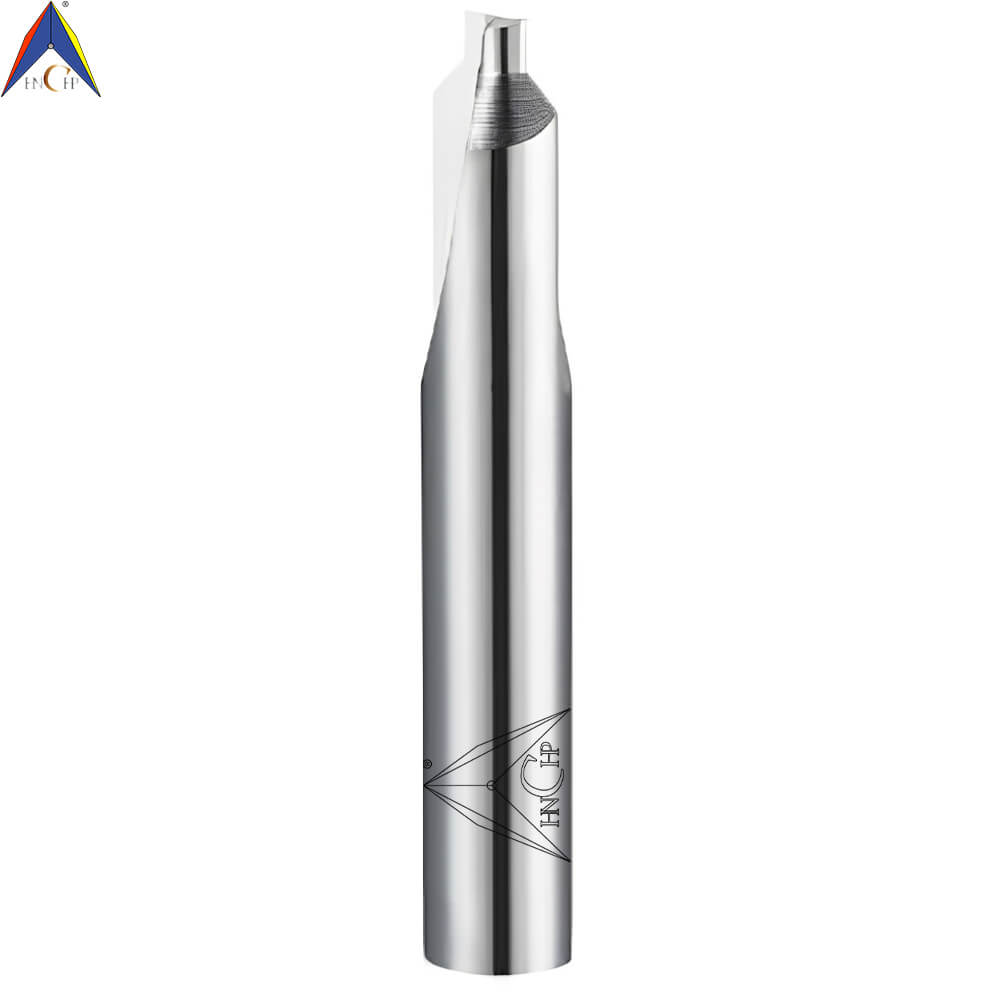

CHP205 - 2 Flutes Solid Carbide Combination Graver

Product Overview

Conquer High Precision Tools manufactures high-performance solid carbide cutting tools engineered for precision machining, long tool life, and consistent cutting performance in woodworking applications.

Each tool is manufactured from premium sub-micron solid carbide for exceptional rigidity, wear resistance, and machining stability. Designed for high-speed cutting, efficient chip evacuation, and clean finishing performance across wood-based materials, plastics, composite materials, and selected non-ferrous metal applications.

CHP205 - 2 Flutes Solid Carbide Combination Graver is a precision cutting tool designed for stable machining performance, durability, and consistent cutting results in professional CNC woodworking applications.

Suitable Materials

Wood and Wood-Based Materials: Solid wood, softwood, hardwood, plywood, MDF, HDF, particleboard, melamine boards, laminated panels, veneer

Engineered and Laminated Surfaces: HPL (High-Pressure Laminate), CPL (Continuous Pressure Laminate), compact laminate, phenolic resin panels

Plastics and Non-Metallics: Acrylic, PVC, polycarbonate (PC), PETG, ABS, nylon, artificial stone, solid surface materials, composite or synthetic panels

Non-Ferrous Metals: Aluminum, brass, copper, bronze (light to medium machining depending on tool geometry and rigidity, selected applications)

Electronics and Precision Materials: PCB boards, FR4, epoxy resin boards, insulating materials, carbon fiber composites, optical acrylic, lens-grade acrylic materials, camera and smartphone optical components (non-metallic), engraving and micro-machining applications (selected applications depending on tool type)

Get a Quote

Technical Specifications

CHP205 - 2 Flutes Solid Carbide Combination Graver
Part No.	Cutting Diameter	Cutting Length	Shank Diameter	Flute Number	Overall Length
CHP20514050	0.50	0.20	4 or 6	2	38.00
CHP20514060	0.60	0.30	4 or 6	2	38.00
CHP20514070	0.70	0.40	4 or 6	2	38.00
CHP20514080	0.80	0.50	4 or 6	2	38.00
CHP20514081	0.80	0.80	4 or 6	2	38.00
CHP20514090	0.90	0.60	4 or 6	2	38.00
CHP20514100	1.00	0.70	4 or 6	2	38.00
CHP20514101	1.00	1.00	4 or 6	2	38.00
CHP20514110	1.10	0.80	4 or 6	2	38.00
CHP20514120	1.20	0.90	4 or 6	2	38.00
CHP20514121	1.20	1.00	4 or 6	2	38.00
CHP20514122	1.20	1.20	4 or 6	2	38.00
CHP20514130	1.30	1.00	4 or 6	2	38.00
CHP20514140	1.40	1.10	4 or 6	2	38.00
CHP20514150	1.50	1.20	4 or 6	2	38.00
CHP20514151	1.50	1.50	4 or 6	2	38.00
CHP20514160	1.60	1.30	4 or 6	2	38.00
CHP20514170	1.70	1.40	4 or 6	2	38.00
CHP20514180	1.80	1.50	4 or 6	2	38.00
CHP20514190	1.90	1.60	4 or 6	2	38.00
CHP20514200	2.00	1.80	4 or 6	2	38.00
CHP20514201	2.00	2.00	4 or 6	2	38.00
CHP20514250	2.50	2.00	4 or 6	2	38.00
Spindle Speed: 12,000-40,000 RPM

Note: Beyond standard listed specs, all sizes, geometries, and profiles are fully customizable to meet specific project requirements. Contact us to discuss your custom specifications.

Applications and Industries

Woodworking and Furniture Manufacturing

Professional Woodworking Workshops

Custom Furniture Production

Cabinetmaking and Joinery
CNC Machining and Panel Processing

CNC Routing and Grooving Operations

Wood-Based Panel Processing

Precision Cutting Applications
Signage and Decorative Fabrication

Sign Making and Lettering

Decorative Panel Processing

Plastic and Composite Material Machining
Industrial and Specialized Applications

Prototype and Custom Fabrication

DIY and Hobby Projects

Small-Scale Industrial Production

CHP205 - 2 Flutes Solid Carbide Combination Graver: Suitable for precision cutting, grooving, trimming, engraving, and CNC machining operations across woodworking, plastics, composite materials, and selected non-ferrous metal applications.

Key Features and Construction

Cutting Performance: Premium sub-micron solid carbide provides excellent sharpness, wear resistance, and stable cutting performance
Tool Precision: Precision CNC grinding ensures accurate geometry, sharp cutting edges, and consistent machining quality
Structural Strength: Solid carbide construction delivers exceptional rigidity and vibration resistance during high-speed machining
Chip Evacuation: Optimized flute geometries improve chip removal efficiency and reduce heat accumulation during continuous cutting operations
Operational Stability: Precision-balanced tool design supports smooth cutting performance and stable machining results at high spindle speeds
Edge Durability: Advanced grinding technology improves edge retention and extends tool service life in demanding machining environments
Shank Precision: Precision-ground shanks ensure accurate fit, high concentricity, and stable clamping performance
Customization Capability: Custom flute designs, coatings, dimensions, and cutting geometries are available for specialized machining requirements
Surface Finish Options: Available in polished, coated, or special surface treatment configurations according to application requirements
Packaging Options: Products are supplied in protective plastic tubes, storage boxes, or reinforced cartons according to order requirements

Machine Compatibility

Engineered for Use on the Following Machines (Depending on Tool Type and Specification):

CNC Routers and CNC Machining Centers: Suitable for precision routing, grooving, engraving, and production machining applications
Nested-Based CNC Processing Equipment: Ideal for industrial panel processing and automated manufacturing operations
Compact / Benchtop CNC Routers: Suitable for light industrial use, prototype production, and educational environments
Specialized CNC Engraving and Cutting Equipment: Applicable for precision engraving and detailed machining operations
Note: Tool selection must follow machine compatibility, spindle speed recommendations, feed rate requirements, and safety guidelines.

Key Advantages

High Wear Resistance: Premium sub-micron solid carbide construction ensures long tool life and consistent machining performance
Excellent Cutting Precision: Precision-ground geometries provide clean cutting edges and accurate machining results
Stable High-Speed Machining: Rigid solid carbide structure minimizes vibration during high-speed operations
Efficient Chip Evacuation: Optimized flute designs improve cutting efficiency and reduce material buildup during machining
Superior Surface Finish: Precision-ground cutting edges ensure clean, smooth workpiece surfaces with reduced chipping and tear-out during machining
Wide Material Compatibility: Suitable for wood, engineered panels, plastics, composite materials, and selected non-ferrous metals
Cost-Efficient Machining Performance: Extended tool life and stable cutting performance help reduce overall machining cost per part
Flexible Customization Options: Custom geometries, coatings, and dimensions available for specialized machining requirements
Professional Protective Packaging: Standardized packaging ensures safe transportation and storage
CHP205 - 2 Flutes Solid Carbide Combination Graver: Engineered for stable cutting performance, high precision machining, and reliable tool life in professional CNC woodworking environments.

Why Choose Our Solid Carbide Cutting Tools

With extensive experience in precision cutting tool manufacturing, Conquer delivers reliable and high-performance solutions for modern CNC woodworking and industrial machining applications. Our solid carbide cutting tools combine premium carbide materials, precision grinding technology, and optimized cutting geometries to ensure efficient machining, excellent surface quality, and long-lasting performance. Trusted by manufacturers, workshops, and CNC professionals worldwide, they provide accurate and consistent cutting results for industrial production, custom fabrication, and advanced woodworking applications.
