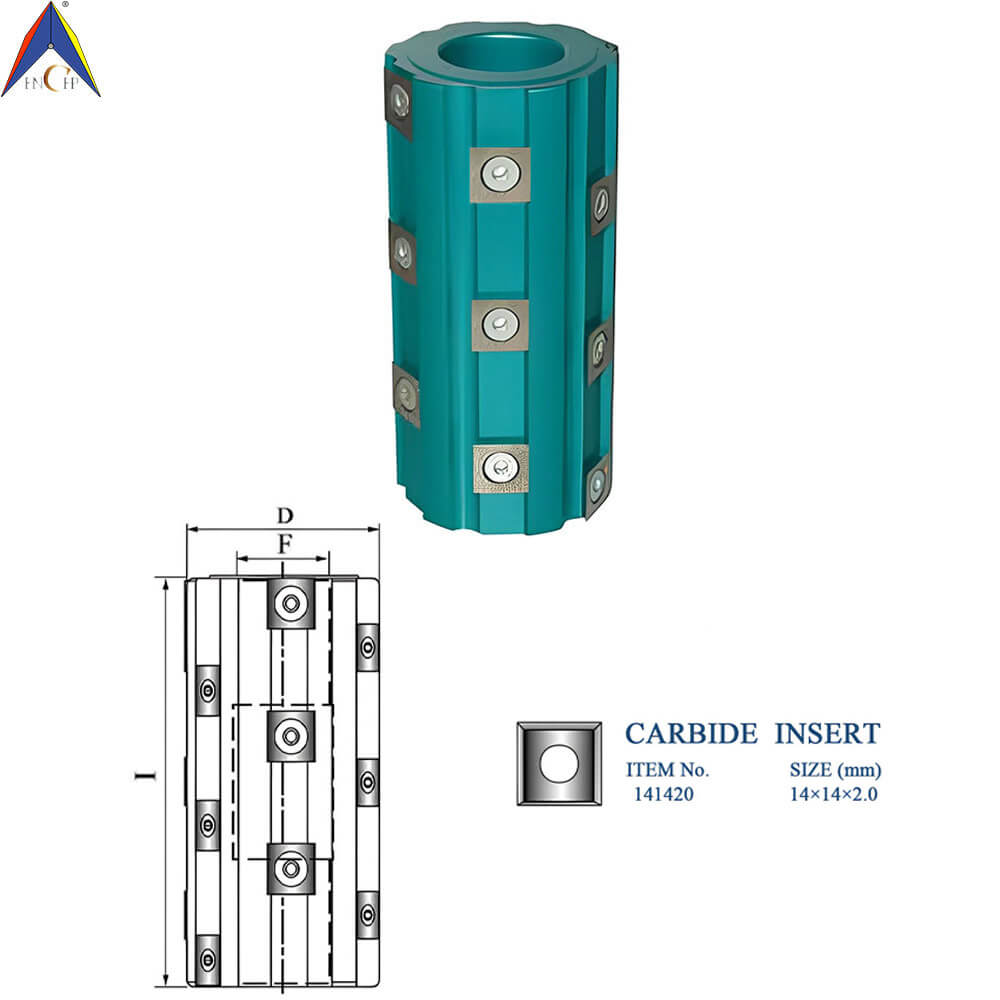

CHPJ003.01 - Carbide Insert Straight Body Cutterhead For Planing

Technical Specifications

Applications and Industries

• Woodworking and Joinery

  Professional Woodworking Workshops

  Custom Furniture Production

  Cabinetmaking and Joinery

• CNC Panel Processing and Industrial Machining

  CNC Panel Processing Operations

  Wood-Based Panel Sizing and Surfacing

  Continuous Industrial Machining Applications

  Precision Grooving, Rebating, and Jointing Operations

• Architectural and Decorative Manufacturing

  Decorative Panel Fabrication

  Architectural Component Processing

  Interior Trim and Surface Processing

• Professional and Industrial Use

  Industrial Woodworking Production Lines

  Composite Material Machining Applications

  High-Efficiency Material Removal and Surfacing Operations

• CHPJ003.01 - Carbide Insert Straight Body Cutterhead For Planing: Suitable for surfacing, grooving, rebating, jointing, trimming, profiling, and precision machining operations across woodworking, composite materials, plastics, and selected non-ferrous metal applications.

Key Features and Construction

• Insert Cutting System: Premium micro-grain carbide inserts provide excellent sharpness, wear resistance, and long-lasting machining performance
• Replaceable Insert Design: Replaceable carbide inserts allow rapid cutting edge replacement without replacing the entire cutterhead body, reducing maintenance time and tooling costs
• Machining Precision: Precision-machined insert seats ensure stable insert positioning, accurate cutting geometry, and repeatable machining accuracy
• Structural Strength: High-strength lightweight alloy body delivers excellent rigidity, durability, and vibration resistance during high-speed machining operations
• Operational Stability: Precision-balanced cutterhead construction reduces vibration and supports smooth cutting performance at high spindle speeds
• Insert Clamping Technology: High-precision insert locking system ensures secure insert positioning and reliable machining stability during continuous industrial operation
• Body Balance Accuracy: Dynamically balanced cutterhead body improves rotational stability, reduces spindle load, and supports smooth material removal performance
• Surface Machining Quality: Optimized insert geometries produce smooth workpiece surfaces with reduced chipping, tear-out, and machining marks
• Customization Capability: Custom cutterhead dimensions, insert configurations, body structures, and machining profiles are available for specialized production requirement
• Surface Finish Options: Cutterhead bodies can be blackened, coated, anodized, polished, or surface-treated according to application and corrosion-resistance requirements
• Packaging Options: Products are supplied in protective storage cases, reinforced cartons, or industrial packaging according to order requirements

Machine Compatibility

Engineered for Use on the Following Machines (Depending on Cutterhead Type and Safety Rating):

• CNC Woodworking Machines and Machining Centers: Suitable for industrial panel processing, surfacing, profiling, and precision machining operations
• Spindle Molders and Shaper Machines: Ideal for professional molding, jointing, profiling, and continuous production applications
• Four-Sided Moulders and Planer Machines: Suitable for industrial surfacing, trimming, sizing, and high-efficiency woodworking production operations
• Automatic Production and Processing Lines: Compatible with industrial woodworking automation systems and continuous machining environments
• Other Industrial Woodworking Equipment: Compatible with various professional woodworking and material processing machines where appropriate
• Note: Some cutterhead configurations are designed for specific industrial machinery and production conditions only. Always follow recommended operating parameters, spindle speed ratings, safety requirements, and machining guidelines.

Key Advantages

• Long Tool Service Life: Premium micro-grain carbide inserts provide excellent wear resistance and extended machining life in demanding production environments
• Reduced Tooling Costs: Replaceable insert system minimizes regrinding requirements and lowers long-term tooling replacement expenses
• Consistent Machining Accuracy: Precision insert positioning maintains stable cutting dimensions and repeatable machining quality during continuous operation
• Efficient Insert Replacement: Replaceable insert design minimizes downtime and improves production efficiency during insert indexing and maintenance
• Stable High-Speed Operation: Balanced cutterhead construction ensures smooth machining performance and reduced vibration during high-speed operation
• Superior Surface Finish: Optimized insert geometries deliver clean workpiece surfaces with reduced chipping, tear-out, and machining marks
• Flexible Application Range: Suitable for woodworking, panel processing, composite materials, plastics, and selected non-ferrous metal machining applications
• Custom Tooling Solutions: Custom cutterhead structures, insert profiles, and machining configurations available for specialized production requirements
• Professional Protective Packaging: Standardized packaging ensures safe transportation, secure storage, and reliable tool protection during handling
• Performance-to-Cost Efficiency: Replaceable insert technology and long insert life help reduce overall machining costs while maintaining stable production efficiency
• CHPJ003.01 - Carbide Insert Straight Body Cutterhead For Planing: Engineered for stable machining performance, long service life, and consistent cutting quality in industrial woodworking and CNC machining applications.

Why Choose Our Carbide Insert Cutterheads

With extensive experience in precision cutting tools, Conquer delivers reliable and high-performance solutions for modern woodworking and industrial machining applications. Our carbide insert cutterheads are engineered for demanding production environments, combining durable materials, precision manufacturing, and efficient replaceable insert technology. Trusted by professional woodworking manufacturers and industrial workshops alike, they provide accurate, stable, and cost-efficient machining performance for panel processing, furniture production, surfacing, profiling, and continuous industrial woodworking operations.
