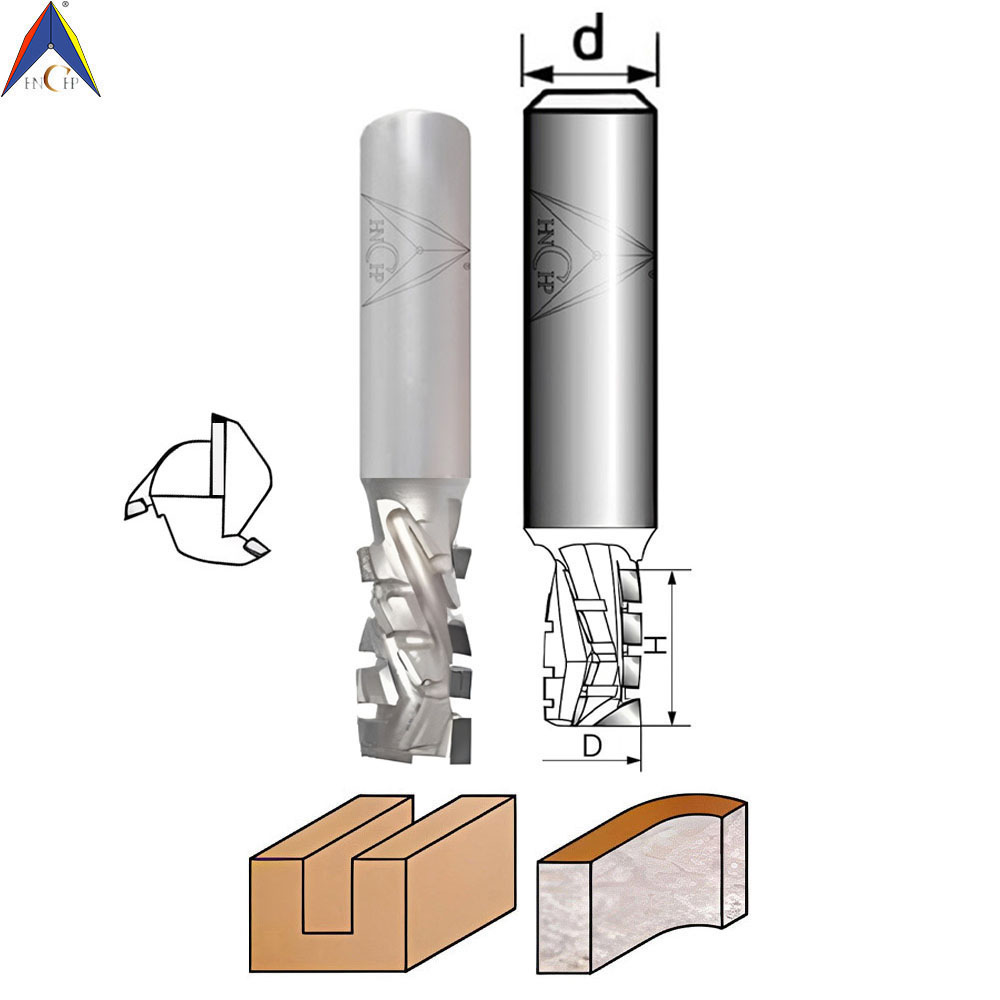

CHP-PCD5105 - PCD Spiral Router Bit (3+3 Flutes)

Technical Specifications

Applications and Industries

• Woodworking and Joinery

  Professional Woodworking Workshops

  Custom Furniture Production

  Cabinetmaking and Joinery

• CNC Routing and Panel Processing

  Nested-Based CNC Machining

  Industrial Panel Processing

  Continuous Production Routing Operations

  Precision Profiling of Wood-Based Materials

• Laminated and Abrasive Material Processing

  Melamine and Laminate Processing

  Composite Material Machining

  High-Wear Material Routing Applications

• Signage and Decorative Projects

  Sign Making and Lettering

  Decorative Panel Fabrication

  Architectural Moldings and Trim

• Industrial Manufacturing Applications

  Industrial Furniture Manufacturing

  Large-Scale Production Routing

  High-Speed CNC Machining Operations

• CHP-PCD5105 - PCD Spiral Router Bit (3+3 Flutes): Suitable for routing, carving, profiling, and shaping operations across woodworking, laminated materials, abrasive composites, plastics, and non-ferrous metal machining applications.

Key Features and Construction

• PCD Cutting Technology: Premium polycrystalline diamond (PCD) cutting edges provide exceptional wear resistance, superior edge retention, and ultra-long tool life
• Cutting Performance: High-performance PCD cutting geometry delivers clean cutting results, stable machining quality, and excellent surface finish consistency
• Edge Precision: Multi-stage precision grinding technology ensures high edge quality, accurate dimensions, and reliable machining accuracy
• Structural Strength: Heat-treated high-strength steel body delivers excellent durability, rigidity, and effective vibration resistance during high-speed machining
• Operational Stability: Precision-balanced tool body reduces vibration and supports smooth and stable operation at high spindle speeds
• Advanced Brazing Technology: High-strength brazing process ensures secure PCD tip bonding, reliable thermal stability, and long-term machining performance
• Shank Precision: H7 precision-ground shank guarantees accurate machine fit, high concentricity, and stable cutting performance
• Long-Life Tool Design: PCD cutting edges maintain sharpness significantly longer than conventional carbide tooling in abrasive material applications
• Customization Capability: Custom tool geometries, PCD tip configurations, and dimensions are available to meet specialized machining requirements
• Surface Finish Options: Tool bodies can be color-coated (e.g., red, white, black, cherry) or sandblasted for improved durability and professional appearance
• Packaging Options: Products are supplied in wooden boxes, plastic cases, or reinforced cartons according to order requirements

Machine Compatibility

Engineered for Use on the Following Machines (Depending on Bit Type and Safety Rating):

• CNC Routers and Nested-Based CNC Machining Centers: Suitable for industrial routing, panel processing, and high-volume production machining applications
• Table-Mounted Router Tables (Router Lifts / Fences): Ideal for professional edge profiling and controlled routing operations
• Industrial CNC Processing Equipment: Suitable for continuous production environments, automated panel processing, and precision profiling operations
• Compact / Benchtop CNC Routers: Suitable for professional workshops, precision machining environments, and advanced routing applications
• Other Routing and Processing Equipment: Compatible with various routing, profiling, and panel processing machines where appropriate
• Note: Some PCD tool profiles are designed primarily for CNC or table-mounted operation. Always follow recommended operating parameters, safety ratings, and machining guidelines.

Key Advantages

• Exceptional Wear Resistance: Premium PCD cutting edges provide outstanding resistance to wear and abrasion in demanding machining applications
• Ultra-Long Tool Service Life: PCD tooling delivers significantly longer cutting life compared with conventional carbide router bits
• Superior Edge Retention: PCD cutting edges maintain sharpness for extended production runs and continuous machining operations
• Reduced Tool Change Downtime: Extended tool life reduces machine stoppages and improves overall production efficiency
• Consistent Machining Quality: Precision-ground PCD cutting geometry ensures stable cutting dimensions and repeatable machining accuracy
• Smooth Surface Finish: High-precision cutting performance delivers clean cuts with reduced chipping, burning, and edge defects
• Stable High-Speed Operation: Balanced tool body construction supports reliable machining performance at high spindle speeds
• Excellent Performance on Abrasive Materials: Designed for long-term machining of laminated panels, melamine boards, composite materials, and other abrasive surfaces
• Custom Tooling Solutions: Custom PCD profiles and tool configurations are available for specialized industrial machining requirements
• Professional Protective Packaging: Standardized packaging ensures safe transportation and secure storage
• Performance-to-Cost Efficiency: Extended tool life and reduced maintenance requirements provide excellent long-term machining value
• CHP-PCD5105 - PCD Spiral Router Bit (3+3 Flutes): Engineered for exceptional wear resistance, long-term machining stability, and high-efficiency routing performance in professional and industrial CNC machining environments.

Why Choose Our Router Bits

With extensive experience in precision cutting tools, Conquer delivers reliable and high-performance solutions for modern machining applications. Our router bits are designed for woodworking and panel processing, combining durable materials, precision manufacturing, and consistent results. Trusted by professionals and hobbyists alike, they provide clean, smooth, and efficient cutting for industrial production, custom furniture, and DIY projects.
