CHP-PCD537X - PCD Raised Panel Router Bit

Product Overview

Conquer High Precision Tools manufactures high-performance PCD router bits engineered for exceptional wear resistance, extended tool life, and consistent machining performance.

Each bit features a hardened high-strength steel body combined with premium polycrystalline diamond (PCD) cutting edges for superior edge retention, outstanding durability, and stable cutting quality in demanding machining environments. Advanced brazing technology ensures secure PCD tip bonding, excellent thermal stability, and reliable long-term performance. Suitable for industrial woodworking, laminated materials, abrasive composite materials, plastics, and non-ferrous metal machining applications.

CHP-PCD537X - PCD Raised Panel Router Bit is a precision cutting tool designed for ultra-long service life, high machining efficiency, and consistent routing performance in professional and industrial machining applications.

Suitable Materials

Wood and Wood-Based Materials: Solid wood, softwood, hardwood, plywood, MDF, HDF, particleboard, melamine boards, laminated panels, veneer

Engineered and Laminated Surfaces: HPL (High-Pressure Laminate), CPL (Continuous Pressure Laminate), compact laminate, phenolic resin panels

Abrasive and Composite Materials: Fiber-reinforced composite materials, abrasive panels, artificial stone, solid surface materials, composite or synthetic panels

Plastics and Non-Metallic Materials: Acrylic, PVC, polycarbonate (PC), PETG, engineering plastics, composite plastics

Non-Ferrous Metals: Aluminum, brass, copper, bronze

Get a Quote

Technical Specifications

CHP-PCD537X - PCD Raised Panel Router Bit

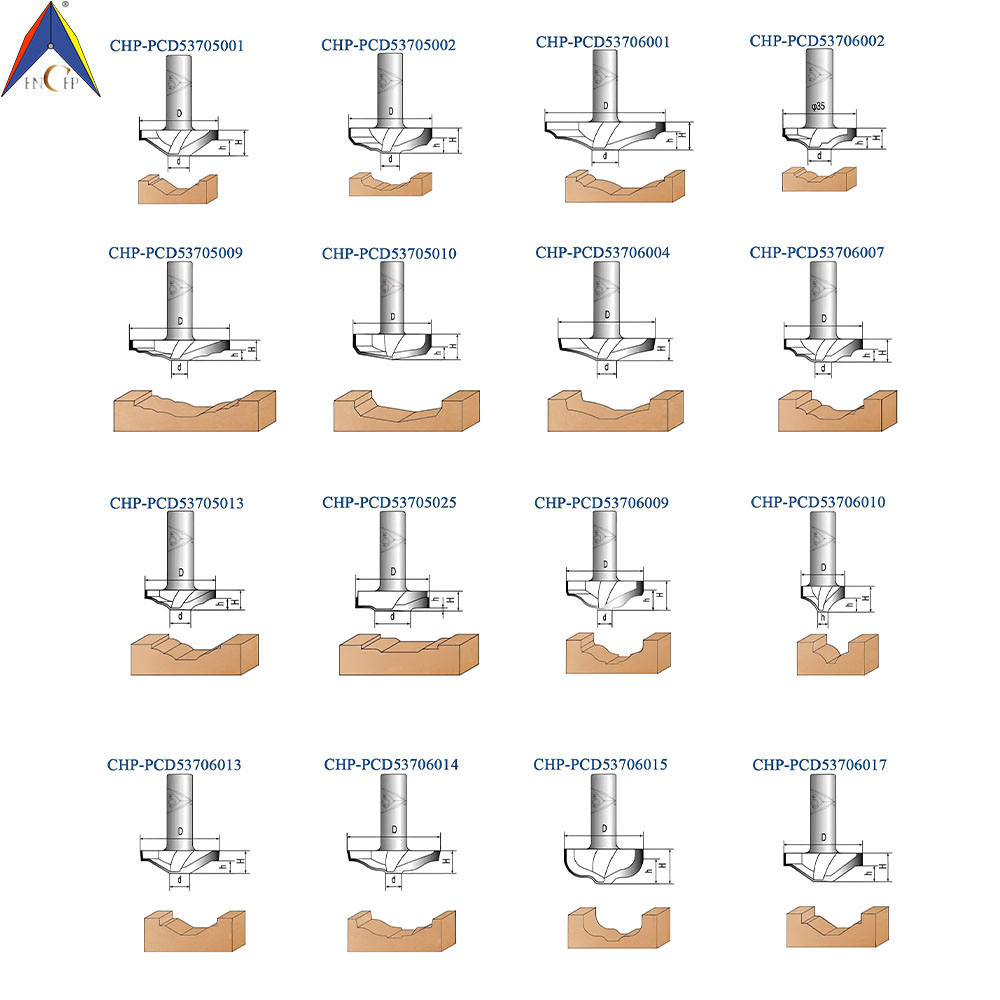

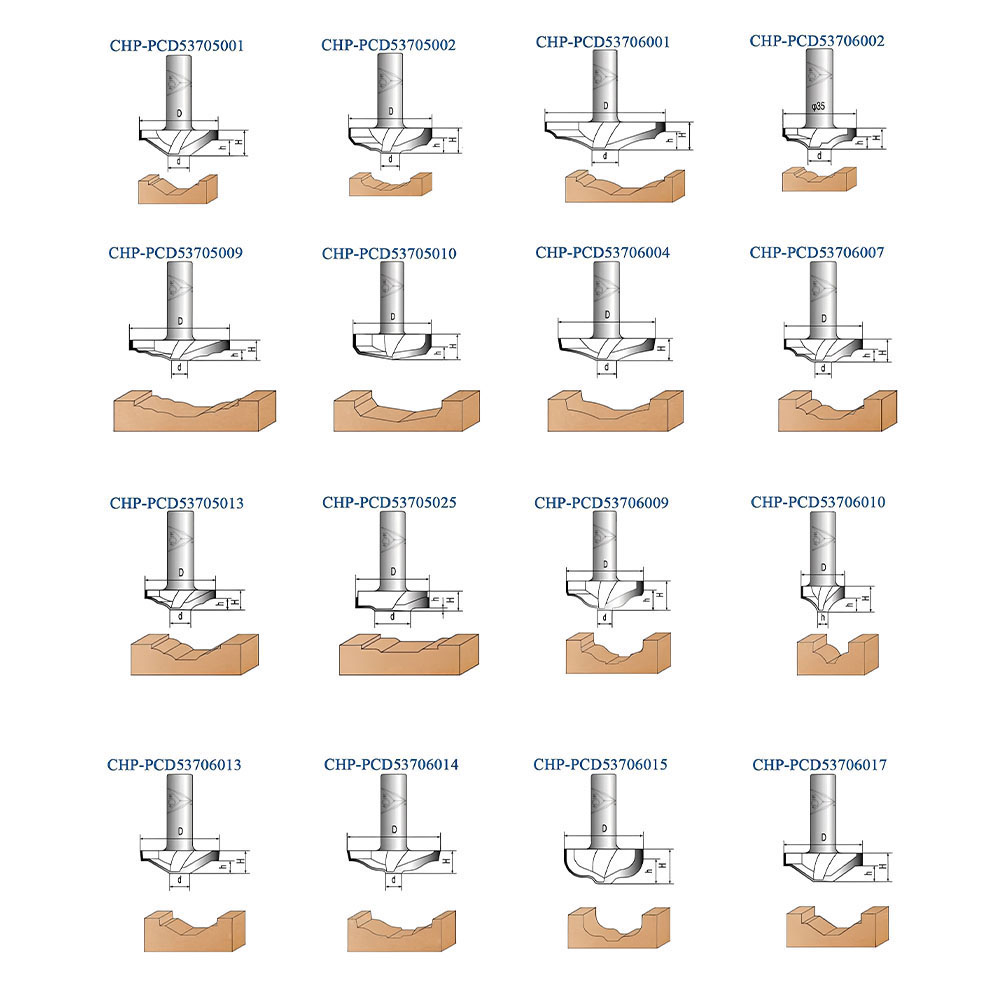

Part No.	Specifications	Z	D	d	H	h
CHP-PCD53705001	1/2×40.00	2	40.00	11.00	13.00	8.00
CHP-PCD53705002	1/2×42.40	2	42.40	9.40	12.80	7.80
CHP-PCD53705009	1/2×51.00	2	51.00	8.20	10.40	5.40
CHP-PCD53705010	1/2×43.00	2	43.00	---	14.00	7.00
CHP-PCD53705013	1/2×34.00	2	34.00	10.00	9.50	5.50
CHP-PCD53705025	1/2×35.00	2	35.00	17.00	9.50	1.50
CHP-PCD53706001	1/2×63.50	2	63.50	14.00	14.70	9.70
CHP-PCD53706002	1/2×35.00	2	35.00	11.00	10.00	9.00
CHP-PCD53706004	1/2×48.00	2	48.00	9.80	11.00	11.00
CHP-PCD53706007	1/2×38.40	2	38.40	8.00	11.30	6.30
CHP-PCD53706009	1/2×42.00	2	42.00	8.00	16.00	11.00
CHP-PCD53706010	1/2×22.20	2	22.20	5.20	13.20	7.10
CHP-PCD53706013	1/2×39.40	2	39.40	10.00	11.30	6.30
CHP-PCD53706014	1/2×46.30	2	46.30	8.00	11.30	11.30
CHP-PCD53706015	1/2×40.00	2	40.00	5.40	17.70	12.70
CHP-PCD53706017	1/2×40.00	2	40.00	10.00	14.50	8.00
CHP-PCD53706018	1/2×38.40	2	38.40	8.00	11.30	6.30
CHP-PCD53706021	1/2×37.50	2	37.50	9.50	11.00	6.00
CHP-PCD53707001	1/2×42.00	2	42.00	12.00	12.00	7.00
CHP-PCD53707006	1/2×38.00	2	38.00	13.00	9.00	4.00
CHP-PCD53722807	1/2×30.00	2	30.00	10.00	9.00	4.00
CHP-PCD53722816	1/2×40.00	2	40.00	14.00	10.00	4.00
CHP-PCD53726456	1/2×35.00	2	35.00	10.00	12.50	7.00
CHP-PCD53726463	1/2×30.00	2	30.00	15.00	6.00	4.50
CHP-PCD53727426	1/2×42.00	2	42.00	12.00	12.50	9.00
CHP-PCD53727427	1/2×35.00	2	35.00	12.00	12.50	7.50
CHP-PCD53730799	1/2×35.00	2	35.00	11.00	10.00	5.20
CHP-PCD53730800	1/2×40.00	2	40.00	14.00	10.00	5.20
CHP-PCD53730807	1/2×30.00	2	30.00	10.00	10.00	5.00
CHP-PCD53730808	1/2×35.00	2	35.00	14.00	10.00	5.00
CHP-PCD53730809	1/2×40.00	2	40.00	18.00	10.00	6.00
CHP-PCD53730826	1/2×35.00	2	35.00	11.00	10.00	5.00

Note: Beyond standard listed specs, all sizes, geometries, and profiles are fully customizable to meet specific project requirements. Contact us to discuss your custom specifications.

Applications and Industries

Woodworking and Joinery

Professional Woodworking Workshops

Custom Furniture Production

Cabinetmaking and Joinery
CNC Routing and Panel Processing

Nested-Based CNC Machining

Industrial Panel Processing

Continuous Production Routing Operations

Precision Profiling of Wood-Based Materials
Laminated and Abrasive Material Processing

Melamine and Laminate Processing

Composite Material Machining

High-Wear Material Routing Applications
Signage and Decorative Projects

Sign Making and Lettering

Decorative Panel Fabrication

Architectural Moldings and Trim
Industrial Manufacturing Applications

Industrial Furniture Manufacturing

Large-Scale Production Routing

High-Speed CNC Machining Operations

CHP-PCD537X - PCD Raised Panel Router Bit: Suitable for routing, carving, profiling, and shaping operations across woodworking, laminated materials, abrasive composites, plastics, and non-ferrous metal machining applications.

Key Features and Construction

PCD Cutting Technology: Premium polycrystalline diamond (PCD) cutting edges provide exceptional wear resistance, superior edge retention, and ultra-long tool life
Cutting Performance: High-performance PCD cutting geometry delivers clean cutting results, stable machining quality, and excellent surface finish consistency
Edge Precision: Multi-stage precision grinding technology ensures high edge quality, accurate dimensions, and reliable machining accuracy
Structural Strength: Heat-treated high-strength steel body delivers excellent durability, rigidity, and effective vibration resistance during high-speed machining
Operational Stability: Precision-balanced tool body reduces vibration and supports smooth and stable operation at high spindle speeds
Advanced Brazing Technology: High-strength brazing process ensures secure PCD tip bonding, reliable thermal stability, and long-term machining performance
Shank Precision: H7 precision-ground shank guarantees accurate machine fit, high concentricity, and stable cutting performance
Long-Life Tool Design: PCD cutting edges maintain sharpness significantly longer than conventional carbide tooling in abrasive material applications
Customization Capability: Custom tool geometries, PCD tip configurations, and dimensions are available to meet specialized machining requirements
Surface Finish Options: Tool bodies can be color-coated (e.g., red, white, black, cherry) or sandblasted for improved durability and professional appearance
Packaging Options: Products are supplied in wooden boxes, plastic cases, or reinforced cartons according to order requirements

Machine Compatibility

Engineered for Use on the Following Machines (Depending on Bit Type and Safety Rating):

CNC Routers and Nested-Based CNC Machining Centers: Suitable for industrial routing, panel processing, and high-volume production machining applications
Table-Mounted Router Tables (Router Lifts / Fences): Ideal for professional edge profiling and controlled routing operations
Industrial CNC Processing Equipment: Suitable for continuous production environments, automated panel processing, and precision profiling operations
Compact / Benchtop CNC Routers: Suitable for professional workshops, precision machining environments, and advanced routing applications
Other Routing and Processing Equipment: Compatible with various routing, profiling, and panel processing machines where appropriate
Note: Some PCD tool profiles are designed primarily for CNC or table-mounted operation. Always follow recommended operating parameters, safety ratings, and machining guidelines.

Key Advantages

Exceptional Wear Resistance: Premium PCD cutting edges provide outstanding resistance to wear and abrasion in demanding machining applications
Ultra-Long Tool Service Life: PCD tooling delivers significantly longer cutting life compared with conventional carbide router bits
Superior Edge Retention: PCD cutting edges maintain sharpness for extended production runs and continuous machining operations
Reduced Tool Change Downtime: Extended tool life reduces machine stoppages and improves overall production efficiency
Consistent Machining Quality: Precision-ground PCD cutting geometry ensures stable cutting dimensions and repeatable machining accuracy
Smooth Surface Finish: High-precision cutting performance delivers clean cuts with reduced chipping, burning, and edge defects
Stable High-Speed Operation: Balanced tool body construction supports reliable machining performance at high spindle speeds
Excellent Performance on Abrasive Materials: Designed for long-term machining of laminated panels, melamine boards, composite materials, and other abrasive surfaces
Custom Tooling Solutions: Custom PCD profiles and tool configurations are available for specialized industrial machining requirements
Professional Protective Packaging: Standardized packaging ensures safe transportation and secure storage
Performance-to-Cost Efficiency: Extended tool life and reduced maintenance requirements provide excellent long-term machining value
CHP-PCD537X - PCD Raised Panel Router Bit: Engineered for exceptional wear resistance, long-term machining stability, and high-efficiency routing performance in professional and industrial CNC machining environments.
